Your TP-112HD XGA/HD Line Transmitter – DA

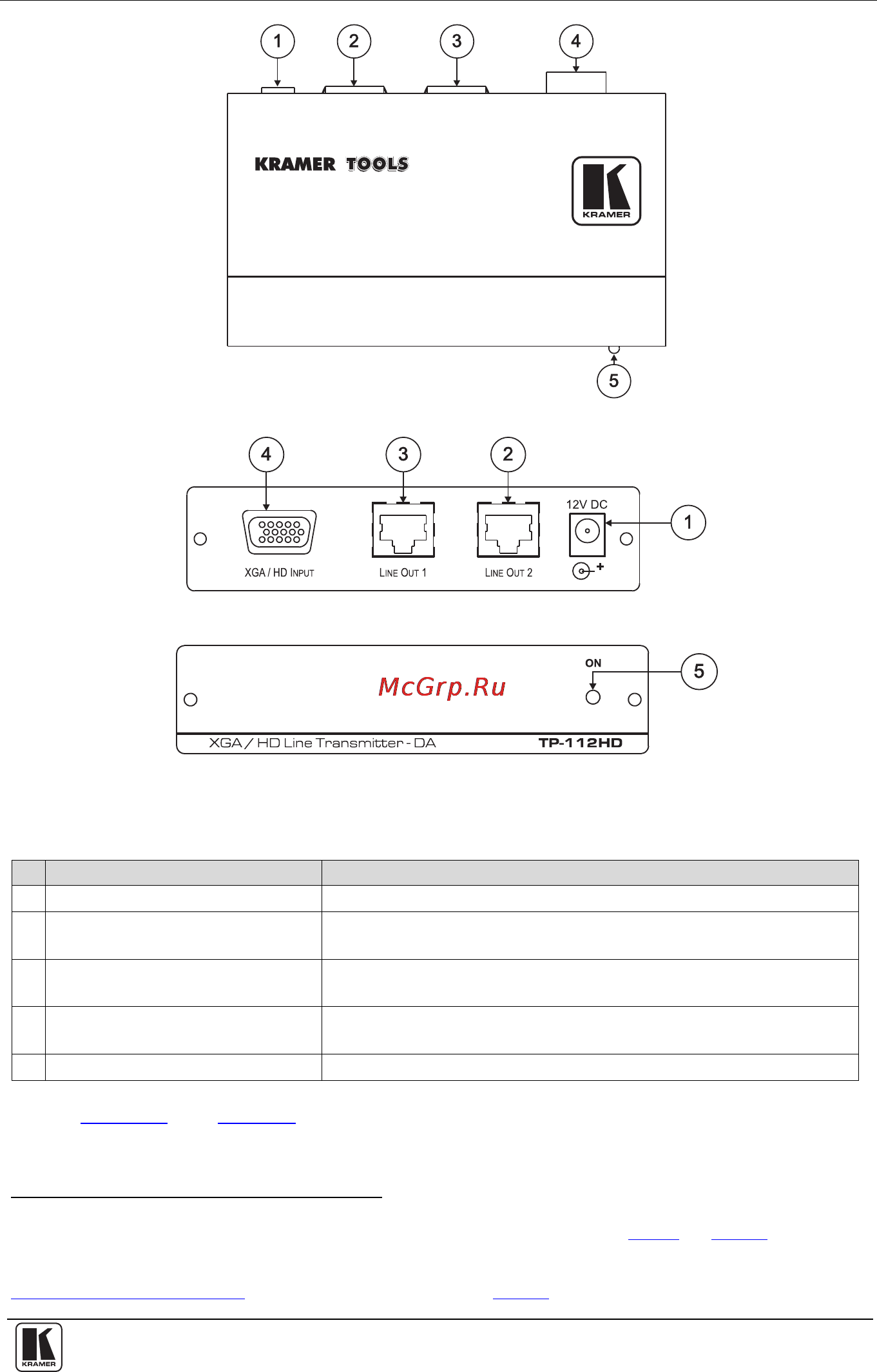

Figure 1: TP-112HD XGA/HD Line Transmitter – DA

Figure 2: TP-112HD (Top Side Panel)

Figure 3: TP-112HD (Lower Side Panel)

Table 1: TP-112HD XGA/HD Line Transmitter - DA Features

# Feature Function

12V DC

+12V DC connector for powering the unit

2 LINE OUT 2 RJ-45 Connector Connects to

the LINE IN RJ-45 connector on the (second)

TP-120 XGA Line Receiver

3 LINE OUT 1 RJ-45 Connector Connects to

the LINE IN RJ-45 connector on the (first) TP-120

XGA Line Receiver

4 XGA/HD INPUT 15-pin HD

Connector

Connect to the XGA source

5 ON LED Illuminates when receiving power

Figure 4 and Table 2 define the TP-112HD underside panel:

1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 6)

2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be the Internet at:

http://www.kramerelectronics.com

. Also, see the example illustrated in Figure 5
