Kramer WP-562 [13/22] Figure 6 wp 562 hdmi line receiver us model functions

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your WP-561, WP-562 HDMI Transmitter/Receiver Pair

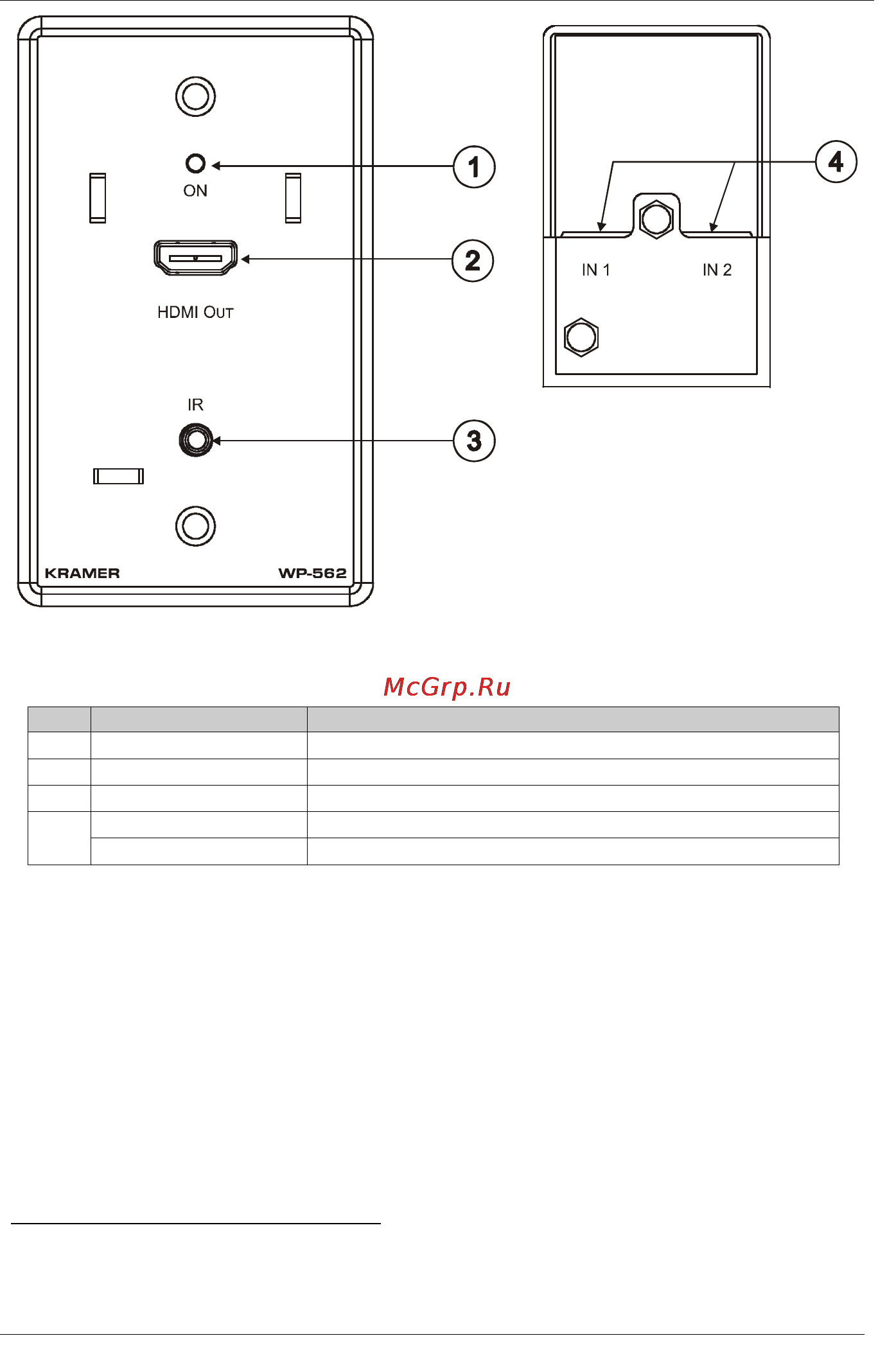

Figure 6: WP-562 HDMI Line Receiver US Model Functions

Table 2: WP-562 HDMI Line Receiver Functions

# Feature Function

1 ON LED Illuminates red when powered on, green when transmitting data

2 HDMI OUT Connector Connects to an HDMI acceptor

3 IR 3.5mm Mini Jack Connects to an IR transmitter or IR receiver

4 IN 1 Connector Connects to the OUT 1 RJ-45 connector on the WP-561

IN 2 Connector Connects to the OUT 2 RJ-45 connector on the WP-561

1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or

C-A35M/2IRE
