Kramer WP-562 [16/22] Figure 8 and table 4 define the pt 562

Your PT-561, PT-562 HDMI Transmitter/Receiver Pair

6.2 Your PT-562 HDMI Line Receiver

Figure 8

and Table 4 define the PT-562:

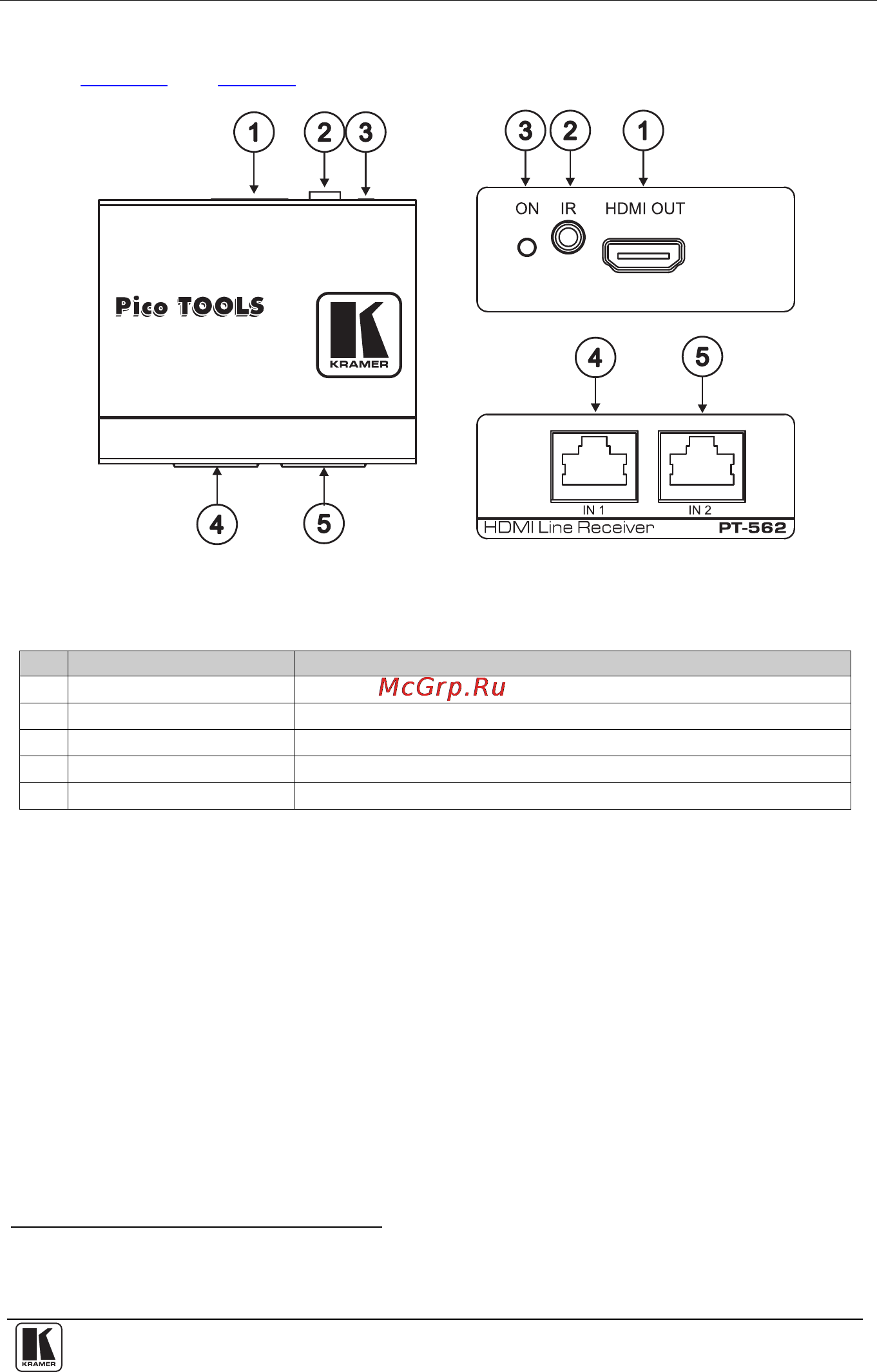

Figure 8: PT-562 HDMI Line Receiver

Table 4: PT-562 HDMI Line Receiver Features

# Feature Function

1 HDMI OUT Connector Connect to the HDMI acceptor

2 IR 3.5mm jack Connects to an infrared transmitter or receiver

3 ON LED Illuminates red when powered on, green when transmitting data

4 IN 1 RJ-45 Connector Connect to the OUT 1 RJ-45 connector on the PT-561

5 IN 2 RJ-45 Connector Connect to the OUT 2 RJ-45 connector on the PT-561

1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or

C-A35M/2IRE
