3 Interfacing

The microphone uses a true

condenser transducer designed for 48-

volt phantom powering to DIN 45 596/

IEC 268-15. Neither the diaphragm nor

the backplate are permanently polarized,

so the microphone needs an external

power supply.

The microphone provides a balanced

output on a 3-pin male XLR connector:

Pin 1: ground

3.3 Connecting the Microphone

Refer to fig. 2 below.

1. Use an XLR cable to connect the

microphone to a balanced XLR input

with phantom power.

2. Switch the phantom power on. (Refer

to the user manual of the unit to which

you connected your microphone.)

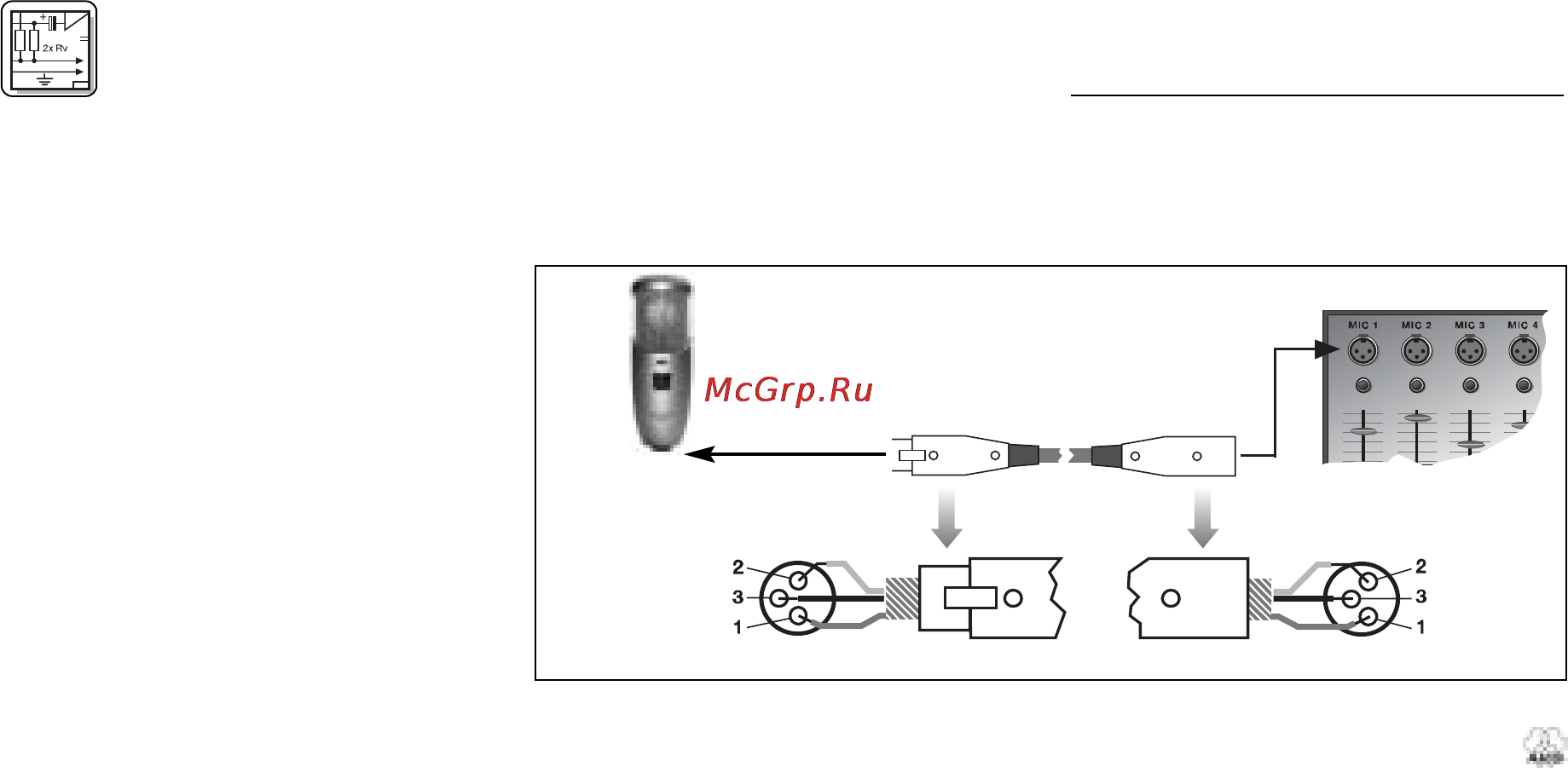

Fig. 2: Connecting to a balanced input with phantom power.
