613T, 613R - Overview

3.1 Defining the 613T, 613R 3G HD-SDI Mini Optical

Transmitter/Receiver

This section defines the 613T, 613R.

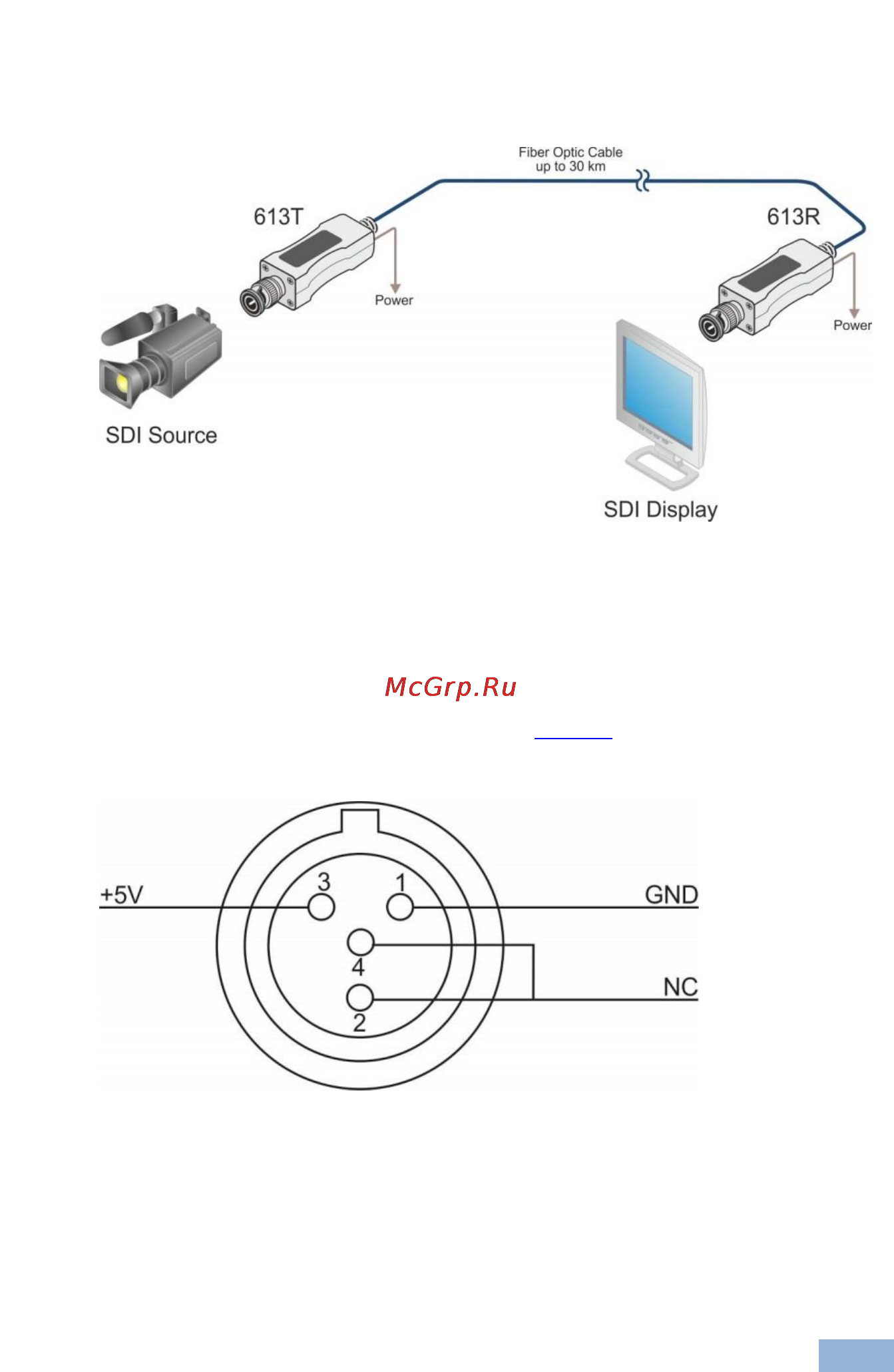

Figure 1: 613T, 613R 3G HD-SDI Mini Optical Transmitter/Receiver

3.2 Powering the 613T, 613R

Your 613T/613R pair comes with two 5V DC power adapters. Both units need to

be connected to their external power adapter. Figure 2 illustrates the power

connector pinout:

Figure 2: Power Connector Pinout
