The Kramer VA-10 Cable Delay Corrector is a cable delay (skew) corrector for RGB

signals. The unit is designed to correct the problem of differing delay times in

analog signals, such as RGB, or twisted pair signals that causes misconvergence

on the display. The VA-10 lets you adjust and thus match the delays in the three

signals. The VA-10 features controls for adjusting the red, green and blue skew

(delay) individually and independently. It is 12V DC fed and is housed in a Kramer

TOOLS enclosure.

For example, if the RGB was sent via a CAT 5 cable at some stage during the video

processing, then the different lengths of the pairs within the CAT 5 cable create different

delays (skewing) of the R, G and B.

3.1 Defining the VA-10 Cable Delay Corrector

This section defines the VA-10.

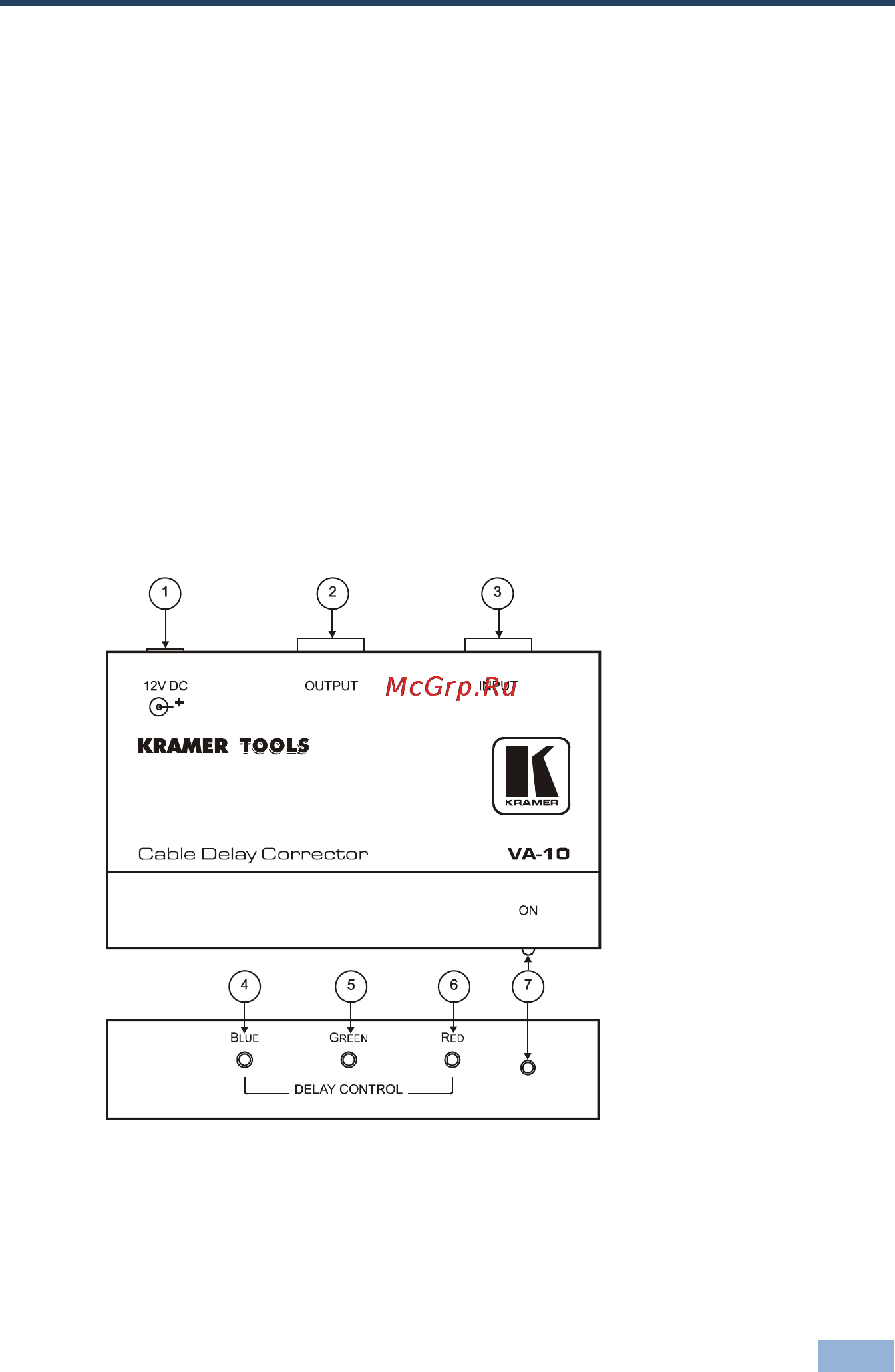

Figure 1: VA-10 Cable Delay Corrector
