The Kramer T3F-13Inner Frame

Congratulations on purchasing your Kramer T3F-13inner frame for the TBUS-3xl Table

Connection bus.

The T3F-13 inner frame includes:

 An opening for 1 power socket

 1 cable pass-through insert

 2 blank inserts

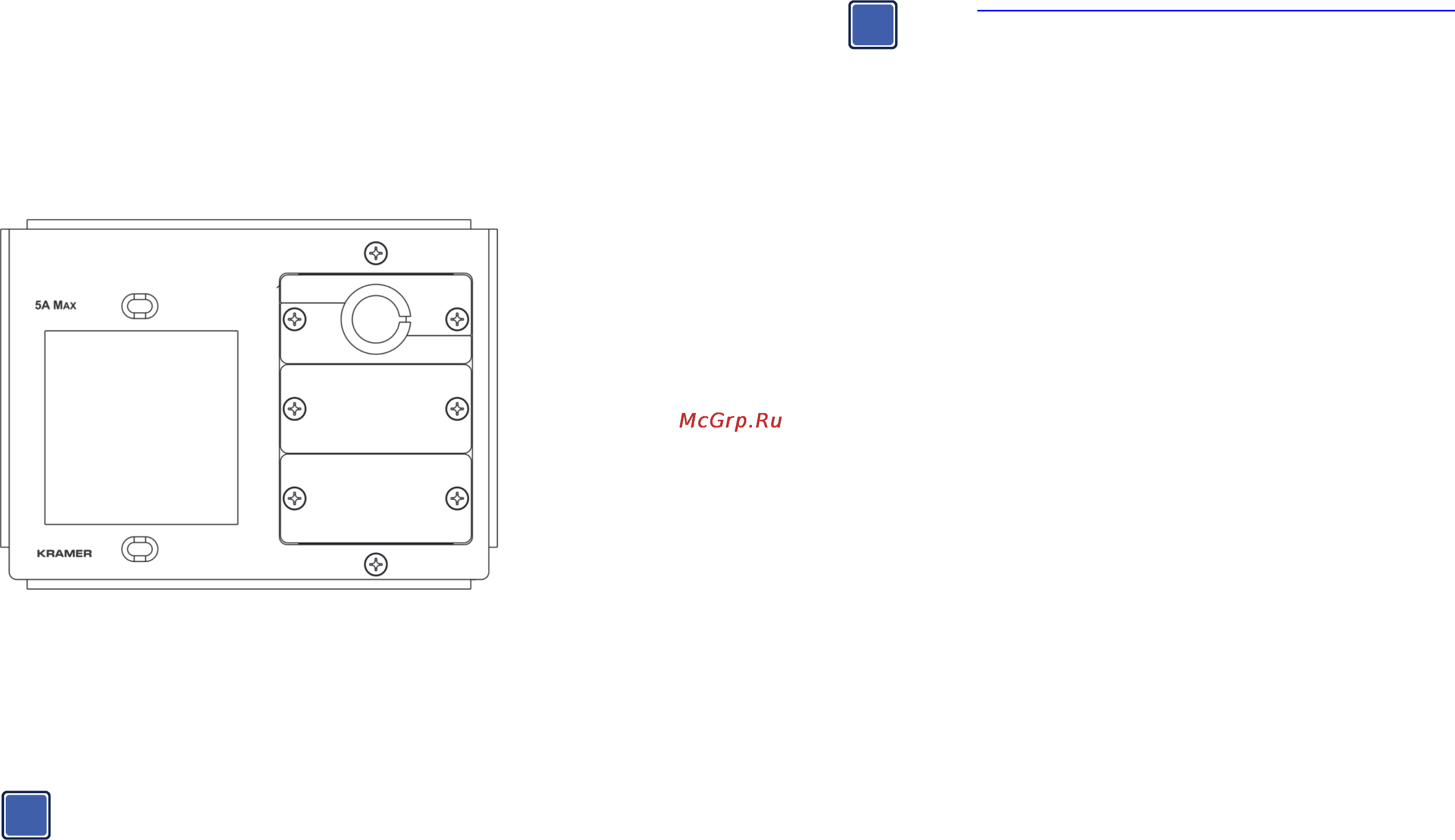

Figure 1: T3F-13Inner Frame (P/N: 80-003099)

Power Socket and Power Cord Options

Various power sockets and power cords are available to use with the T3F-13, as described in the

“TBUS Modular Power Socket Installation and Power Cord” Installation Instructions, supplied with

the power socket.

Each power socket comes with detailed assembly instructions.

The T-2INSERT Kit Option (80-00006699)

You can install the T-2INSERT kit (which includes 1 pass-through insert and a blank insert)

instead of a power socket.

Mounting the Inserts

Go to http://www.kramerelectronics.com/support/product_downloads.asp to

check for up-to-date user manuals and the complete list of Kramer wall plates

and module connectors.

You can rearrange or remove any of the plates mounted on the inner frame and replace them

with Kramer passive wall plates or connector modules for interfacing A/V type signals.

To mount a Kramer insert or connector module:

1. Unscrew the two screws that fasten the blank plate to the inner frame and remove the

blank plate.

2. Place the required Kramer insert over the opening, insert the two screws to fix the Kramer

insert in place, and tighten them.

Installing the assembled Inner Frame

To install the T3F-13inner frame:

1. Place the assembled inner frame inside the TBUS-3xl enclosure.

2. Set the required height using your fingers to bring the inner frame to the desired position,

screw and tighten it in place using the height adjustment screws supplied with the inner

frame.

Connecting the Cables

When replacing blank inserts with connector inserts (for example, VGA, audio, HDMI and so on):

1. Insert the cables to their appropriate connectors from underneath.

2. Secure the cables to the tie holes on the TBUS-3xl.

Do not secure the cables too tightly or too loosely. Leave a small amount of slack.

After the TBUS-3xl is connected to mains power and the proper cables, it is ready for use.
