The Kramer T10F-22M Inner Frame

Congratulations on purchasing your Kramer T10F-22M Inner Frame for the TBUS-10XL Table

Connection bus.

The T10F-22M Inner Frame includes:

• An opening for 1 SID-X1 or other MegaTOOL

• 2 power socket openings

• 1 blank insert

• 1 pass through

insert

Note that you can install the optional T-2INSERT (P/N: 80-00006699) inside

a single power socket opening.

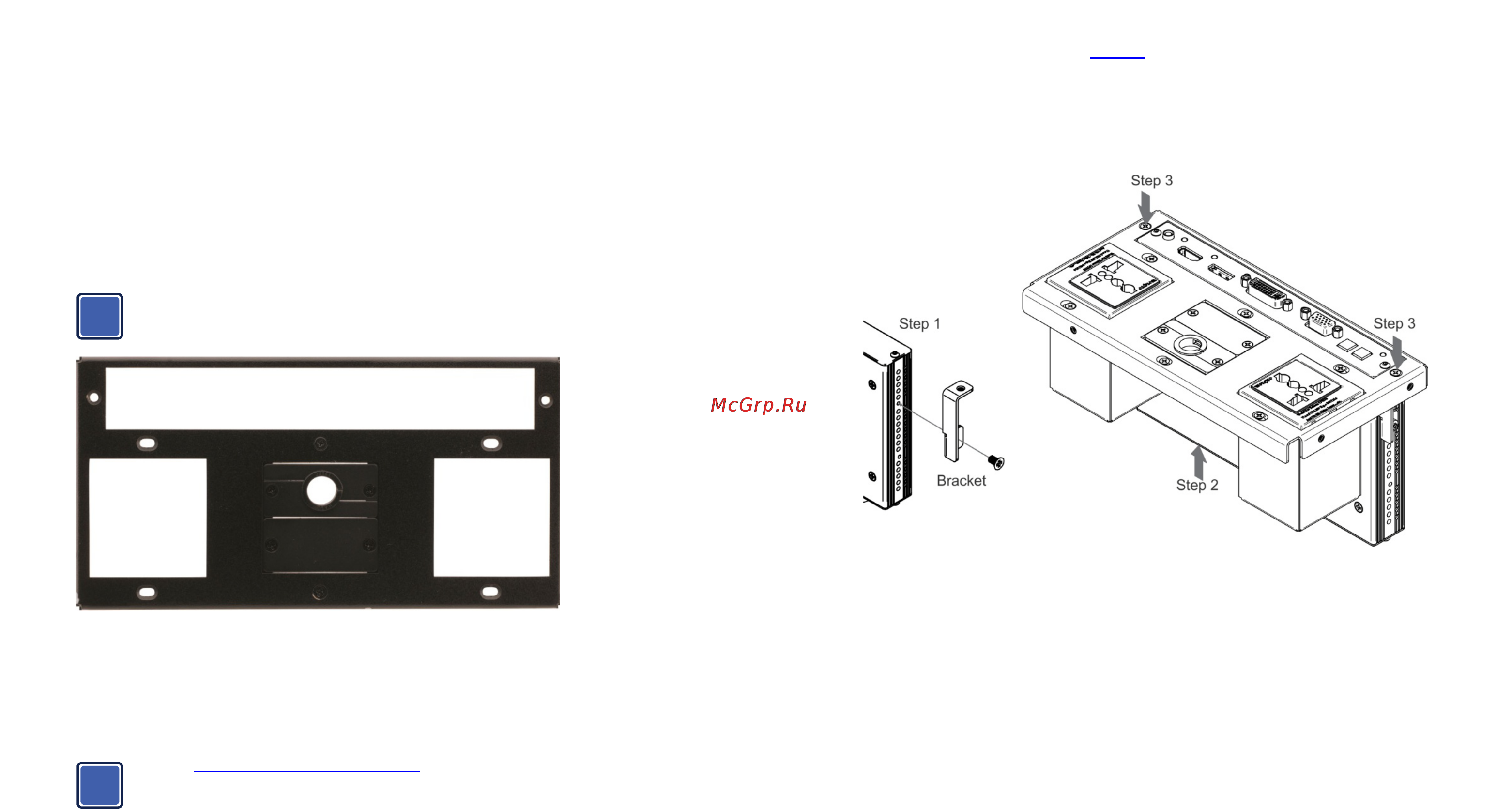

Figure 1: T10F-22M Inner Frame (P/N: 80-000028)

Installing the Wall Plate Inserts

Before installing the inner frame, you need to install wall plate inserts.

Go to http://www.kramerelectronics.com to check for up-to-date user

manuals and the complete list of Kramer wall plate inserts and module

connectors.

You can rearrange or remove any of the blank inserts mounted on the inner frame and replace

them with Kramer wall plate inserts or connector modules for interfacing A/V type signals.

To mount a Kramer insert or connector module:

1. Unscrew the two screws that fasten the blank insert to the inner frame and remove the

blank insert.

2. Place the required Kramer wall plate insert over the opening, insert the two screws to fix

the Kramer insert in place, and tighten them.

Installing the SID-X1 or other MegaTOOL

To install the SID-X1, as shown in Figure 2:

1. Fasten each of the supplied TOOL brackets to their location (one on each side).

2. Insert the SID-X1, from underneath, through the MegaTOOL opening.

3. Fasten the screws (one on each side) through the inner frame holes and TOOL brackets.

Figure 2: Installing the SID-X1

Installing the Inner Frame

To install the T10F-22M inner frame:

1. Place the assembled inner frame inside the TBUS-10XL enclosure.

2. Set the required height using your fingers to bring the inner frame to the desired position,

and then screw and tighten it in place using the height adjustment screws supplied with the

inner frame.
