PT-110xl, WP-110, PT-120xl, TP-120 - PT-120xl XGA Line Receiver
11
5 PT-120xl XGA Line Receiver
The Kramer Pico TOOLS PT-120xl is an XGA line receiver that receives a coded
CAT 5 signal transmitted by the WP-110, decodes it and converts it to an XGA
output. In particular, the PT-120xl features:
An operating range of up to 250m (820ft) using standard CAT 5 cable and
the PT-110xl
EQ. and level controls
Power Connect and is 12V DC fed
An increased level of protection against noise, spikes and interference in
adverse environments when using an xl transmitter
5.1 Your PT-120xl XGA Line Receiver

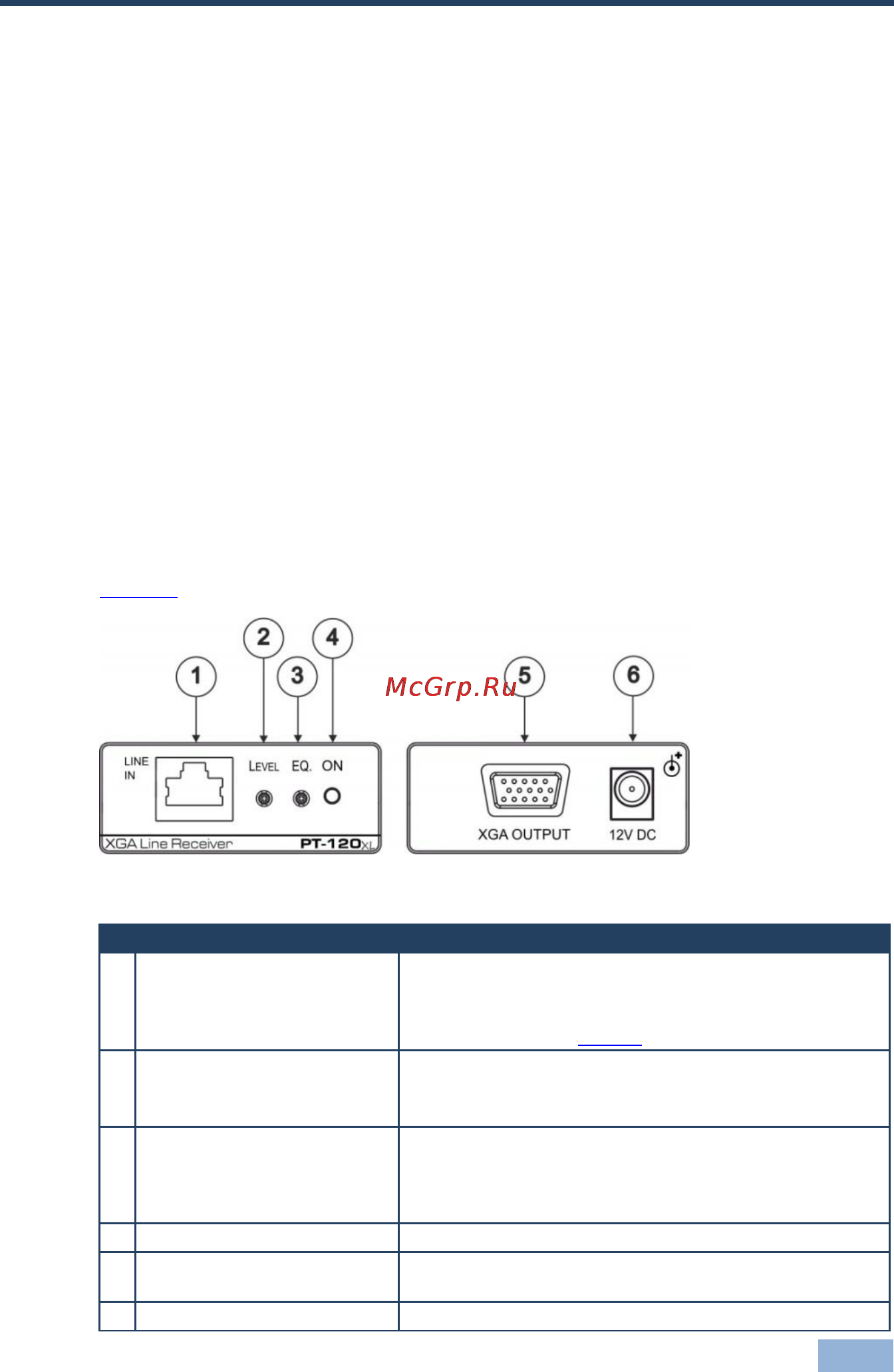

Figure 5 defines the PT-120xl XGA Line Receiver:
Figure 5: PT-120xl XGA Line Receiver
#
Feature
Function
1
LINE IN RJ-45 Connector
Connects to the LINE OUT RJ-45 connector on the
WP-110 XGA Line Receiver
Using a UTP cable with CAT 5 connectors at both ends (the
PINOUT is defined in Figure 8)
2
LEVEL Trimmer
Adjusts the output signal level
Use a screwdriver to carefully rotate the trimmer, adjusting
the appropriate level
3
EQ. Trimmer
Adjusts the cable compensation equalization level
Degradation and VGA/XGA signal loss can result from using
long cables (due to stray capacitance), sometimes leading
to a total loss of sharpness in high-resolution signals
4
ON LED
Illuminates when receiving power
5
XGA OUTPUT 15-pin HD (F)
Connector
Connect to the XGA acceptor
6
12V DC
+12V DC connector for powering the unit
