12
PT-110xl, WP-110, PT-120xl, TP-120 - PT-120xl XGA Line Receiver
5.2 Connecting the PT-120xl XGA Line Receiver
To connect the PT-110xl XGA Line Transmitter to the PT-120xl XGA Line
Receiver, as the example in Figure 4 illustrates, do the following:
1. On the PT-110xl, connect the XGA source (for example, the 15-pin HD
output from a computer’s graphics card) to the XGA INPUT 15-pin HD (F)
connector.
2. On the PT-120xl, connect the XGA OUT 15-pin HD (F) connector to the XGA
acceptor (for example, a monitor).
3. Connect the LINE OUTPUT RJ-45 connector on the PT-110xl to the LINE IN
RJ-45 connector on the PT -120, via UTP cabling (with a range of up to 300ft
(100m)).
4. On both the PT-110xl and the PT-120xl, connect the 12V DC power adapter
to the power socket and connect the adapter to the mains electricity.
The signal from the XGA source is transmitted via CAT 5 cable, decoded
and converted at the XGA OUT 15-pin HD (F) connector to the XGA
acceptor.
For details of the power connect feature see Section 2.4.
5. On the PT-120xl, using a screwdriver to carefully rotate the trimmer, adjust
the output signal level and/or cable compensation equalization level, if
required.

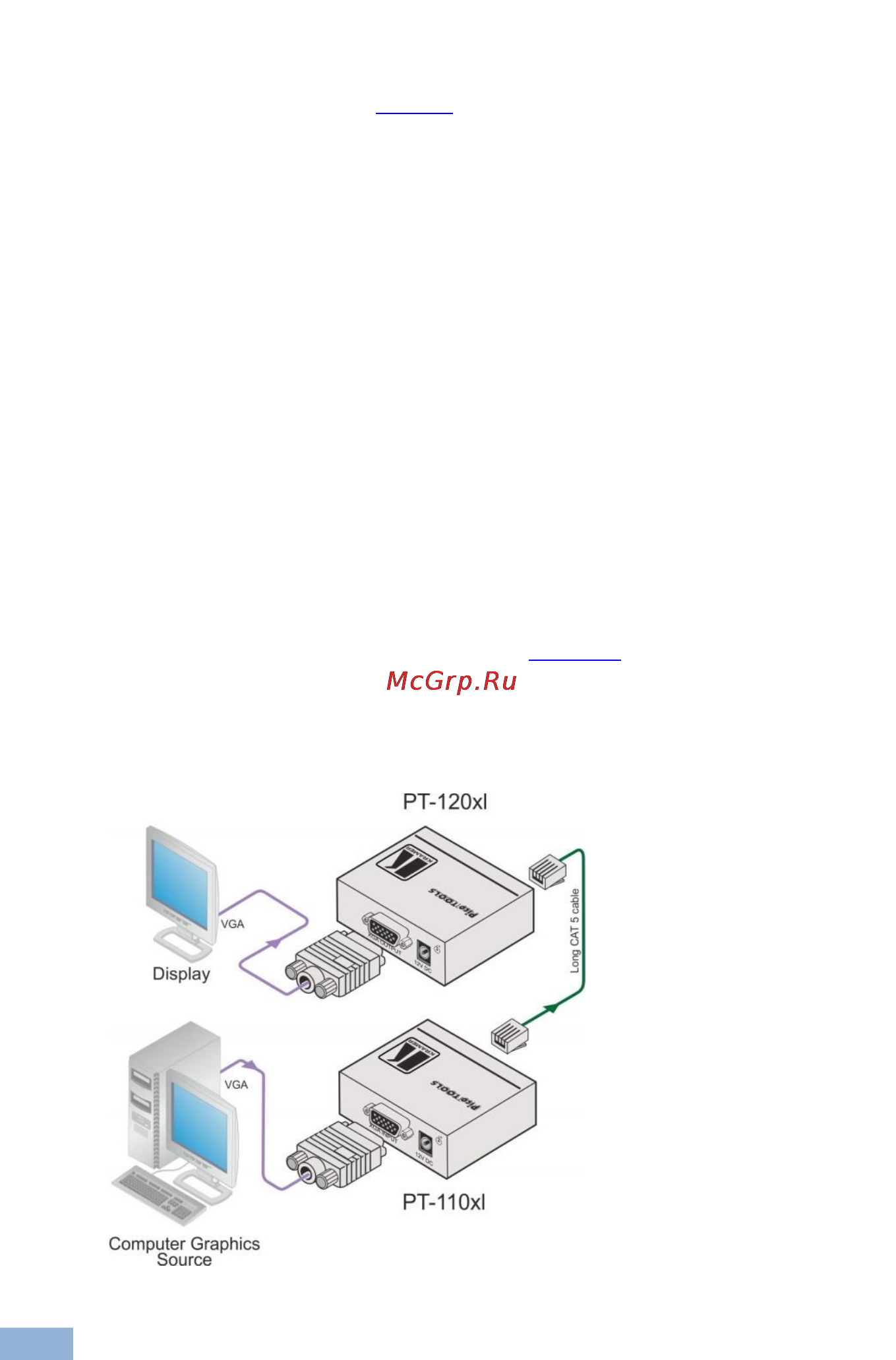

Figure 6: Connecting the PT-110xl to a PT-120xl
