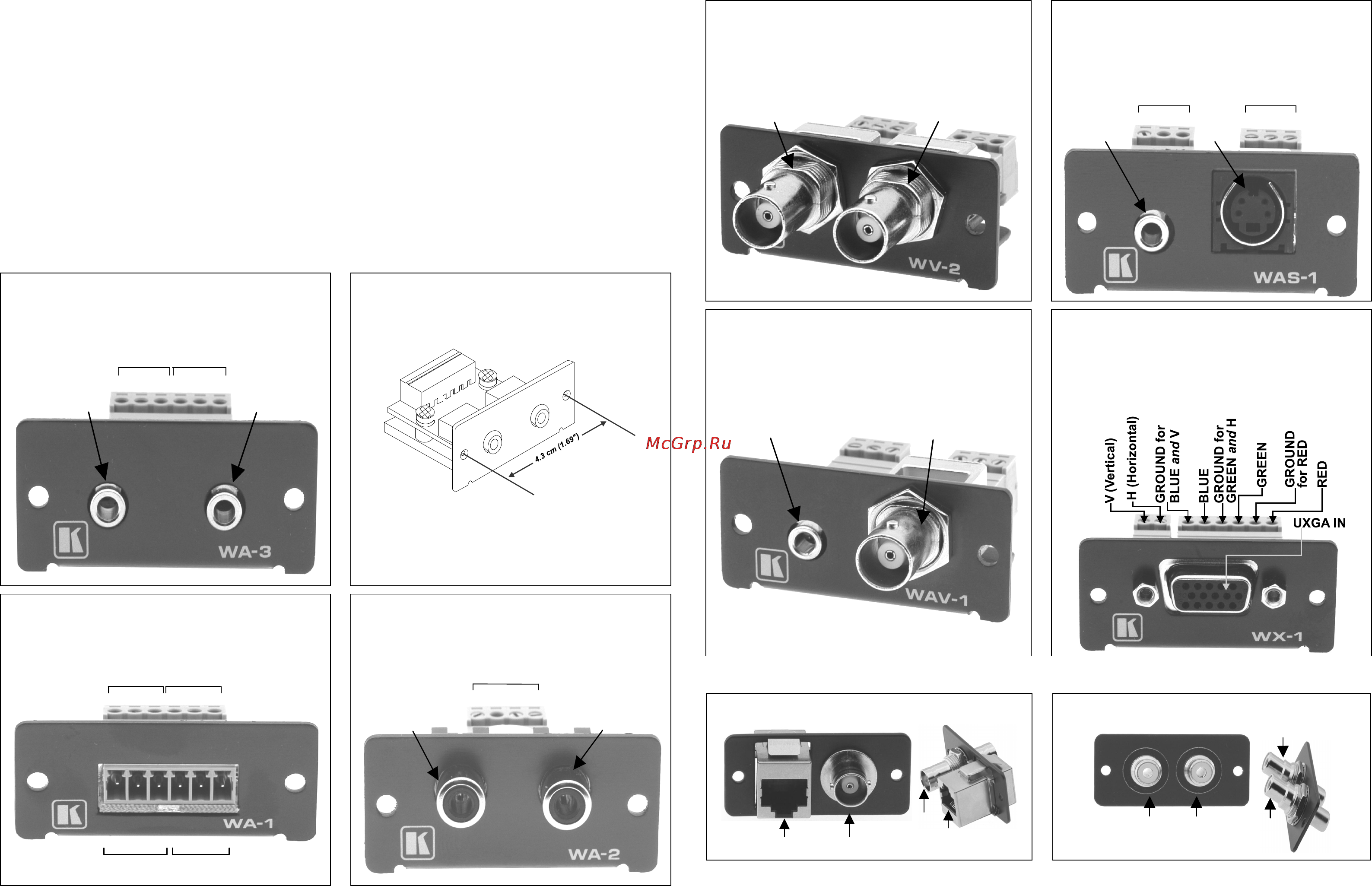

Passive WP Series (Wall Plate Devices and Connection Modules)
Congratulations on purchasing your Kramer WP Series (passive wall plate device and/or
passive connection module), which is ideal for the following applications:
Board, conference and training rooms
Presentation systems
Home theater
You can attach up to 3 of any of the devices from the passive WP Series—wall plate devices
and/or connector module devices—to work with the WP Frame, and/or the VPM-2 XGA Line
Driver wall plate. You can also include wall plate/connector module devices in the TBUS-1.
Wall Plate Devices
(WA-3, WA-1, WA-2, WV-2, WAS-1, WAV-1, WX-1)
The WA-3 is a dual 3.5mm mini headphone
connector to a 6-pole terminal block adapter
for connecting dual audio stereo channels:
3-D view of the WA-3, which is similar for
each passive wall plate device:
IN
1
IN
2
R
1
G
G
L
1
L
2
R
2
OUT
1
OUT
2
DIMENSIONS: 5.05cm x 4.7cm x 2.34cm
(1.99" x 1.85" x 0.92", W, D, H)
SPACING BETWEEN MOUNTING HOLES:
4.3cm (1.69")
The WA-1 is a 6-pole terminal block on both
sides of the adapter for connecting balanced
stereo audio:
The WA-2 is a dual RCA to 4-pole terminal
block adapter for connecting a stereo audio
signal (single stereo channel):
G
G
+
+
-
L
OUT
R O UT
G
G
+
+
-
L
IN
R IN
L
G
G
R
STEREO AUDIO OUT
L IN
R IN
The WV-2 is a dual BNC to two 3-pole
terminal block adapter for connecting two
video sources:
The WAS-1 is a 3.5 mini headphone
connector and an s-Video 4 pin connector to
two 3-pole terminal blocks for connecting
s-Video and stereo audio:
G
G
G
G
IN
1
IN
2
1
OUT
2
OUT
R
G
G
L
Y
C
STEREO OUT
SVHS
OUT
STEREO
IN
SVHS IN
Y: Luminance
C: Chrominance
The WAV-1 is a 3.5mm mini headphone and
BNC connector to two 3-pole terminal blocks
for connecting video and stereo audio:
The WX-1 is an HD15F computer
(VGA/SVGA/XGA/UXGA) video signal
connector to 6 + 2 terminal block connector
for connecting a graphics source. The device
includes an ID Bit Control Switch:
STEREO
IN
VIDEO IN
R
VIDEO
G
L
G
G
Connector Module Devices
(WB45, WRR, W1145, W4545, WBB, WBR, WR45)
The WB45 is an RJ45/BNC connector module:
The WRR is a double RCA connector module:
BNC
RJ
45
RJ45
BNC
1RCA 2RCA
1
RCA
2
RCA
Other connector module devices include the W1145 (an RJ11/RJ45 connector module), the
W4545 (a double RJ45 connector module), the WBB (a double BNC connector module), the
WBR (a BNC/RCA connector module), and the WR45 (an RJ45/RCA connector module).
