Congratulations on purchasing your Kramer Wall Plate Inserts (each is supplied with the

required screws)! They are ideal for the following applications: board, conference and training

rooms, presentation systems, and home theater. Each insert can be used with the Kramer

WP Frame or with one of our TBUS products.

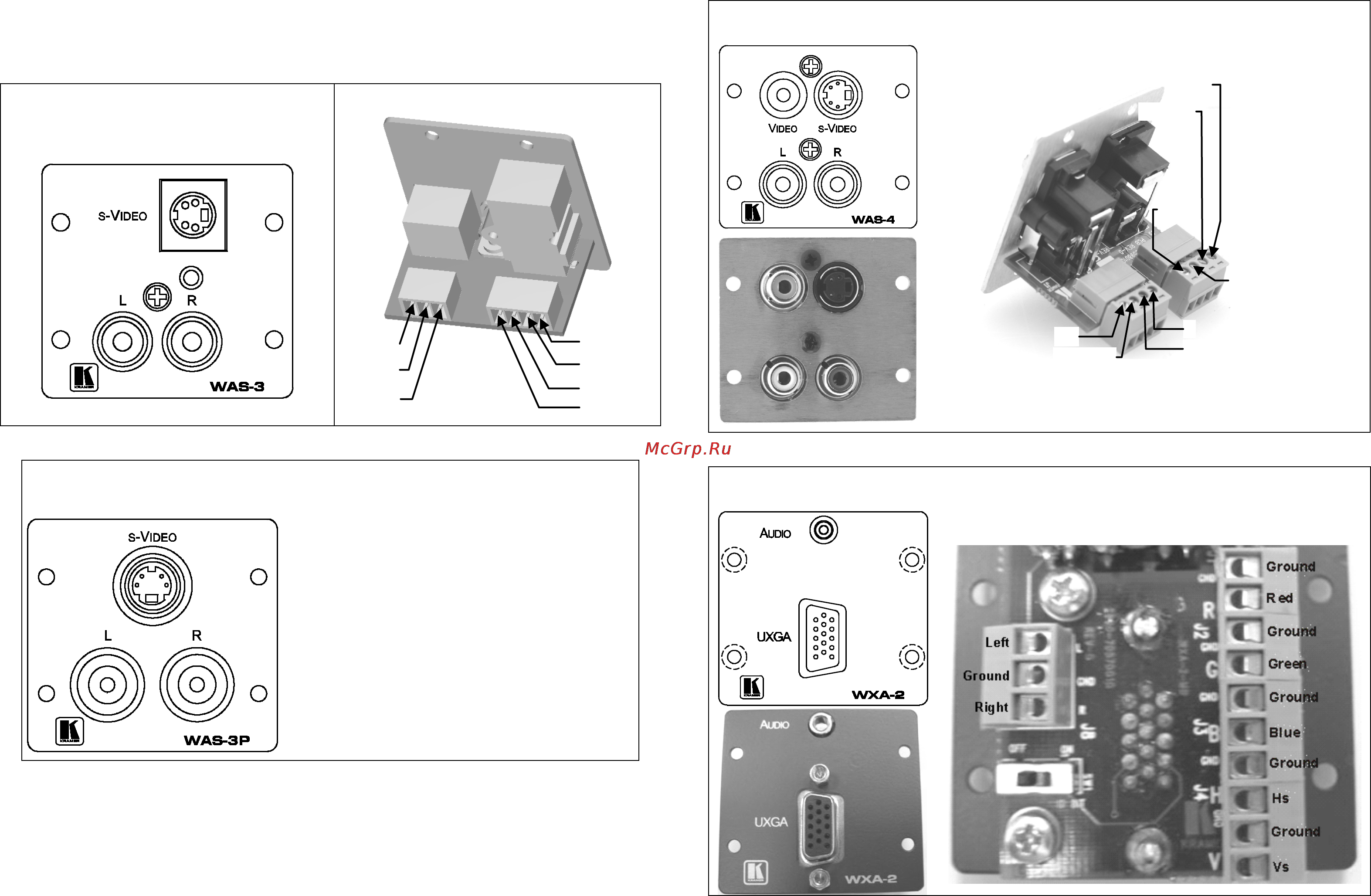

WAS-3

The WAS-3 is a dual-insert for s-Video on a

4p connector and unbalanced stereo audio on

RCA connectors (white for L and red for R).

The terminal block PINOUT is as follows:

1BWAS-3P

The WAS-3P is a dual-insert with pass through connectors for s-Video on a 4p

connector and unbalanced stereo audio on RCA connectors (white for L and red for R):

2BWAS-4

The WAS-4 is a dual-insert for video (composite or SDI) on a yellow RCA connector, s-Video on

a 4p connector, and unbalanced stereo audio on RCA connectors (white for L and red for R).

The terminal block PINOUT

is as follows:

3BWXA-2

The WXA-2 is a dual-insert for unbalanced stereo audio on a 3.5mm mini plug connector and

UXGA computer graphics on an HD15F connector.

The terminal block PINOUT is as follows:

Right

Ground

Left

Ground

Left

Right

Ground
