KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your F-021 XGA / Audio Line Amplifier Mounting Box
4
4 Your F-021 XGA / Audio Line Amplifier Mounting Box
Figure and 1 Table define the F-021: 1

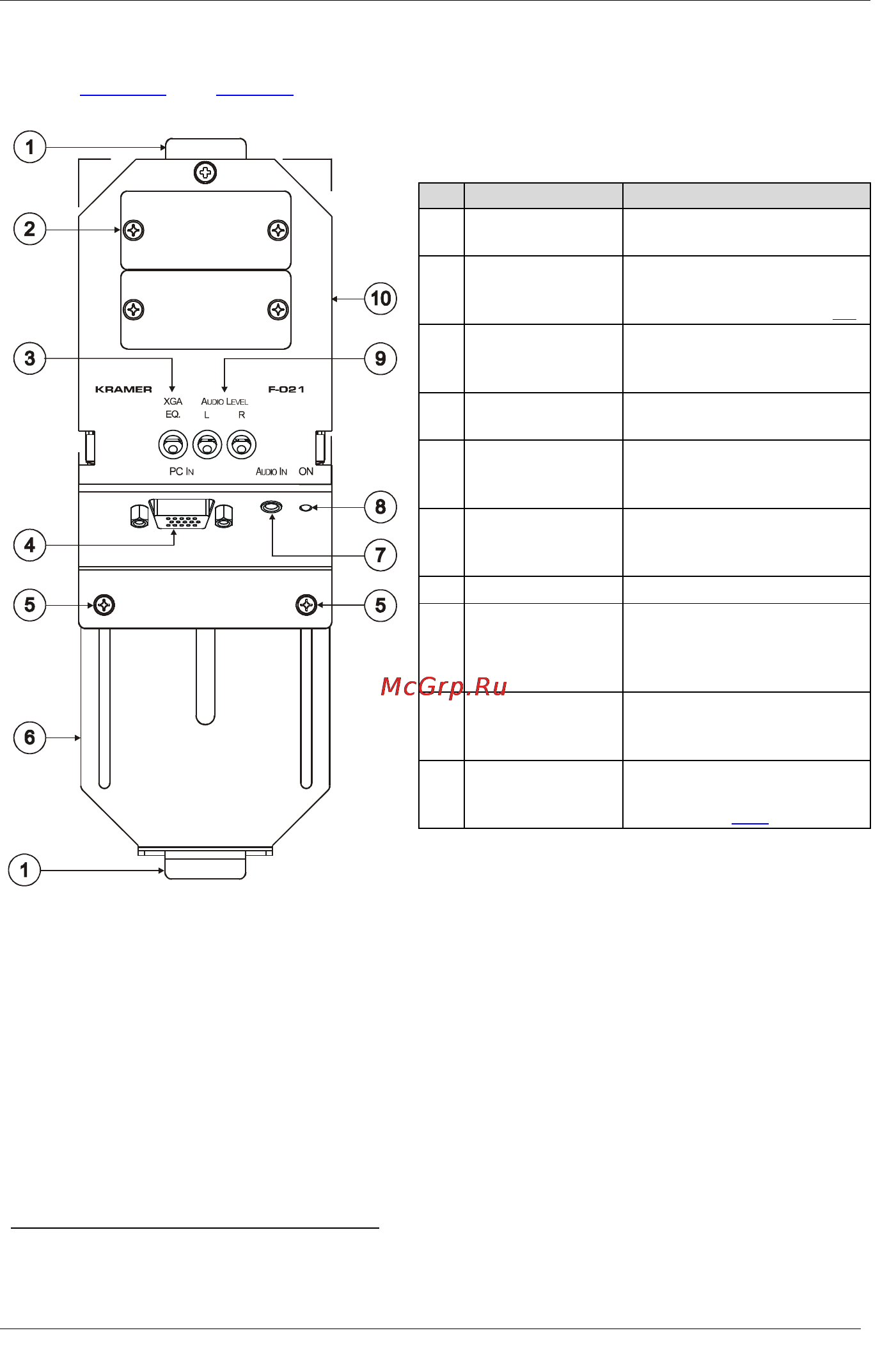

Figure 1: F-021 XGA / Audio Line
Amplifier Mounting Box
Table 1: F-021 XGA / Audio Line Amplifier
Mounting Box Features
#
Feature
Function
1 Mounting Tabs
For fitting the F-021 into an
Ackermann floor box
2 Blank Inserts (2) Cover the openings that can
be replaced with Kramer wall
plate inserts (see section
5.1)
3 XGA EQ. Trimmer Adjusts
1
4
the cable
compensation equalization
level for the output
PC IN 15-pin HD
Female Connector
Connect to the XGA source
5 Slide Screws (2) Release to increase or
decrease the length of the unit;
tighten to fix size
6 Adjustable
Mounting Slide
For adjusting the size of the
unit to fit an Ackermann floor
box
7 3.5mm Mini Jack Connect to the audio source
8 ON LED Lights red when receiving
power, lights green when
receiving a signal from a video
source
9 AUDIO LEVEL
(L, R)
Adjusts the left and right
output signal levels
separately
10 18-pin Terminal
Block Line Output
Connector
2
Connect to the line in
connector on the receiver
(see section
5.2.1)
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 Located inside the mounting box
