Mounting the 622 on the Kramer RK-622 Rack Adapter

SCREW CONUS

BLACK M3x8

SCREW CONUS

BLACK M3x8

SCREW CONUS

BLACK M3x5

622R/T (Al)

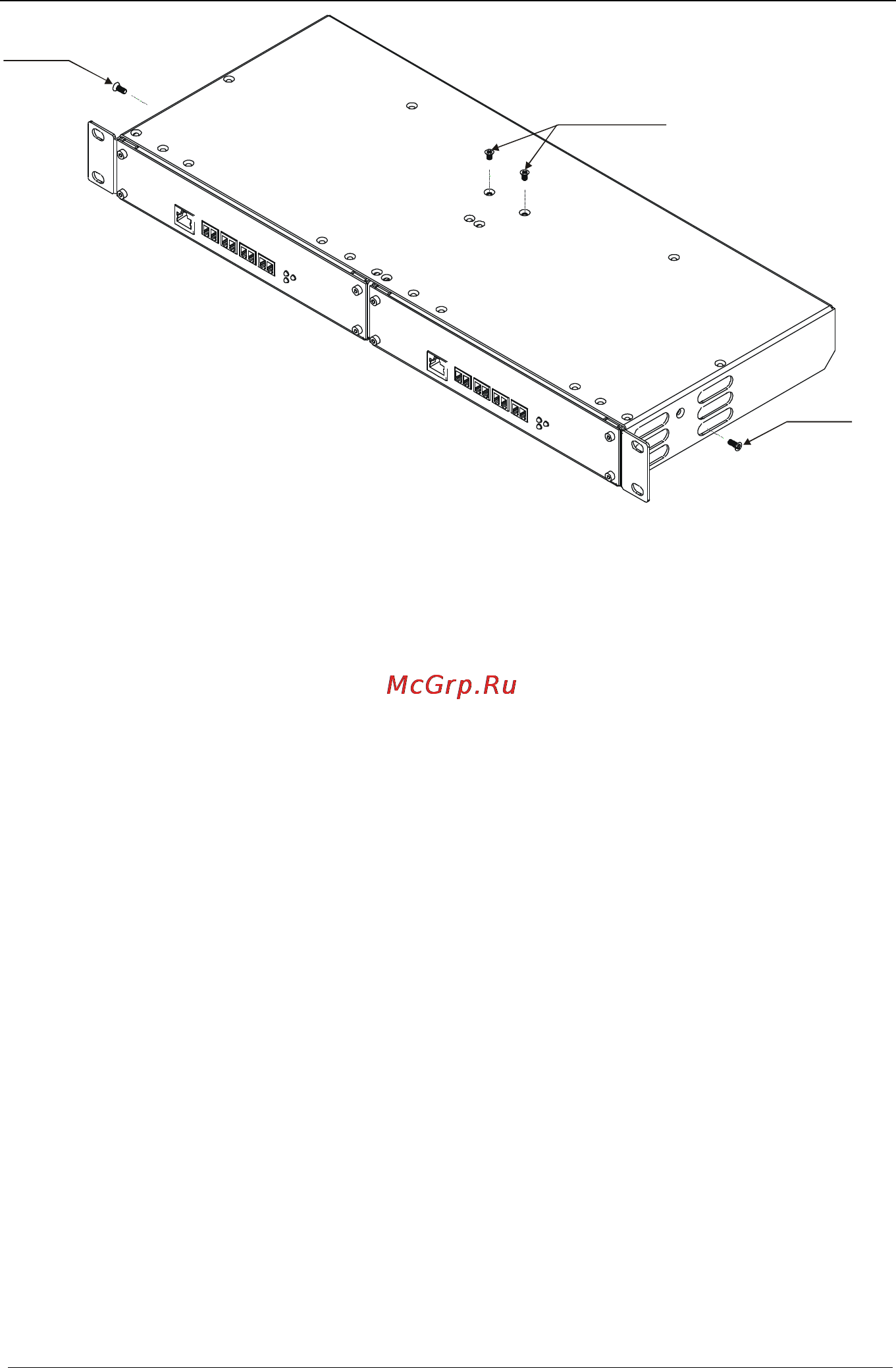

Figure 3: RK-622 Rack Adapter – Connecting the 622 (Aluminum)

5. Tighten the screws.

6. Rotate the 622 horizontally with the unit connected.

7. Place the next 622 unit next to the unit that is already mounted.

8. Repeat steps 2 to 4 for the second unit.

5.2 Mounting an Extrusion Housing Unit

To mount the 622 units on the RK-622, do the following:

1. Place the first 622 unit on the rack.

2. Hold both the 622 and the RK-622 with your hands and turn them upside

down.

3. Insert the appropriate amount of screws through the holes on the RK-622 that

fit the holes on the underside of the 622, using the screws supplied with the

unit (as illustrated in Figure 4).

4. Tighten the screws.

5. Rotate the 622 horizontally with the unit connected.

6. Place the next 622 unit next to the unit that is already mounted.

7. Repeat steps 2 to 4 for each other unit.
