Mounting the 622 on the Kramer RK-622 Rack Adapter

5 Mounting the 622 on the Kramer RK-622 Rack Adapter

This section describes how to mount 622T and 622R units with an:

 Aluminum type housing (see section 5.1)

 Extrusion type housing (see section 5.2)

5.1 Mounting an Aluminum Housing Unit

To mount the 622 units on the RK-622, do the following:

1. Connect the side bracket to the 622 unit, as illustrated in Figure 2.

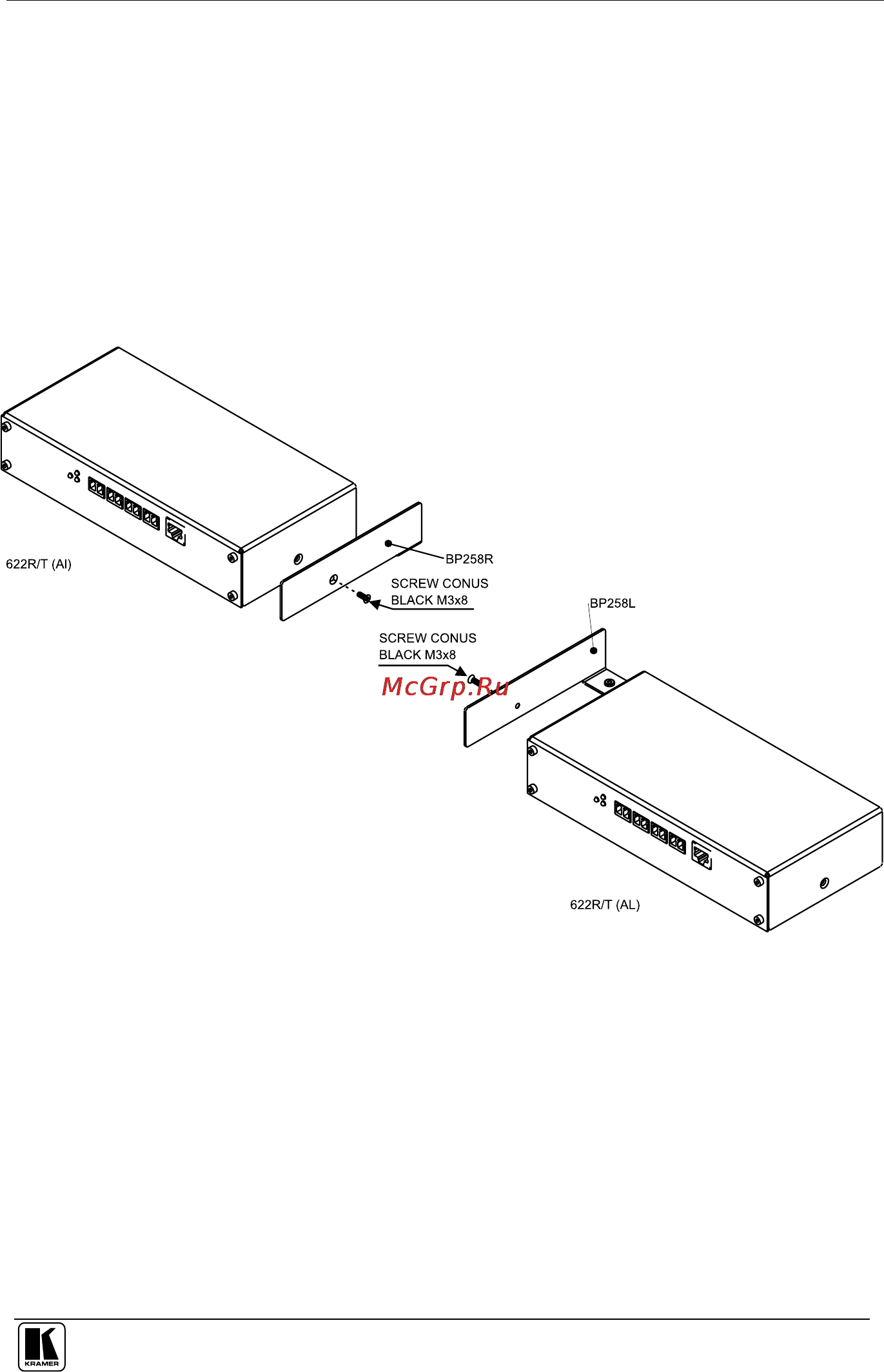

Figure 2: Connecting the Side Bracket

2. Place the first 622 unit (with the side bracket) on the rack.

3. Hold both the 622 and the RK-622 with your hands and turn them upside

down.

4. Insert the appropriate amount of screws through the holes on the RK-622 that

fit the holes on the underside of the 622, using the screws supplied with the

unit (as illustrated in Figure 3).
