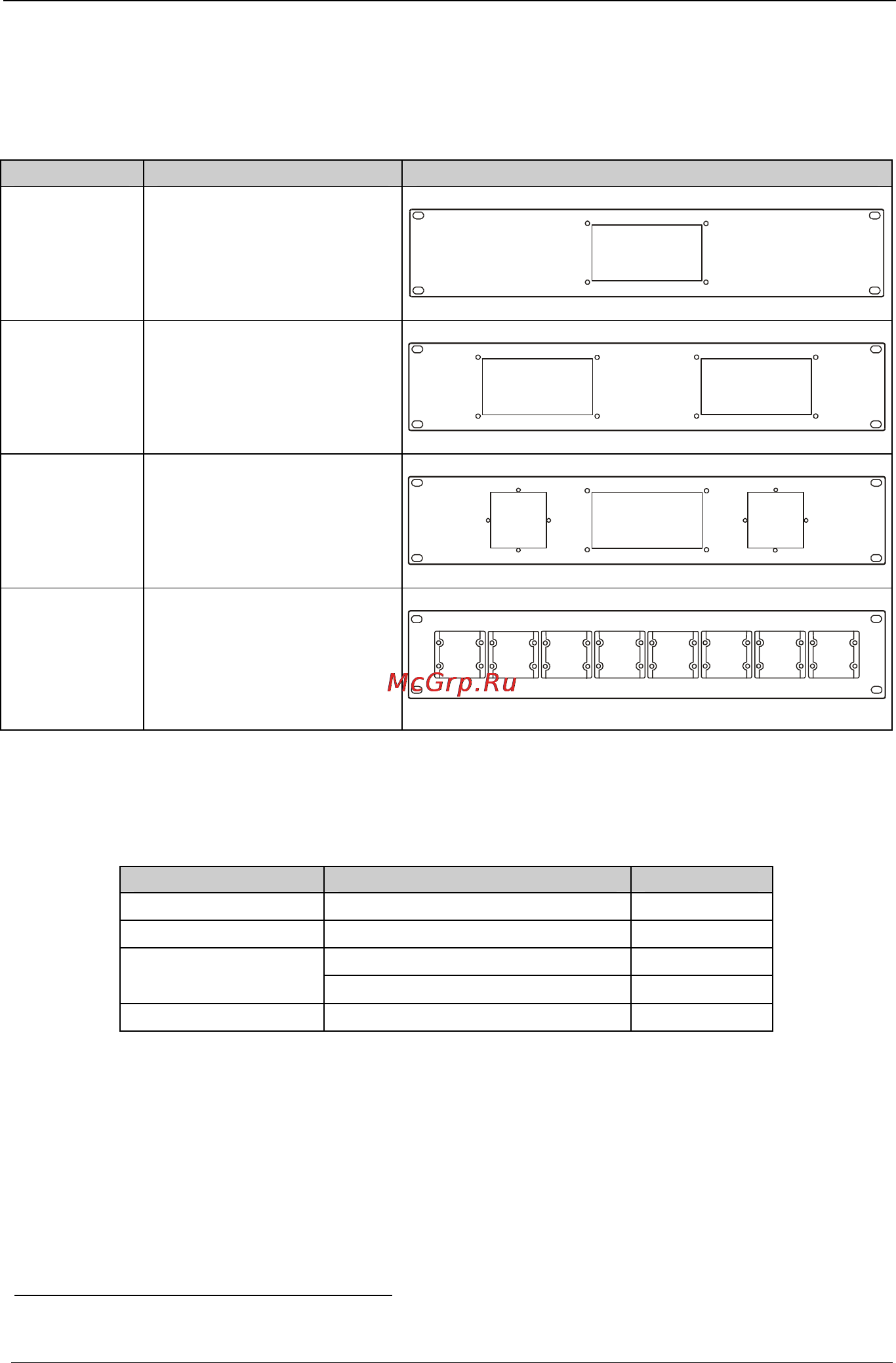

Table 1 defines the different rack adapters:

Table 1: The Wall Plate Rack Adapters

Rack Adapter: Wall Plates/Inserts Rack Adapter Diagram

RK-2WP

 One 2 Gang wall plate

RK-22WP

 Two 2 Gang wall plates

RK-121WP

 One 2 Gang wall plate

 Two 1 Gang wall plates

RK-WP16

 Up to 16 single wall plate

inserts, or

 Up to 8 double wall plate

inserts, or

 A combination of the

above

The rack adapters do not have to be entirely full with mounted wall plates (or

inserts). You can use blank panels to fill the empty spaces (see Table 2).

Table 2: Rack Adapter Blank Panels – Part Numbers

Rack Adapter Blank Panel Size Part Number

RK-2WP

2 Gang (optional) 2732-000432

RK-22WP

2 Gang (1 supplied) 2732-000432

RK-121WP

1 Gang (1 supplied) 2732-000433

2 Gang (optional) 2732-000432

RK-WP16

Single wall plate Inserts (10 supplied) 2732-503112

5 Installing Your Kramer Rack Adapters

This section describes how to install the:

 RK-121WP

, see section 5.1

 RK-WP16, see section 5.2

1 The RK-2WP and the RK-22WP are mounted in a similar way
