Technical Specifications
4
Plasma
Display
Laptop
5V Power Supply

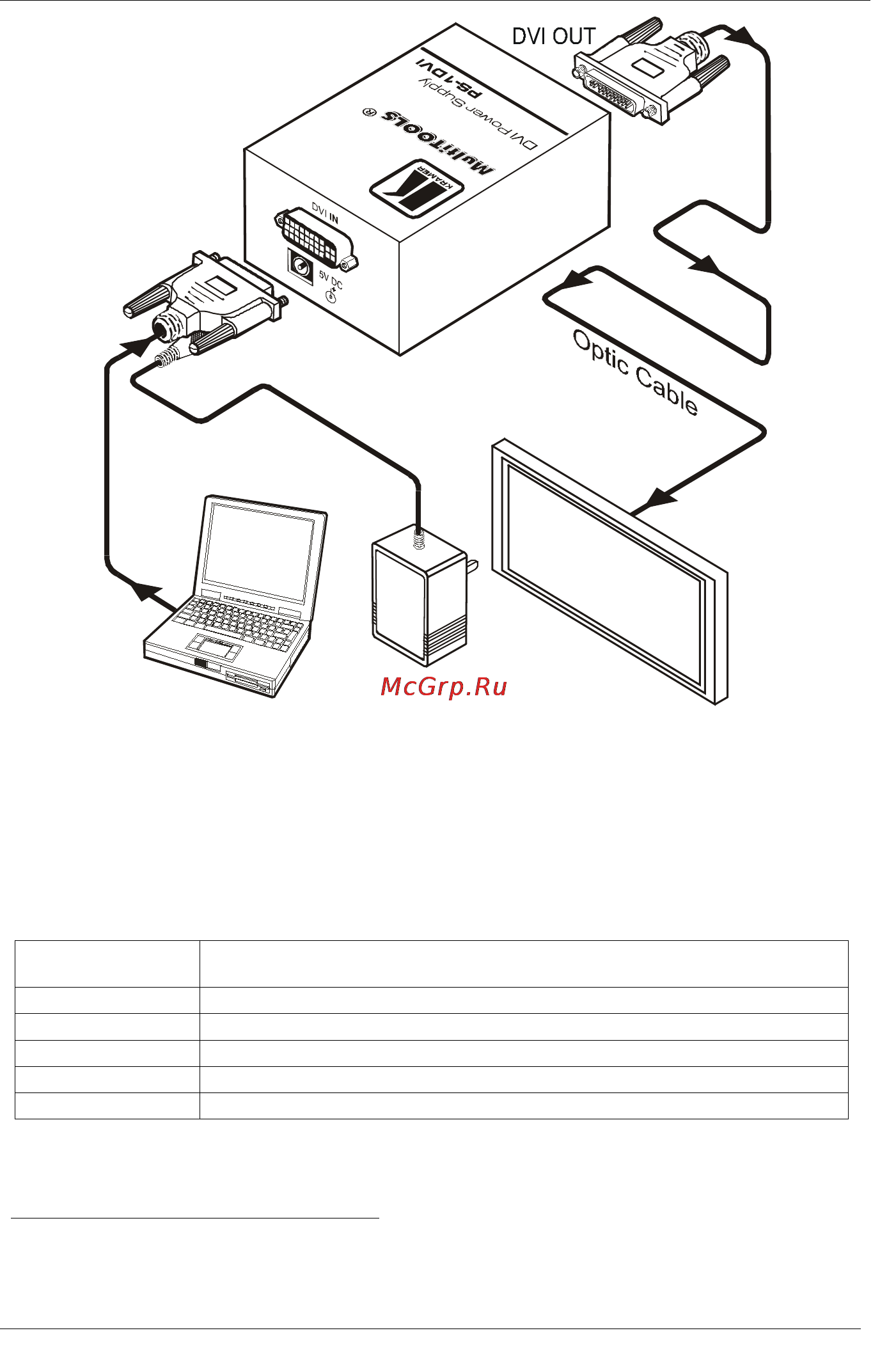

Figure 2: Connecting the PS-1DVI DVI Power Supply
5 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications
1
INPUT:
of the PS-1DVI
1 DVI, 1.2Vpp on a DVI-I Molex 24pin female connector; DDC signal 5Vpp
(TTL)
OUTPUT: 1 DVI, 1.2Vpp on DVI-I Molex 24pin female connector; DDC signal 5Vpp (TTL)
POWER SOURCE: 5V DC
DIMENSIONS
2
5.32cm x 4.36cm x 7.25cm (2.09" x 1.72" x 2.85") W, D, H :
WEIGHT: 0.15kg. (0.55lbs.) approx.
ACCESSORIES: DVI cable, power adapter
1 Specifications are subject to change without notice
2 Some versions may be smaller in size
