The VA-101P5 and VA-102P5 are 5- and 10-output power supplies used for

powering 5V DC powered devices. The VA-101P5 can supply a maximum of 1.8A

of current to each of five devices for a total of 9A current. The VA-102P5 can

supply a maximum of 1.8A of current to each of ten devices for a total of 18A

current.

The power supplies are especially useful in high-population installations for saving

space and eliminating a large number of 5V power adapters.

3.1 Defining the VA-101P5 5V DC Power Supply

This section defines the 5-output VA-101P5.

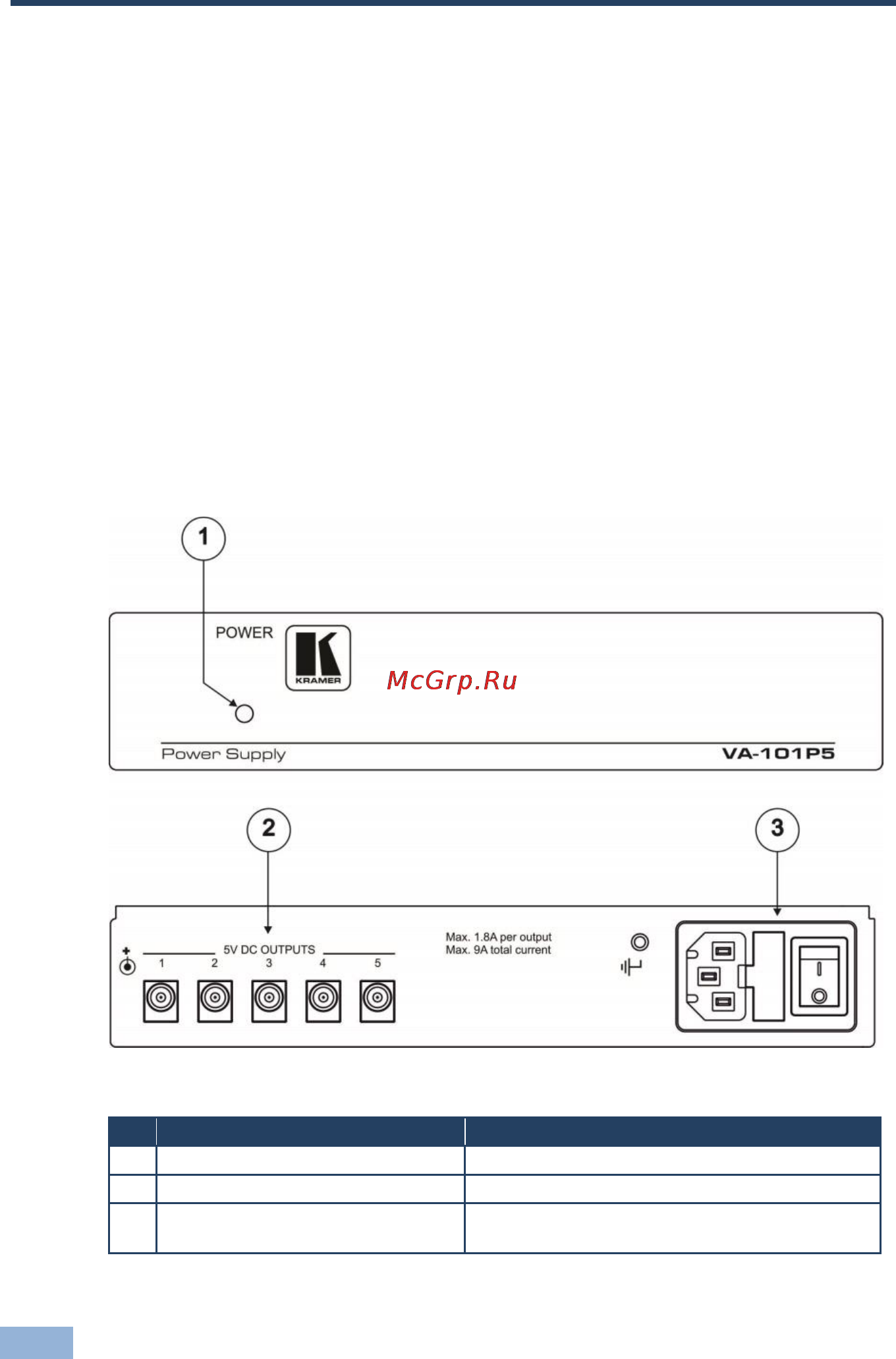

Figure 1: VA-101P5 5-Output 5V DC Power Supply

Feature

Function

Power LED

Illuminates when the power is turned on

5V DC Output Connectors

Supplies 5V DC to up to 5 devices

Power Connector, Fuse and

Switch

Connects to the mains supply and switches the

device on and off
