VA-101P5, VA-102P5 - Connecting the VA-101P5, VA-102P5
4 Connecting the VA-101P5, VA-102P5
Always switch off the power to each device before connecting it to your
VA-101P5, VA-102P5. After connecting your VA-101P5, VA-102P5,
connect its power and then switch on the power to each device.
To connect the VA-101P5, VA-102P5 as illustrated in the example in Figure 3:
Figure 3 illustrates the VA-101P5. The VA-102P5 has 10 outputs.
1. Connect the 5V DC outputs to up to five (for the VA-101P5) or ten (for the
VA-102P5) devices.
2. Connect the AC power cord to the AC receptacle and turn on the power to
the VA-101P5, VA-102P5.

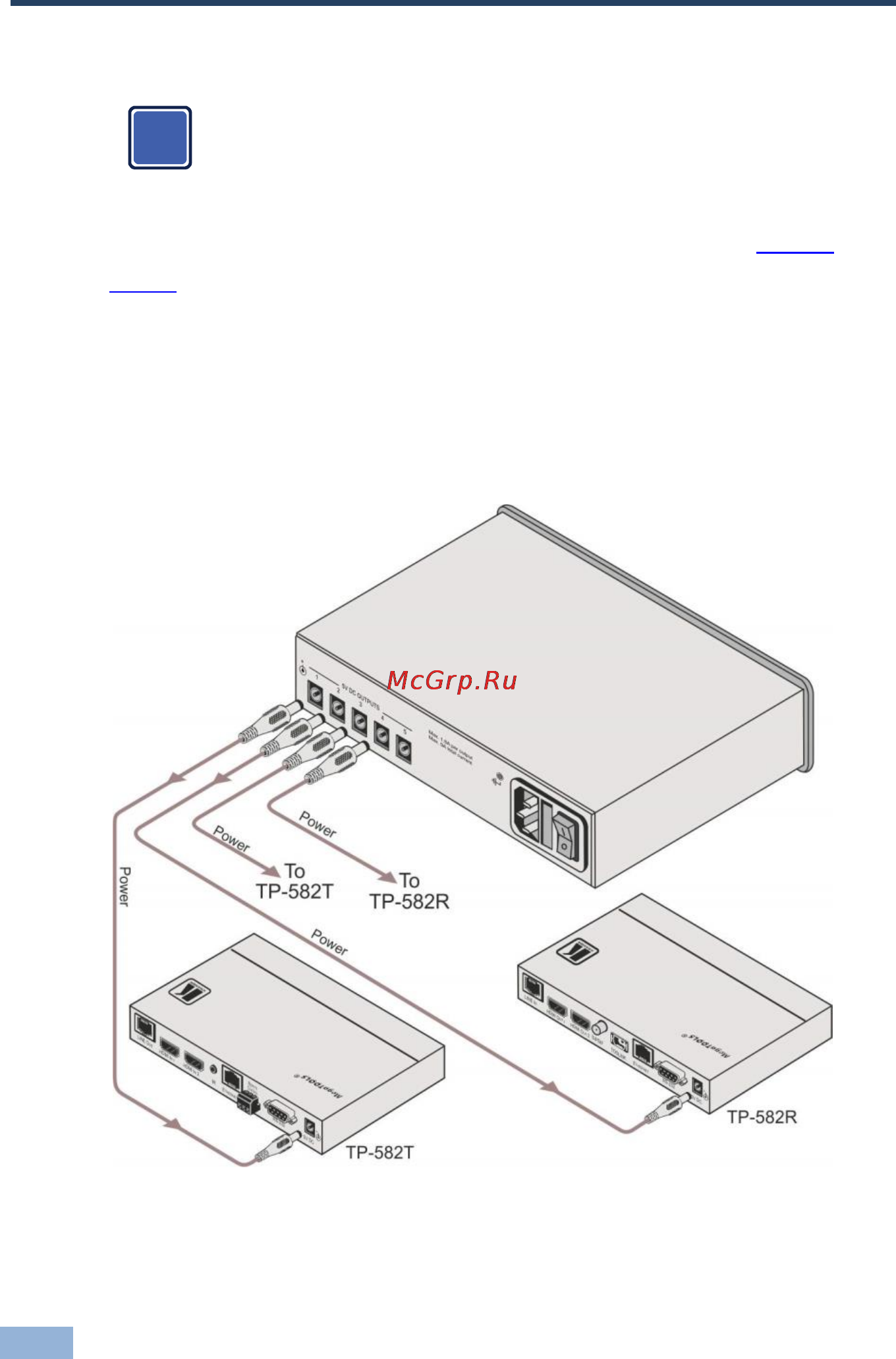

Figure 3: Connecting the VA-101P5 Power Supply
