RS-485 PUSHBUTTON CONTROL PANELS

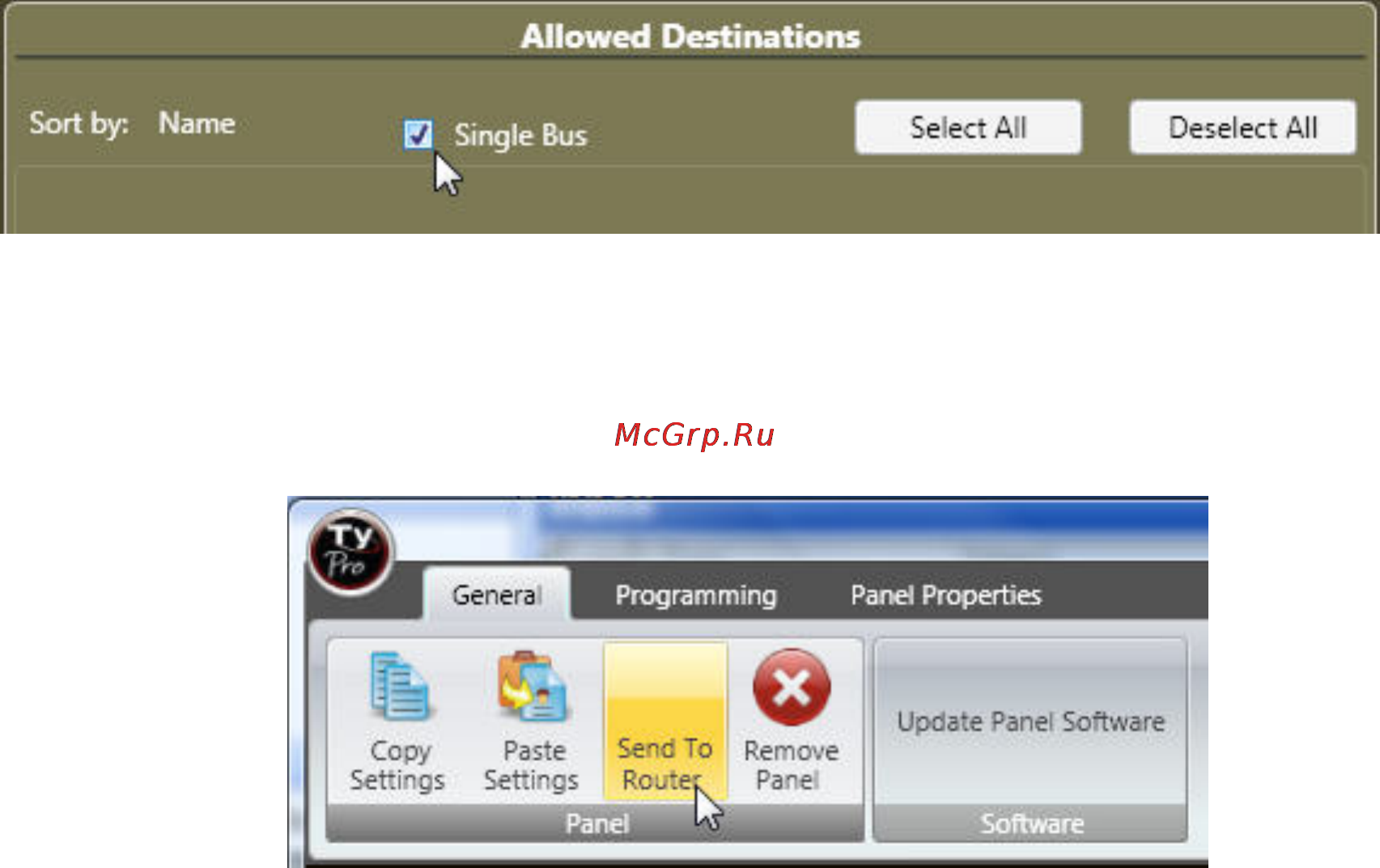

If the panel is to be a “Single Bus” (only controls 1 output), place a check in the “Single

Bus” box.

Placing a check in the “Single Bus” box will cause the panel to only access and switch

the single selected output.

If there is no check in the box and only one output is selected for the panel to control, the

panel can status the blocked outputs but only switch the selected output.

When selection of allowed outputs and levels is complete, click on “Send to Router”.
