Introduction

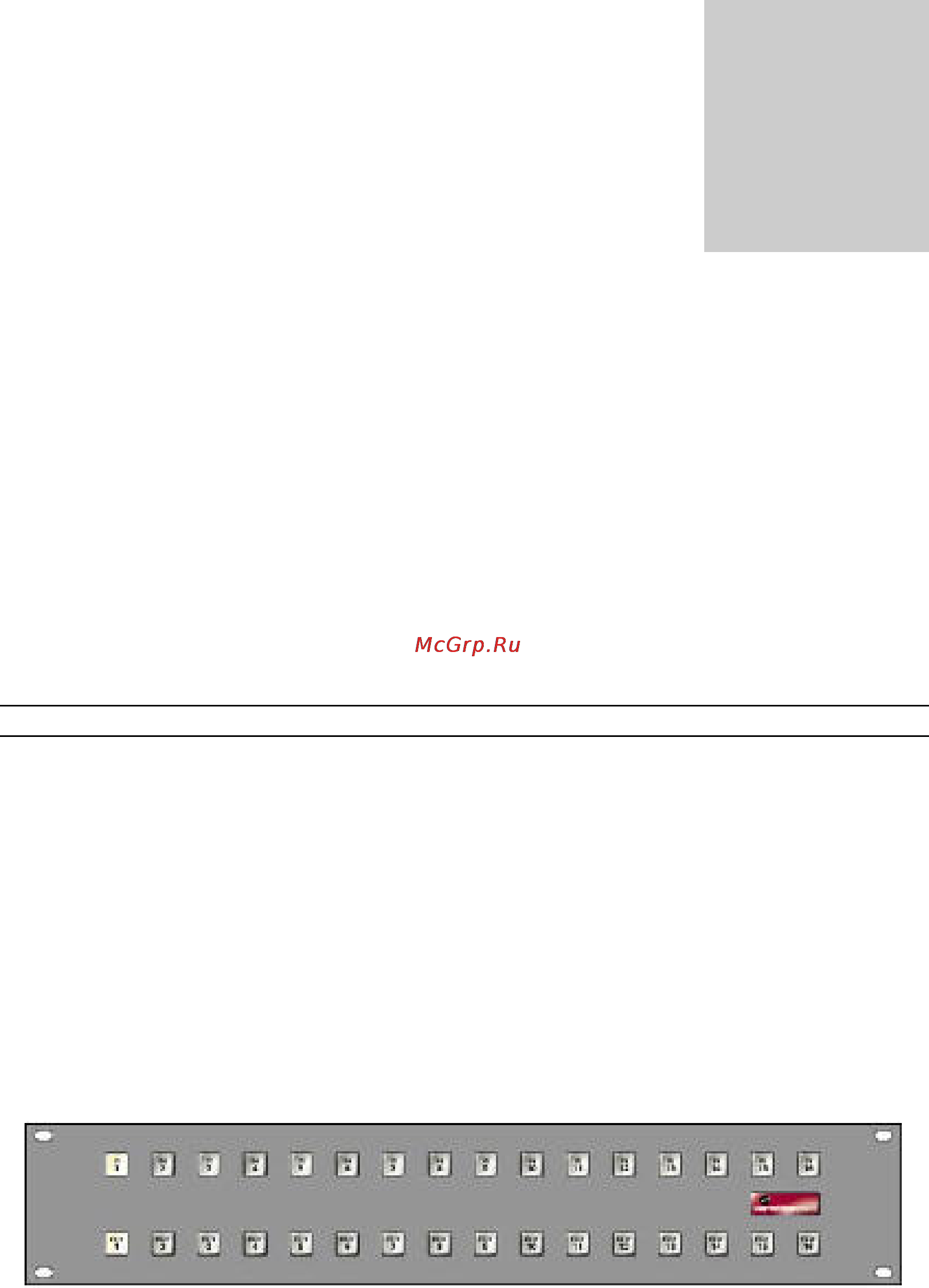

For the XY control panel, the output must be selected first. The selected output button will

light up to indicate that the output has been selected. An input button will also light

indicating the source currently connected to the selected output (status).

Pressing an input button causes the panel to ask the router to “take” that input to the

selected output. If the take is successful, the input button that was pressed will light to

indicate status of the selected output.

The single bus panel switches by selecting the desired input.

Note:

For the single bus control panel, the panel output is assigned at the router using the SVS TYLINX

PRO program.

All takes are performed on every level that the panel controls. The controlled levels are

assigned at the router via the TYLINX PRO program (see the section on setup in this

manual).

If a “take” is requested by pressing an input button, and the router cannot perform the

take for some reason, such as because of a destination lockout or an invalid source, the

pressed button and the current input button will flash.

To cancel the flashing either:

1. Press either of the flashing buttons. This cancels the flashing instead of requesting

another take.

2. Press a non-flashing button to request a different take.
