1. PRODUCT NAME
Hitachi 12 V Cordless Driver Drill, Model DS 12DVB2
2. MARKETING OBJECTIVE
The current Model DS 12DVB is popular as a professional-use 12 V cordless driver drill. However, about two
years have already passed since the sales start. To cope with this situation, the model is upgraded to the more
convenient Model DS 12DVB2 equipped with an advanced case.
3. APPLICATIONS
Tightening and loosening wood screws, self-tapping screws and machine screws
Drilling into wood materials, plastic, mild steel and aluminum

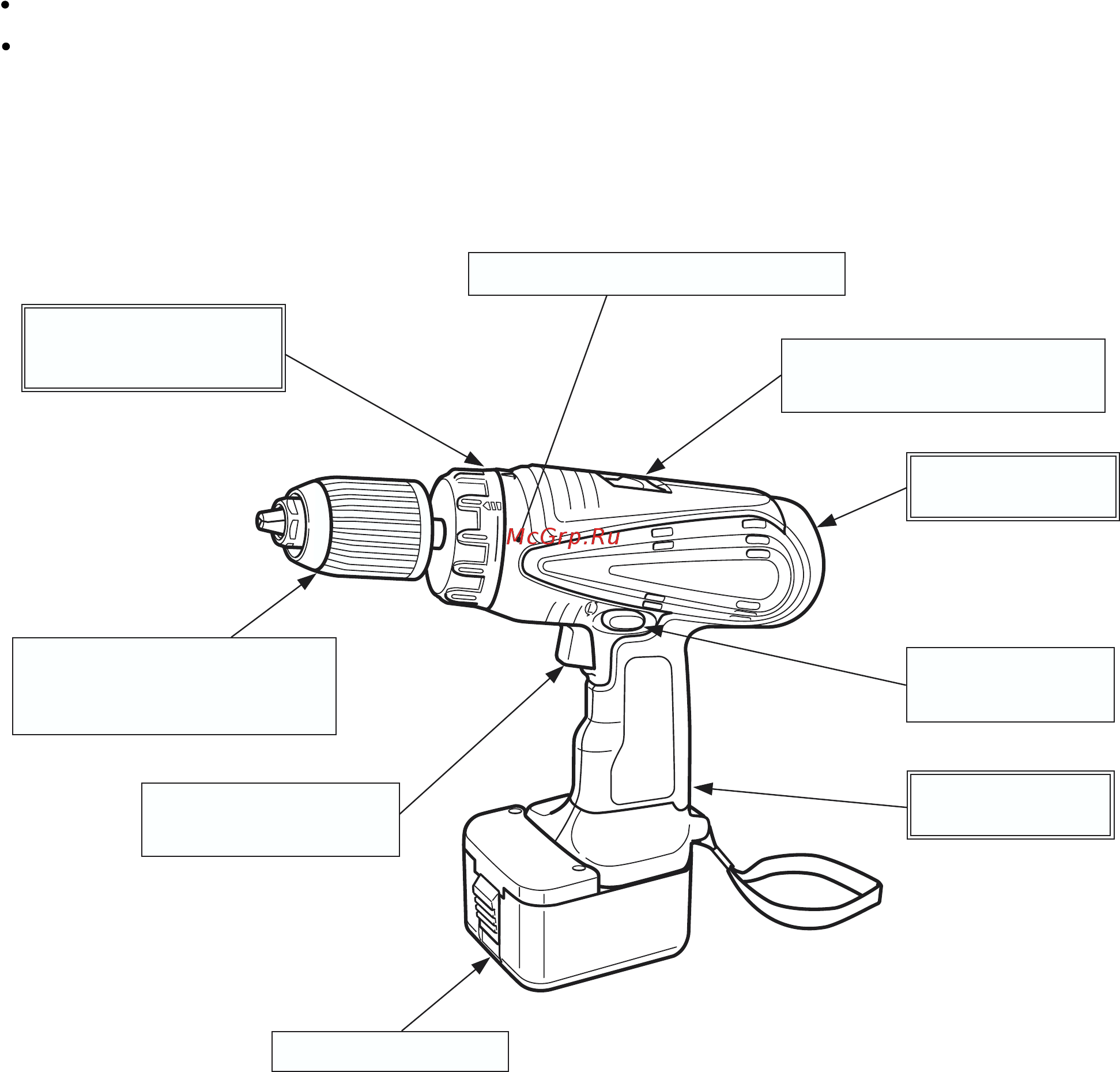

4. SELLING POINTS
Variable torque setting
for fastener tightening
22-position adjustable
torque setting
Two-speed transmission with
one-touch speed shift knob
Variable speed switch
with braking function
Equipped with feedback
power control
Push-button type
reversing switch
Soft-grip handle
Durable fan-cooled
powerful motor
Automatic spindle lock mechanism
13 mm (1/2") single-sleeve
keyless chuck with ratcheting
lock mechanism
12 V cassette battery
