EN_DS6LPA-STP2_1214
www.yanmar.eu
Configuration 4-stroke, vertical, water-cooled diesel engine
Maximum output at crankshaft * 232 kW@3800 rpm [315 mhp@3800 rpm]
** 220 kW@3800 rpm [299 mhp@3800 rpm]
Displacement 4.164 ltr [254 cu in]
Bore x stroke 94 mm x 100 mm [3.7 in x 3.94 in]
Cylinders 6 in line, 4-valves per cylinder
Combustion system Direct injection
Aspiration Turbocharged with intercooler
Starting system Electric starting 12V - 2.5 kW
Alternator 12V - 80A
Cooling system Fresh water cooling by centrifugal fresh water pump and
rubber impeller seawater pump
Lubrication system Enclosed, forced lubricating system
Direction of rotation [crankshaft] Counterclockwise viewed from flywheel side
Dry weight without gear 408 kg [899 lbs]
Environmental EU: RCD BSO II EMC
US: EPA Tier2
IMO: MARPOL 73/78 Annex VI
Engine mounting Rubber type flexible mounting
NOTE:
Fuel condition: Density at 15°C = 0.84 g/cm³; 1 kW = 1.3596 mhp = 1.3410 HP
* Fuel temperature 25°C at the inlet of the fuel injection pump [ISO 3046-1]
** Fuel temperature 40°C at the inlet of the fuel injection pump [ISO 8665: 2006]
Technical data is according to ISO 8665: 2006/3046-1

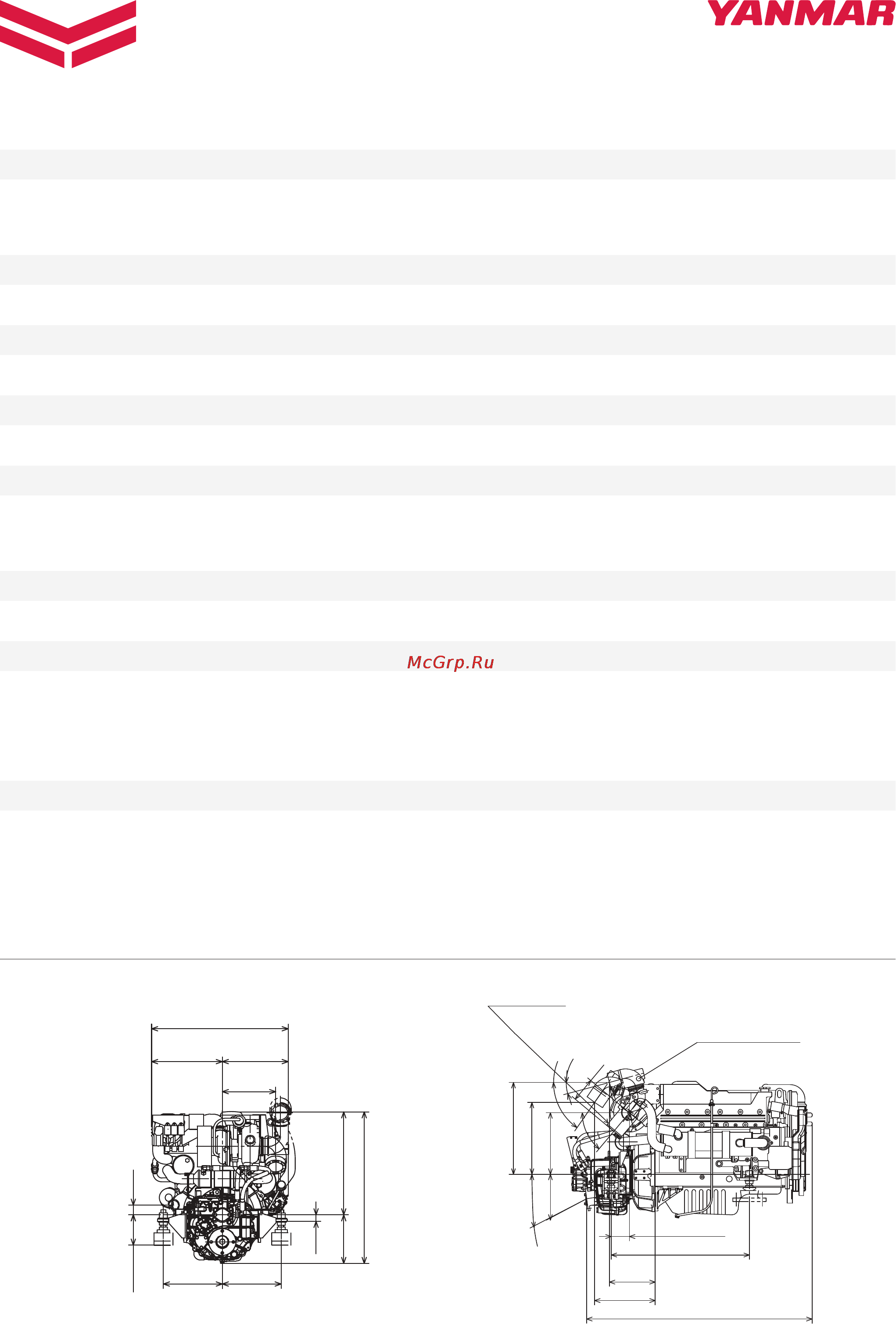

DIMENSIONS
MARINE DIESEL ENGINES
6LPA-STP2 / KMH50A marine gear
www.yanmarmarine.com
6LPA-STP2
Series
Configuration 4-stroke, vertical, water cooled diesel engine
Maximum output at crankshaft * 232 kW (315 mhp) / 3800 rpm
** 225 kW (306 mhp) / 3800 rpm
Continuous rating output at crankshaft 211 kW (286.4 mhp) / 3682 rpm
Displacement 4.164 L (254 cu in)
Bore x stroke 94 mm x 100 mm (3.70 in x 3.94 in)
Cylinders 6 in line cylinders, 4-valves per cylinder
Combustion system Direct injection
Aspiration Turbocharged with intercooler
Starting system Electrical starting 12 V - 2.5 kW
Alternator 12 V - 80 A
Cooling system Fresh water cooling by centrifugal fresh water pump and rubber impeller seawater pump
Lubrication system Enclosed, forced lubricating system
Direction of rotation (crankshaft) Counter clockwise viewed from flywheel side
Dry weight without gear 408 kg (899 lbs)
Environmental EU RCD, US EPA Tier2, BSO II, EMC & Marpol 73/78 Annex VI
Engine mounting Rubber type flexible mounting
NOTE: Fuel condition: Density at 15°C = 0.86 g/cm
3
; 1kW = 1.3596 mhp = 1.3410 HP
* Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046-1)
**Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Technical data is according to ISO 8665 / 3046
Dimensions (For detailed line-drawings, please refer to our web-site: www.yanmarmarine.com)
321 mm
(12.6 in)
260 mm
(10.2 in)
MIN.138 mm (5.4 in)
MAX.148 mm (5.8 in)
739 mm (29.1 in)
237 mm
(9.3 in)
502 mm (19.8 in)
287 mm
(11,3 in)
287 mm
(11,3 in)
32 mm
(1.3 in)
47 mm
(1.9 in)
345 mm
(13.6 in)
666 mm (26.2 in)
riser mixing elbow (option)
mixing elbow o 102
748.4 mm (29.5 in)
132 mm
(5.2 in)
389 mm (15.3 in)
497.1 mm (19.6 in)
15
º mm (0.6 in)
55
º mm (2.2in)
328.2 mm
(12.9 in)
248.1 mm
(9.8 in)
98.8 mm (3.9 in)
333 mm (13.1 in)
131 mm (5.2in)
8
º mm (0.3 in)
1220 mm (48 in)
Rear view Right side view
6LPA-STP2 with KM2P-1 marine gear
6LPA-STP2 Series
MARINE DIESEL ENGINES
