Yanmar 6LPA-STP2 Документация онлайн
EN_DS6LPA-STZP2_1214
www.yanmar.eu
Configuration 4-stroke, vertical, water-cooled diesel engine
Maximum output at crankshaft * 232 kW@3800 rpm [315 mhp@3800 rpm]
** 225 kW@3800 rpm [306 mhp@3800 rpm]
Displacement 4.164 ltr [254 cu in]
Bore x stroke 94 mm x 100 mm [3.7 in x 3.94 in]
Cylinders 6 in line, 4-valves per cylinder
Combustion system Direct injection
Aspiration Turbocharged with intercooler
Starting system Electric starting 12V - 2.5 kW
Alternator 12V - 80A
Cooling system Fresh water cooling by centrifugal fresh water pump and
rubber impeller seawater pump
Lubrication system Enclosed, forced lubricating system
Direction of rotation [crankshaft] Counterclockwise viewed from flywheel side
Dry weight without gear 428 kg [944 lbs]
Environmental EU: RCD BSO II EMC
US: EPA Tier2
IMO: MARPOL 73/78 Annex VI
Engine mounting Rubber type flexible mounting
NOTE:
Fuel condition: Density at 15°C = 0.84 g/cm³; 1 kW = 1.3596 mhp = 1.3410 HP
* Fuel temperature 25°C at the inlet of the fuel injection pump [ISO 3046-1]
** Fuel temperature 40°C at the inlet of the fuel injection pump [ISO 8665: 2006]
Technical data is according to ISO 8665: 2006/3046-1
DIMENSIONS
MARINE DIESEL ENGINES
6LPA-STZP2 with ZT370 Sterndrive
www.yanmarmarine.com
6LPA-STZP2
Series
Configuration 4-stroke, vertical, water cooled diesel engine
Maximum output at crankshaft * 232 kW (315 mhp) / 3800 rpm
** 225 kW (306 mhp) / 3800 rpm
Continuous rating output at crankshaft 211 kW (286.4 mhp) / 3682 rpm
Displacement 4.164 L (254 cu in)
Bore x stroke 94 mm x 100 mm (3.70 in x 3.94 in)
Cylinders 6 in line cylinders, 4- valves per cylinder
Combustion system Direct injection
Aspiration Turbocharged with intercooler
Starting system Electrical starting 12 V - 2.5 kW
Alternator 12 V - 80 A
Cooling system Fresh water cooling by centrifugal fresh water pump and rubber impeller seawater pump
Lubrication system Enclosed, forced lubricating system
Direction of rotation (crankshaft) Counter clockwise viewed from flywheel side
Dry weight without sterndrive 428 kg (944 lbs)
Environmental EU RCD, US EPA Tier 2, BSO II, EMC & Marpol 73/78 Annex VI
Engine mounting Rubber type flexible mounting
NOTE: Fuel condition: Density at 15°C = 0.84 g/cm
3
; 1kW = 1.3596 mhp = 1.3410 HP
* Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046-1)
**Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665 : 2006)

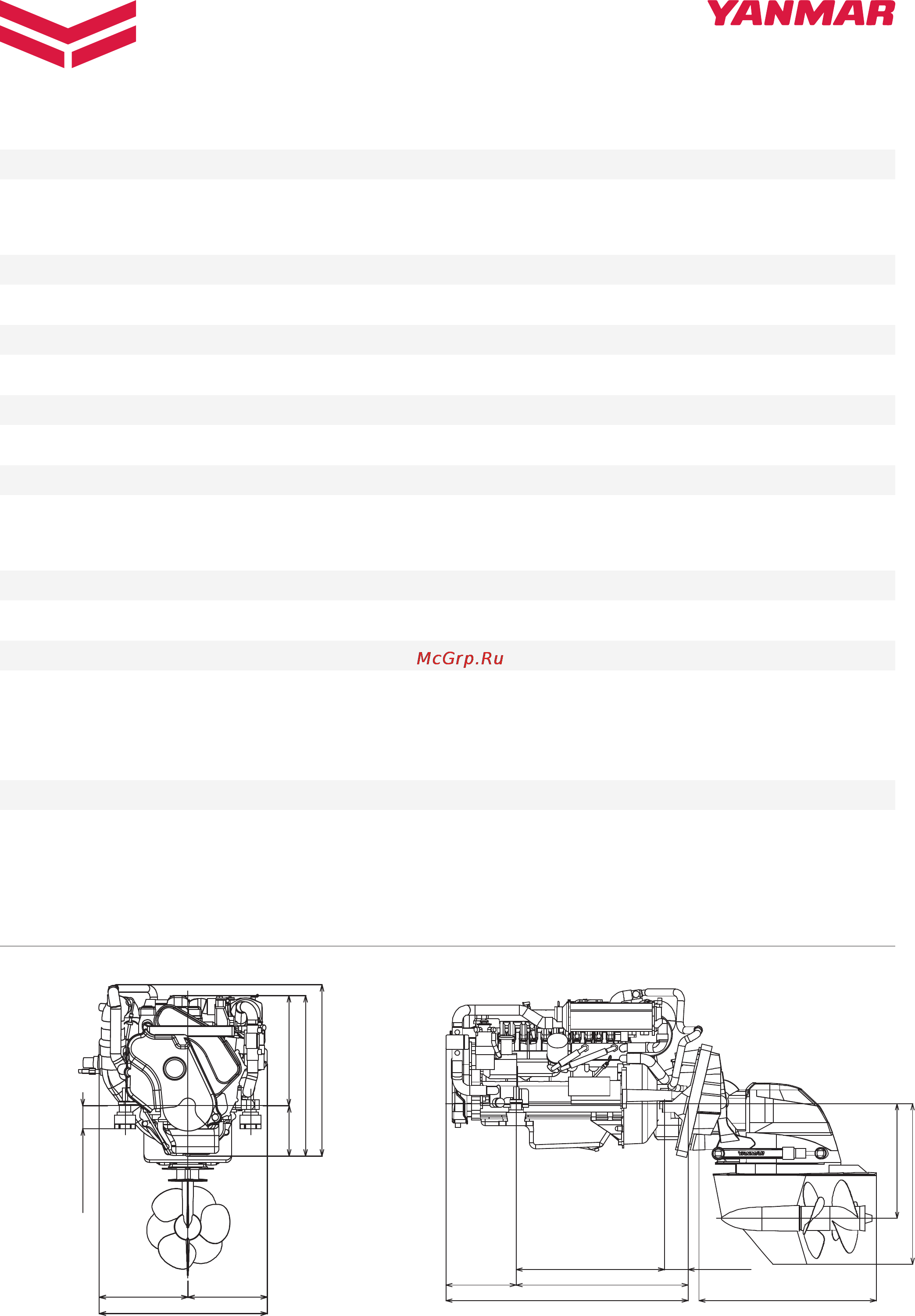

Dimensions (For detailed line-drawings, please refer to our web-site: www.yanmarmarine.com)
230.4 mm (9.1in)
504 mm (19.8 in)
734.4 mm (28.9 in)
MAX.112 mm (4.4 in)
MIN.92 mm (3.6 in)
784.3 mm (30.8 in)
363 mm (14.3in)406 mm (16in)
769 mm (30.2in)
716.4 mm (28.2 in) 114 mm (4.5 in)
830.4 mm (32.6 in)338.9 mm (13.3 in)
1169.3 mm (46 in) 856.3 mm (33.7 in)
775.6 mm (30.5 in)
553.5 mm (21.8 in)
Rear view Right side view
6LPA-STZP2 with KM2P-1 marine gear
6LPA-STZP2 Series
MARINE DIESEL ENGINES
Содержание
- Lpa stzp 1
- Lpa stzp2 series 1
- Marine diesel engines 1
- Series 1
- 2 c w temperature meter x o o 4 3 boost meter turbo x x o 2
- Accessories 2
- Drive systems 2
- Function new b type panel new c type panel new d type panel 1 switch unit 1 1 key switch for glow off on start 4 position switch o o o 1 2 engine stop switch o o o 1 3 alarm buzzer c w temp l o pressure o o o 1 4 alarm buzzer stop switch o o o 1 5 illumination switch for meters o o o 2 alarm lamp unit battery not charging o o o c w high temperature o o o l o low pressure o o o f o drain separator water level o o o sea water flow o o o c w level for fresh water tank x o o boost pressure high x o o 3 tachometer with hour meter o o o 4 sub meter unit x 4 1 l o pressure meter x o o 2
- Instrument panels 2
- Model zt370 steerable z drive with dual prop type hydraulic actuated multi friction disc clutch dry weight 100 kg reduction ratio 1 65 1 65 1 78 1 78 propellor speed 2424 2424 2247 2247 direction of rotation viewed from the stern clockwise rear prop counterclockwise front prop lub oil specifications api class gl5 sae grade 80w90 dry weight engine with sterndrive 550 kg 1213 lbs shift control mechanical or electro magnetic trim range 6 10 trailer limit 51 2
- New b type panel new c type panel new d type panel 2
- Optional accesories flexible mounts 2 pcs high riser mixing elbow instead of l elbow analog instrument panels new b c and d type dual station y harness sensor for vdo instrument panels control heads extension wire harness 4m 6m 10m lub oil evacuation pump air venting device for cooling water tank vdo instrumentation for main panel and fly bridge dipstick for opposite side 2
- Performance curves 2
- Quartz clock x x o 2
- Standard engine package sensor for instrument panel new b c and d type exhaust water mixing elbow l type cooling water hoses fuel water separator integrated with fuel filter alternator 12v 80a 2
- Type of instrument panel 2
- Www yanmar eu 2
- Www yanmarmarine com 2
- Yanmar europe bv 2
