Instructions for the installer

2. POSITIONING OF HOB

The following operation requires building and/or carpentry work so must

be carried out by a competent tradesman.

Installation can be carried out on various materials such as masonry,

metal, solid wood or plastic laminated wood as long as they are heat

resistant (T 90°C).

Never use silicone or other insulating products when installing the

appliance; use only the rubber gasket provided.

2.1.1 Attachment to support structure

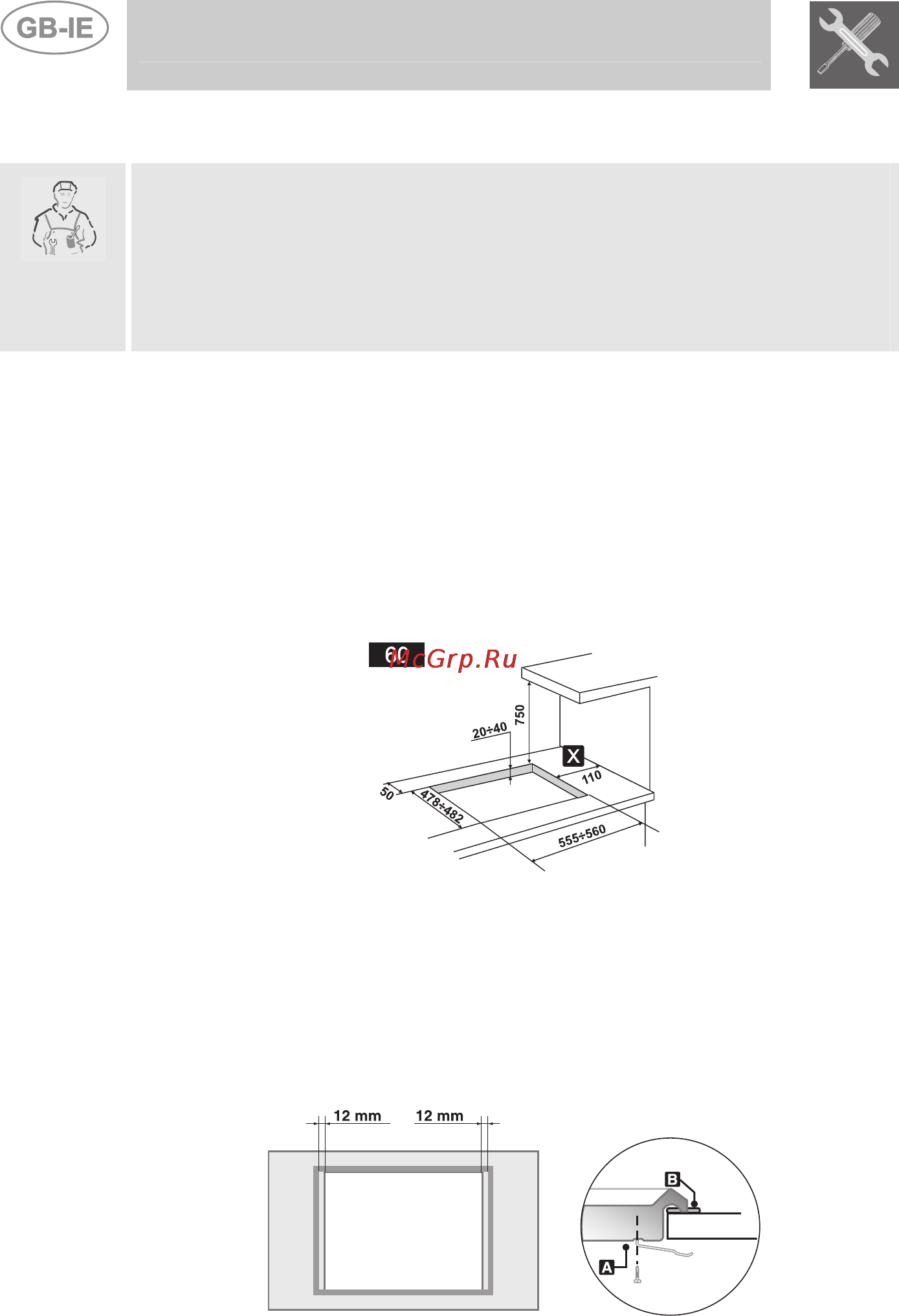

Create an opening with the dimensions shown in the figure in the top

surface of the counter, keeping a minimum distance of 50 mm from the

rear border.

This appliance can therefore be mounted against walls higher than the

work surface on condition that a certain distance “X” be kept between the

appliance and the wall as shown in the figure so as to avoid damage from

overheating.

Make sure there is a minimum of 750 mm between the hot plate flames

and any shelf that may be installed directly above them.

Accurately position the gasket provided all around the outer edge of the

hole in the top surface as shown in the figures below, pressing it down so

as to make it adhere properly. For measurements, refer to the figure

depending on the hob model to be installed, bearing in mind that in both

models the front and rear sides must skim the hole. Secure the hob to the

counter with brackets A (supplied). Carefully trim any excess from border

B of the gasket. The distances in the following drawing refer to the hole

on the inner side of the gasket.
