ZVE Pocket

Open Camera Probe

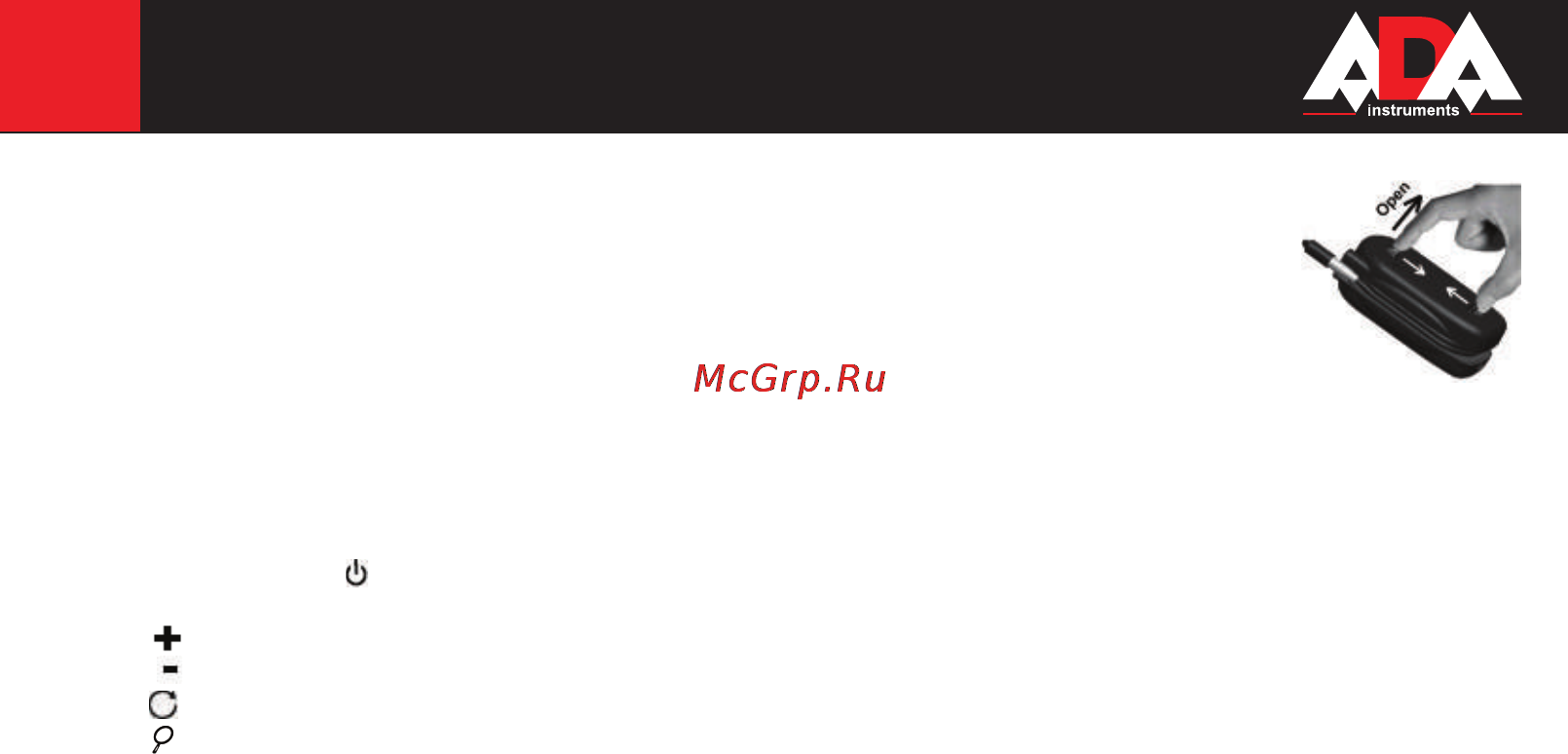

Open the camera probe before use . Pinch buckle “L” as the white arrow in Picture 3. At the same time, pull

out the back cover to the black arrow direction. In this way, the built-in camera probe can be seen. Pull out the

probe along the inside casing and place the bottom of probe at a proper location along the camera head slot “K”.

Close the back cover from opposite direction to use the unit.

Accessories installation

Accessories and camera head are connected using threaded screw. It is recommended to put on the thread

protector when no attachment is installed.

When use the three accessories shown in Fig.2, remove the thread protector before put on other accessories.

Basic Operations

1. Facing the LCD screen press and hold for 2s to turn on the product, and LCD screen will be powered on (press this button again

for 2s to turn off the unit);

2. Press to increase LED brightness;

3. Press to decrease LED brightness;

4. Press to rotate the image each time by 180 .

5. Press to zoom the picture from x1.0 to x1.5, x2.0 , x2.5, x3.0, x3.5 , x4.0

This product is designed for long distance inspection. Classic applications are inspections of HVAC systems, vehicles, circuits, boats

and aviation. Under limited conditions, accessories can be used to pick up small objects such as rings and screws.

Operation Precautions

a) Please read the safety instructions thoroughly before operation, choose a proper working area to reduce the risk of accidents.

b) The probe is flexible, which helps you to get to hard-to-reach areas. Please don’t insert or bend the camera probe by force. Please do

Рic.3
