1Smart-UPS 750-3000 VA 120/208/230 Vac Rack-mount
Overview
Product Description
The APC
®
by Schneider Electric Smart-UPS
®
750-3000 VA 120/208/230 Vac Rack-mount is a high
performance uninterruptible power supply (UPS). It provides protection for electronic equipment from
utility power blackouts, brownouts, sags, and surges; small utility fluctuations and large disturbances.
The UPS also provides battery backup power until utility power returns to safe levels or the batteries are
fully discharged.
Safety
Read the Safety Guide included in the package before installing the UPS.
Inspect the UPS upon receipt. Notify the carrier and dealer if there is damage.
Recycle the packaging.
Product Overview

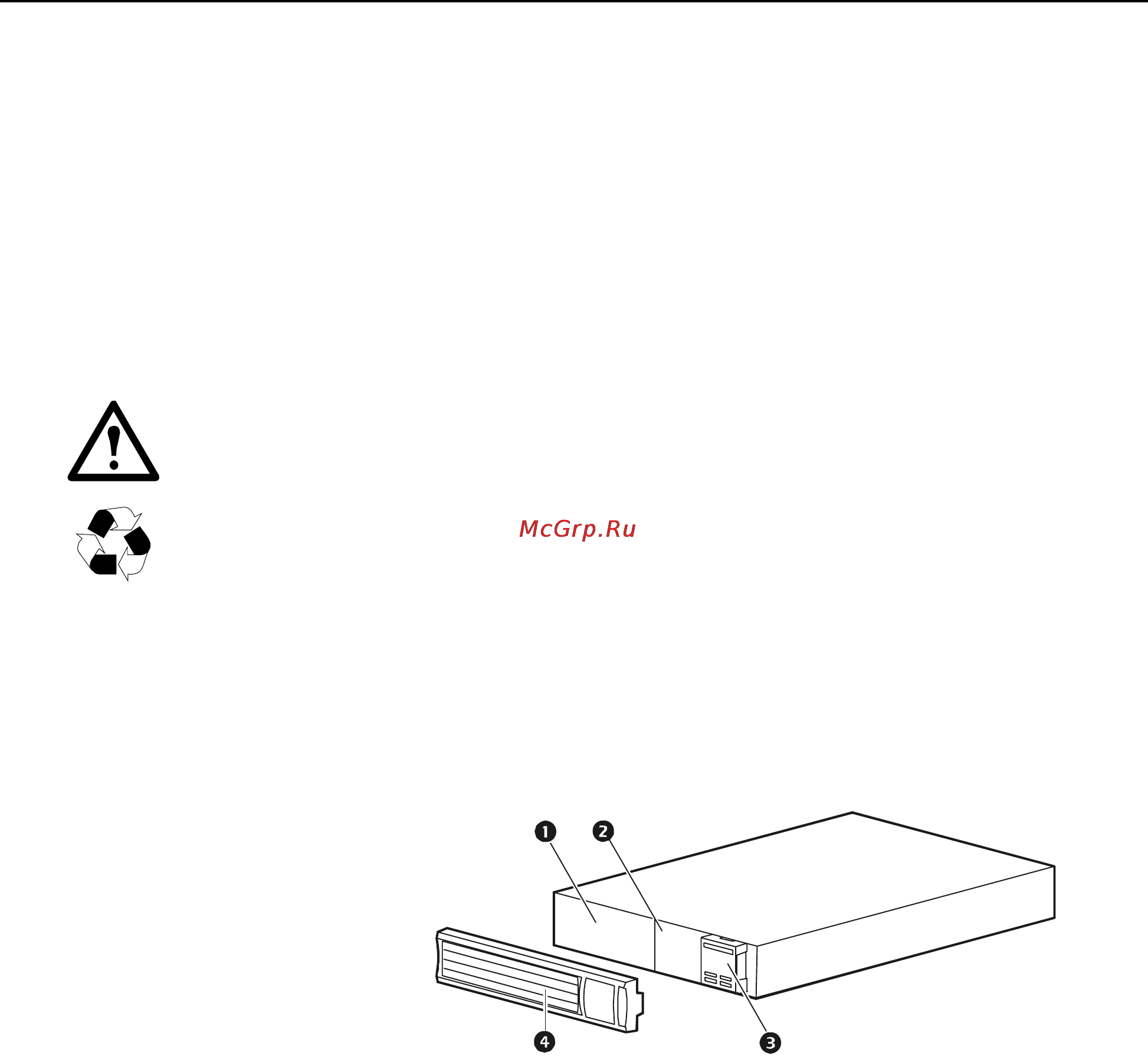

Front panel
Battery
Battery connector
*This will vary by model.
Display interface
Bezel
su0498a
