B85M-GL
11
English

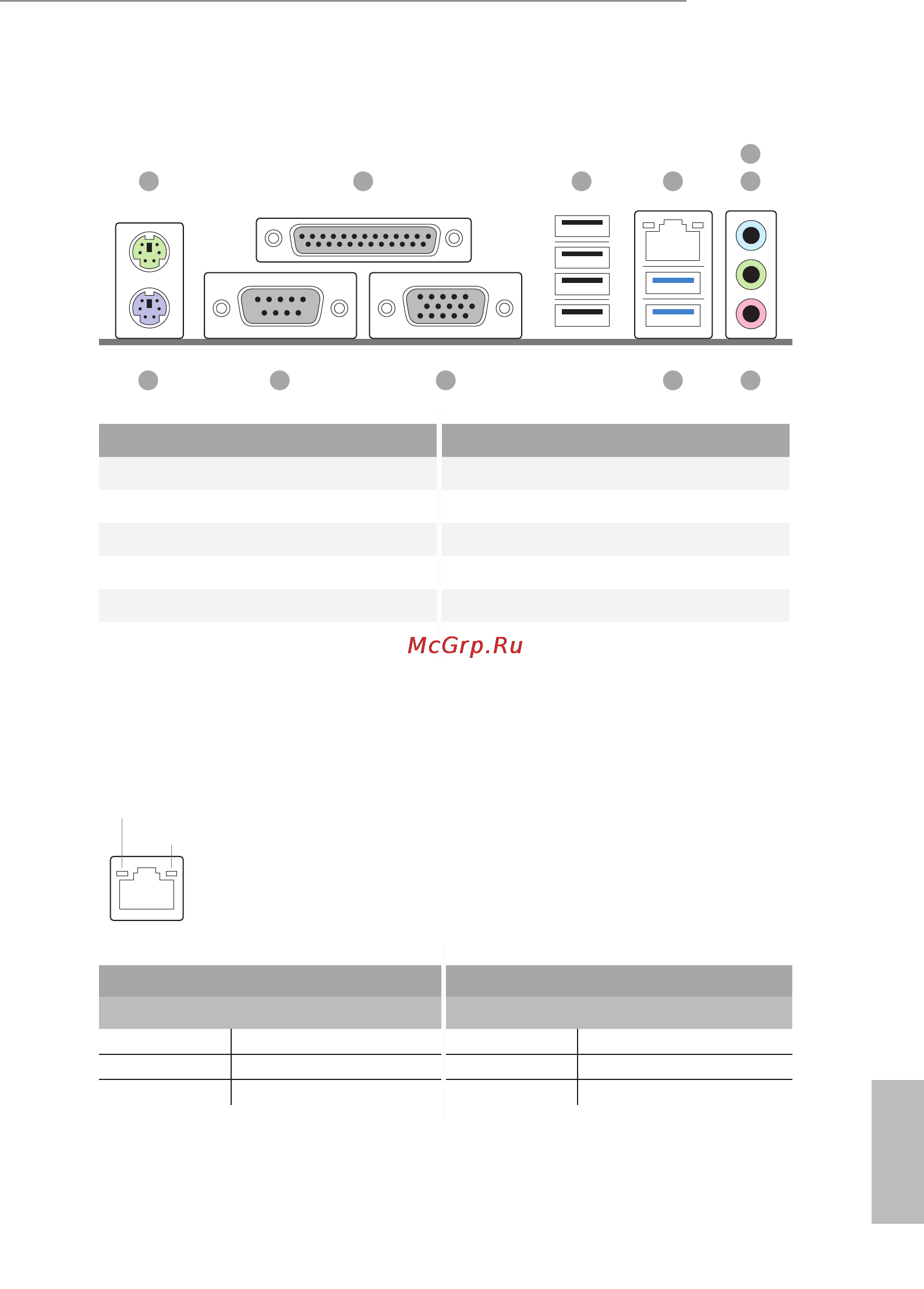

1.5 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 7 Microphone (Pink)
2 Parallel Port 8 USB 3.0 Ports (USB3_01)
3 USB 2.0 Ports (USB0123) 9 DVI-D Port
4 LAN RJ-45 Port* 10 COM Port
5 Line In (Light Blue) 11 PS/2 Keyboard Port
6 Front Speaker (Lime)
1 2 3 4 6
7891011
5
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
