Fatal1ty Z97 Killer Series
21
English

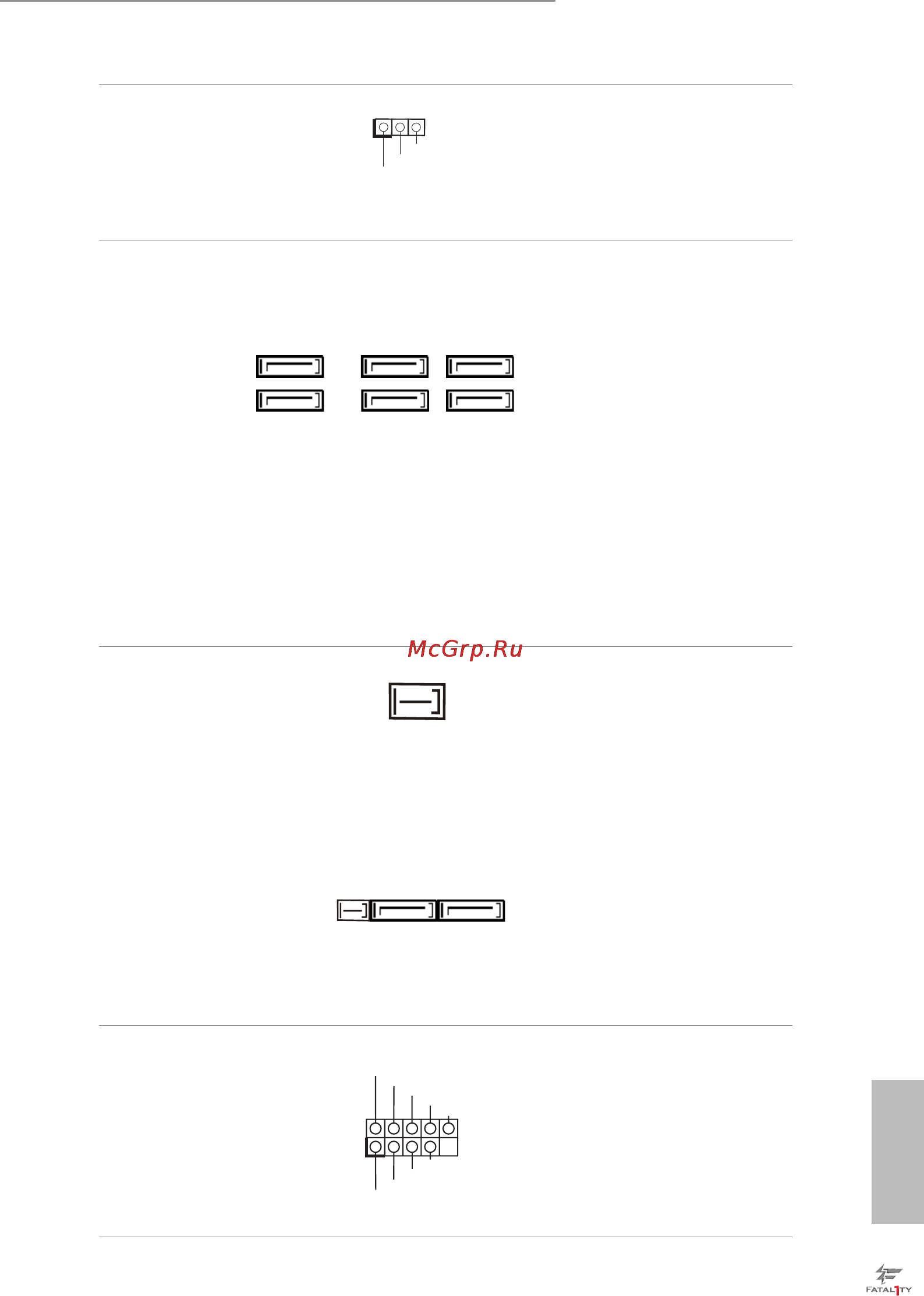

Power LED Header
(3-pin PLED1)
(see p.6, No. 17)
Please connect the chassis
power LED to this header
to
indicate the system’s
power status.
Serial ATA3 Connectors
(SATA3_0:
see p.6, No. 14)
(SATA3_1:
see p.6, No. 9)
(SATA3_2:
see p.6, No. 10)
(SATA3_3:
see p.6, No. 13)
(SATAE_4:
see p.6, No. 11)
(SATAE_5:
see p.6, No. 11)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
e SATAE_4, SATAE_5
are shared with the SATA
Express connector.
Serial ATA Express
Connector
(SATAE:
see p.6, No. 11)
Please connect either
SATA or PCIe storage
devices to this connector.
e SATA Express
connector is shared with
the SATAE_4, SATAE_5
and the M.2_SSD (NGFF)
Socket 3.
*e SATA Express
interface is a combination
of SATAE, SATAE_4, and
SATAE_5.
USB 2.0 Headers
(9-pin USB4_5)
(see p.6, No. 15)
(9-pin USB6_7)
(see p.6, No. 16)
Besides four USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
1
PLED+
PLED+
PLED-
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_2SATA3_0 SATA3_1
SATAE_4SATA3_3 SATAE_5
