Fatal1ty Z97 Killer Series
35
English

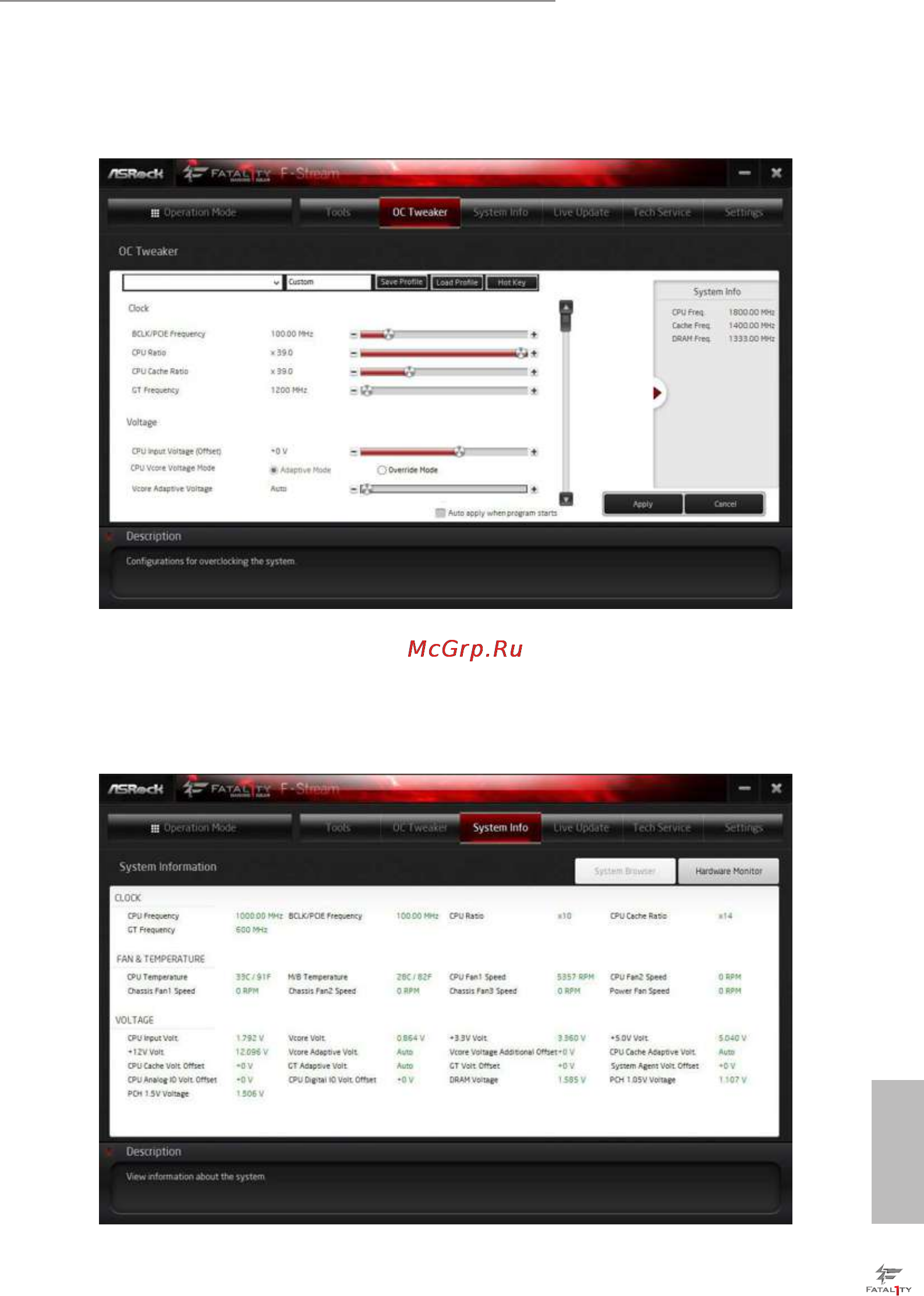

OC Tweaker
Congurations for overclocking the system.
System Info
View information about the system.
*e System Browser tab may not be available for certain models.
