ASRock z97 pro4 [81/99] Intel rapid start technology
![ASRock z97 pro4 [81/99] Intel rapid start technology](/views2/1159425/page81/bg51.png)
75
English
Z97 Pro4

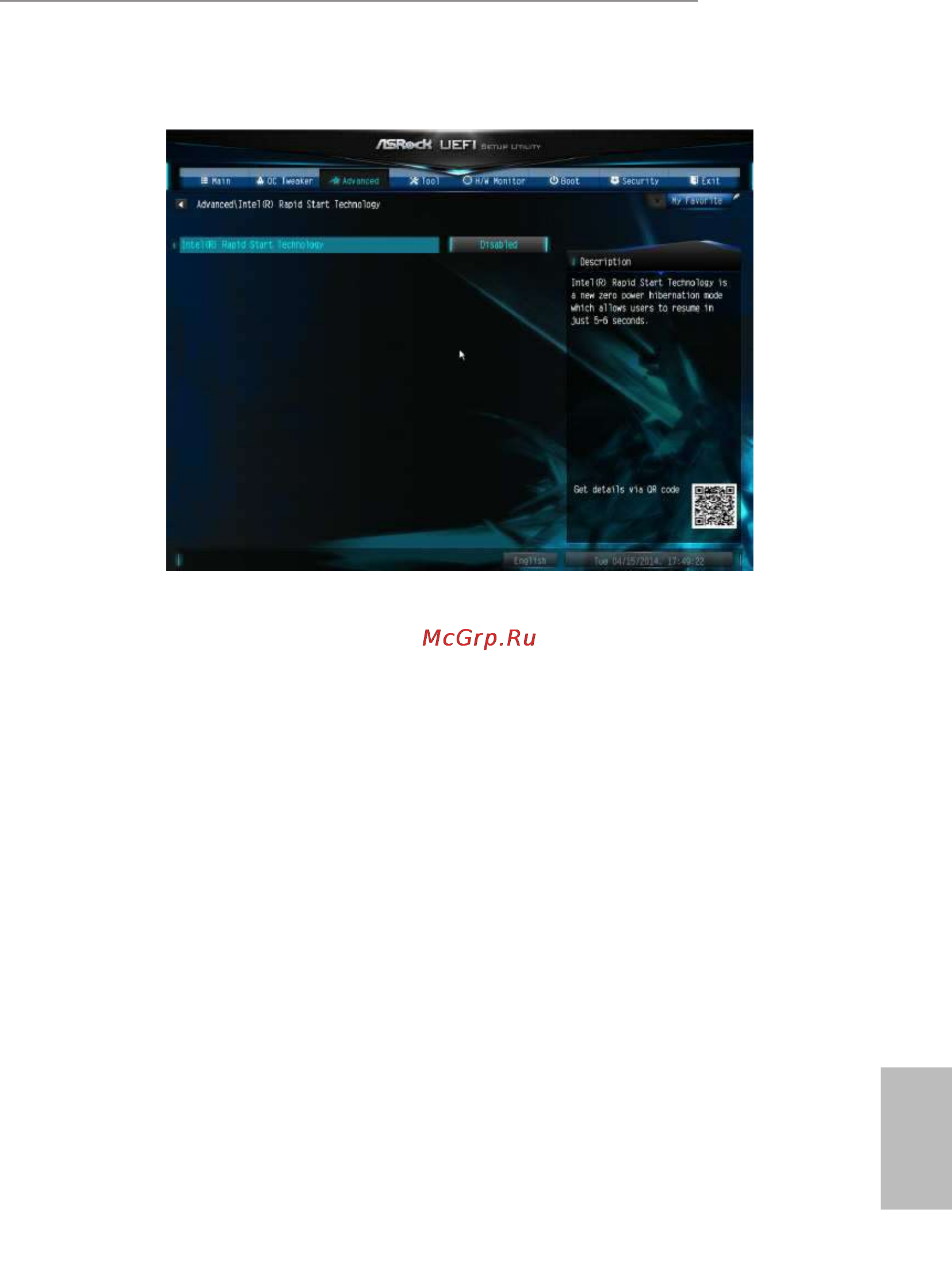

4.4.4 Intel® Rapid Start Technology
Intel
®
Rapid Start Technology
Intel® Rapid Start Technology is a new zero power hibernation mode which allows
users to resume in just 5-6 seconds.
