Q2900M
7
English

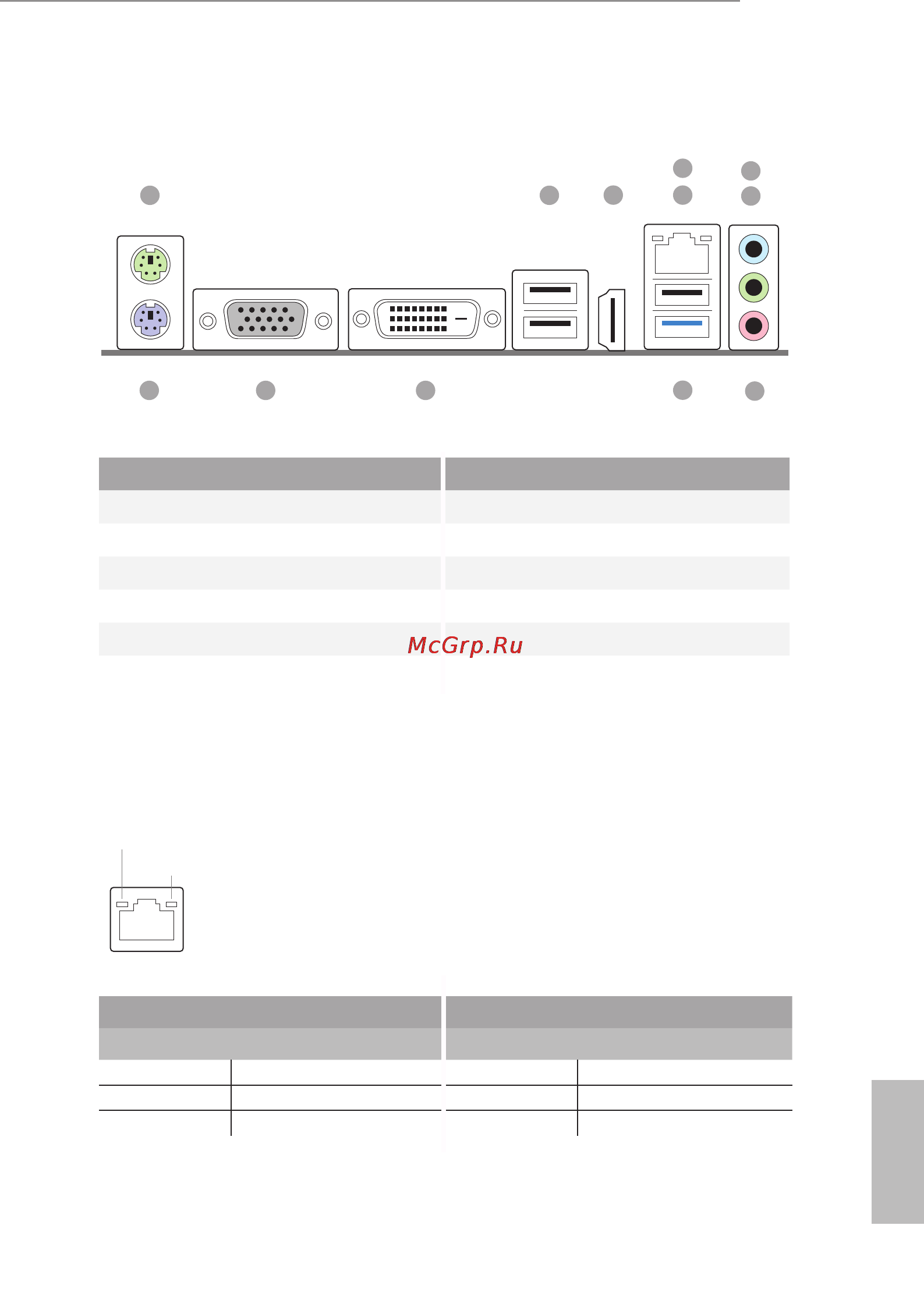

1.4 I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 7 Front Speaker (Lime)
2 USB 2.0 Ports (USB_23) 8 Microphone (Pink)
3 HDMI Port 9 USB 3.0 Port (USB1)
4 LAN RJ-45 Port* 10 DVI-D Port
5 USB 2.0 Port (USB0) 11 D-Sub Port
6 Line In (Light Blue) 12 PS/2 Keyboard Port
1 2
1012 11
9
3 5
4
6
7
8
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
Of No Link Of 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
