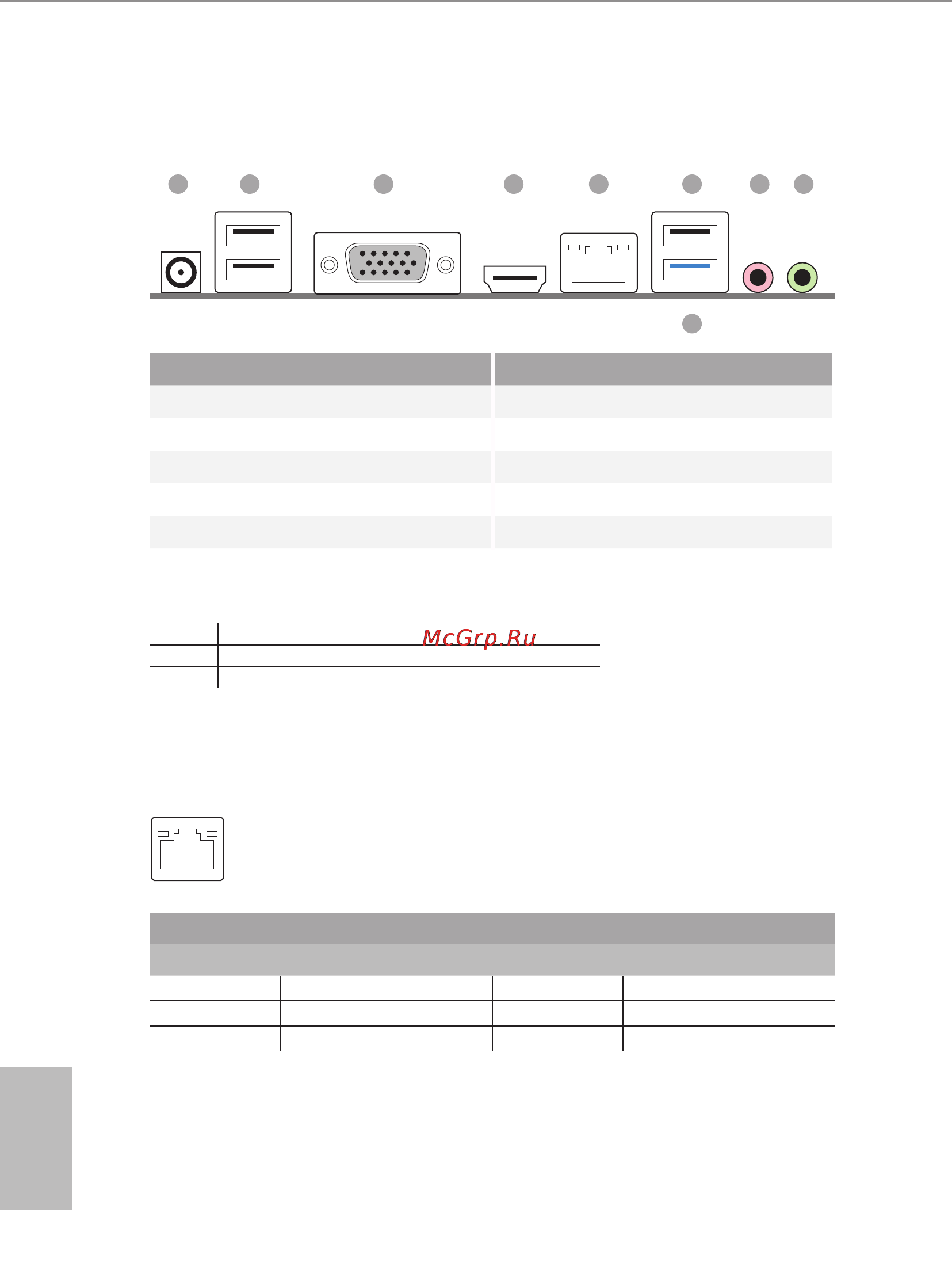

1.4 I/O Panel

No. Description No. Description

1 DC Jack* 6 USB 2.0 Ports (USB_0)

2 USB 2.0 Ports (USB_23) 7 Microphone (Pink)

3 D-Sub Port 8 Front Speaker (Lime)

4 HDMI Port (HDMI1) 9 USB 3.0 Ports (USB_1)

5 LAN RJ-45 Port**

* Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of

5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.

DELTA DELTA-ADP-150TB-150W/19V

HP HP-TBC-BA52-150W/19V

FSP FSP-FSP150-ABAN1-150W/19V

** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

Of No Link Of 10Mbps connection

Blinking Data Activity Of 100Mbps connection

On Link Orange 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

876

2 5431
