ASRock z170 oc formula [61/104] Setting
![ASRock z170 oc formula [61/104] Setting](/views2/1159489/page61/bg3d.png)
55
English
Z170 OC Formula

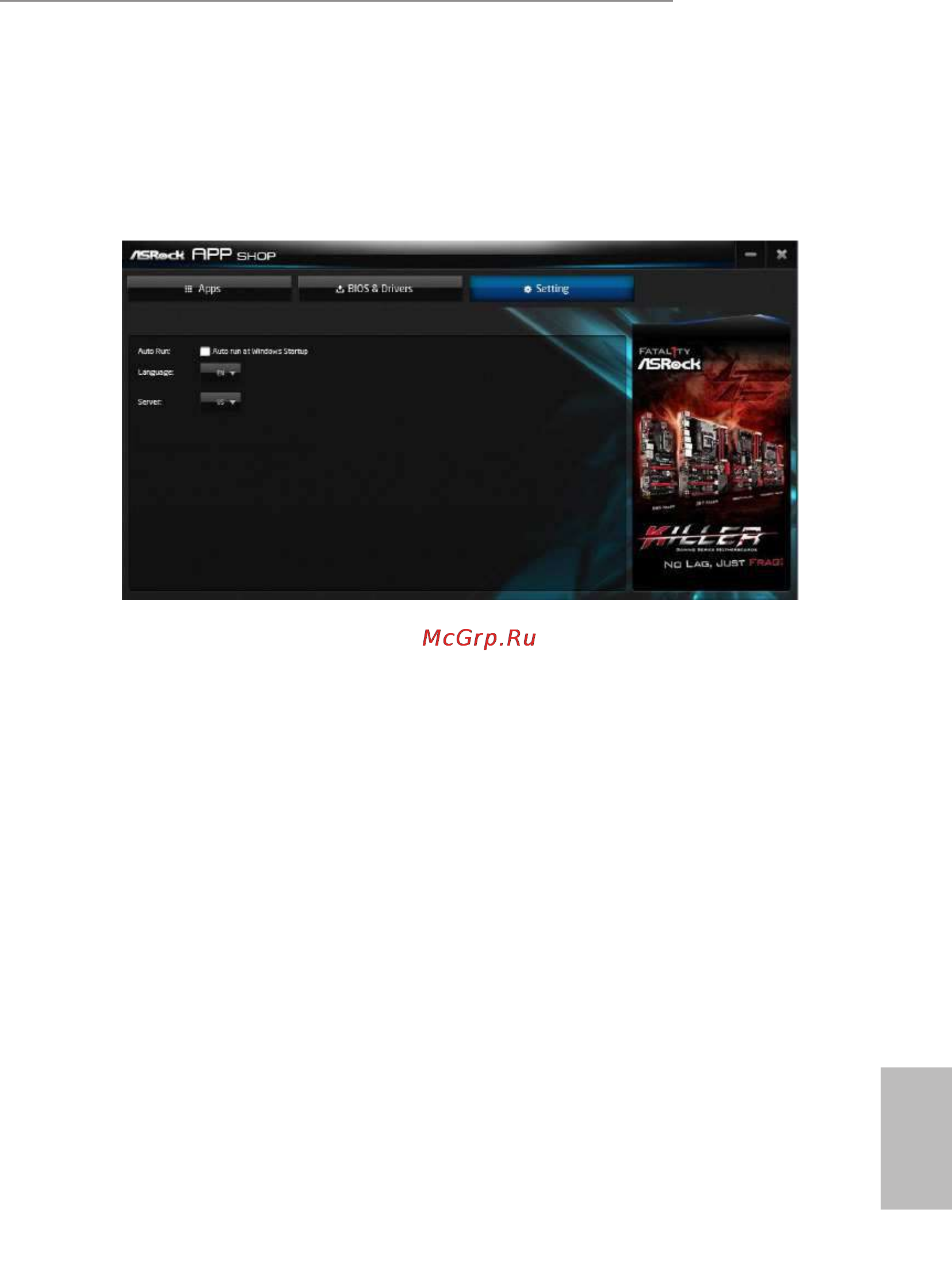

3.3.4 Setting
In the "Setting" page, you can change the language, select the server location, and
determine if you want to automatically run the ASRock Live Update & APP Shop
on Windows startup.
