ASRock z170 pro4 — установка M.2 SSD: пошаговое руководство по монтажу [33/84]
![ASRock z170 pro4 [33/84] English](/views2/1159547/page33/bg21.png)
28
English
BCDE
A

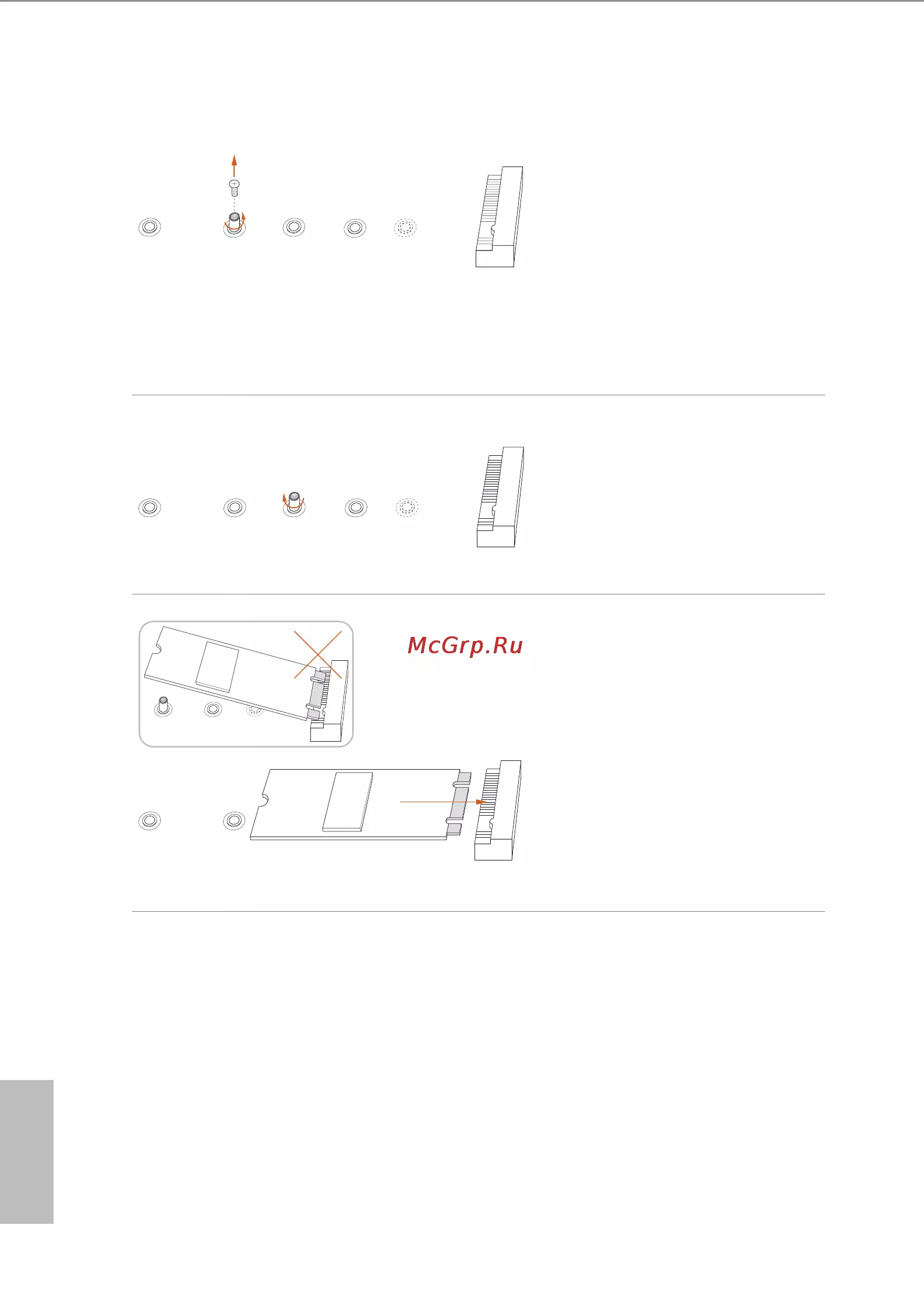

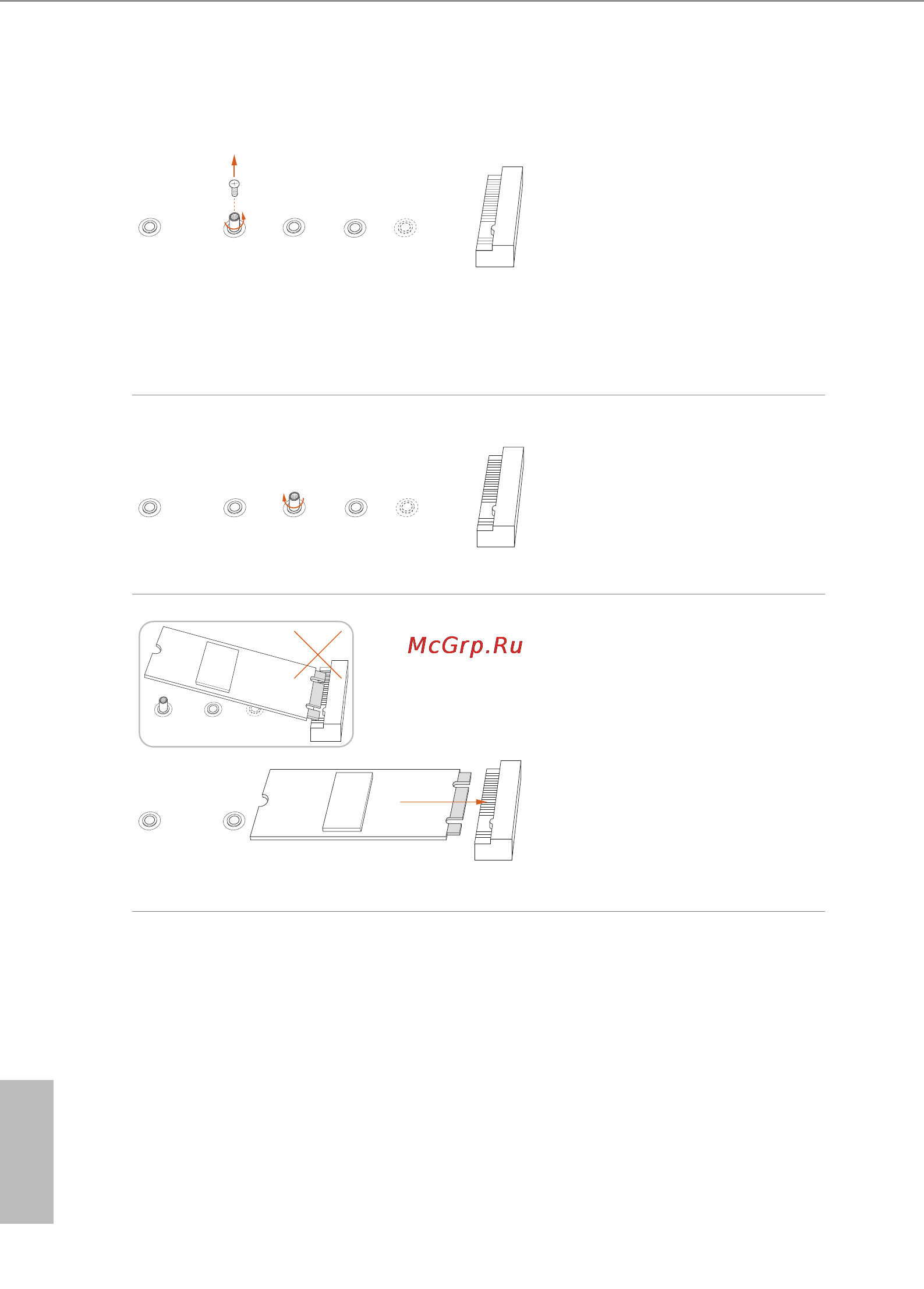

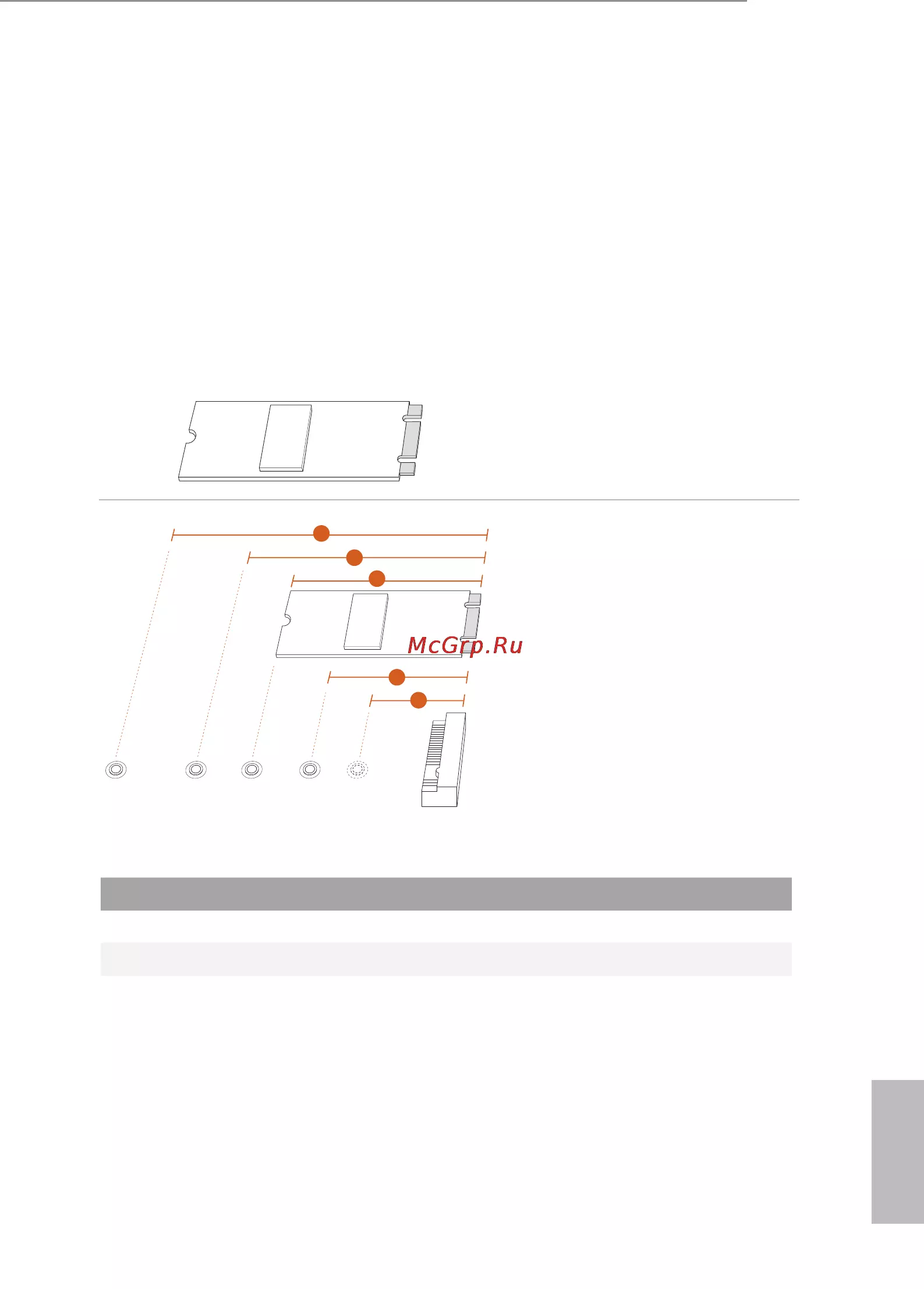

Step 3
Move the stando based on the
module type and length.
e stando is placed at the nut
location D by default. Skip Step 3
and 4 and go straight to Step 5 if you
are going to use the default nut.
Otherwise, release the stando by
hand.
BCDE
A
Step 4
Peel o the yellow protective lm on
the nut to be used. Hand tighten the
stando into the desired nut location
on the motherboard.
BC
A
ABCDE

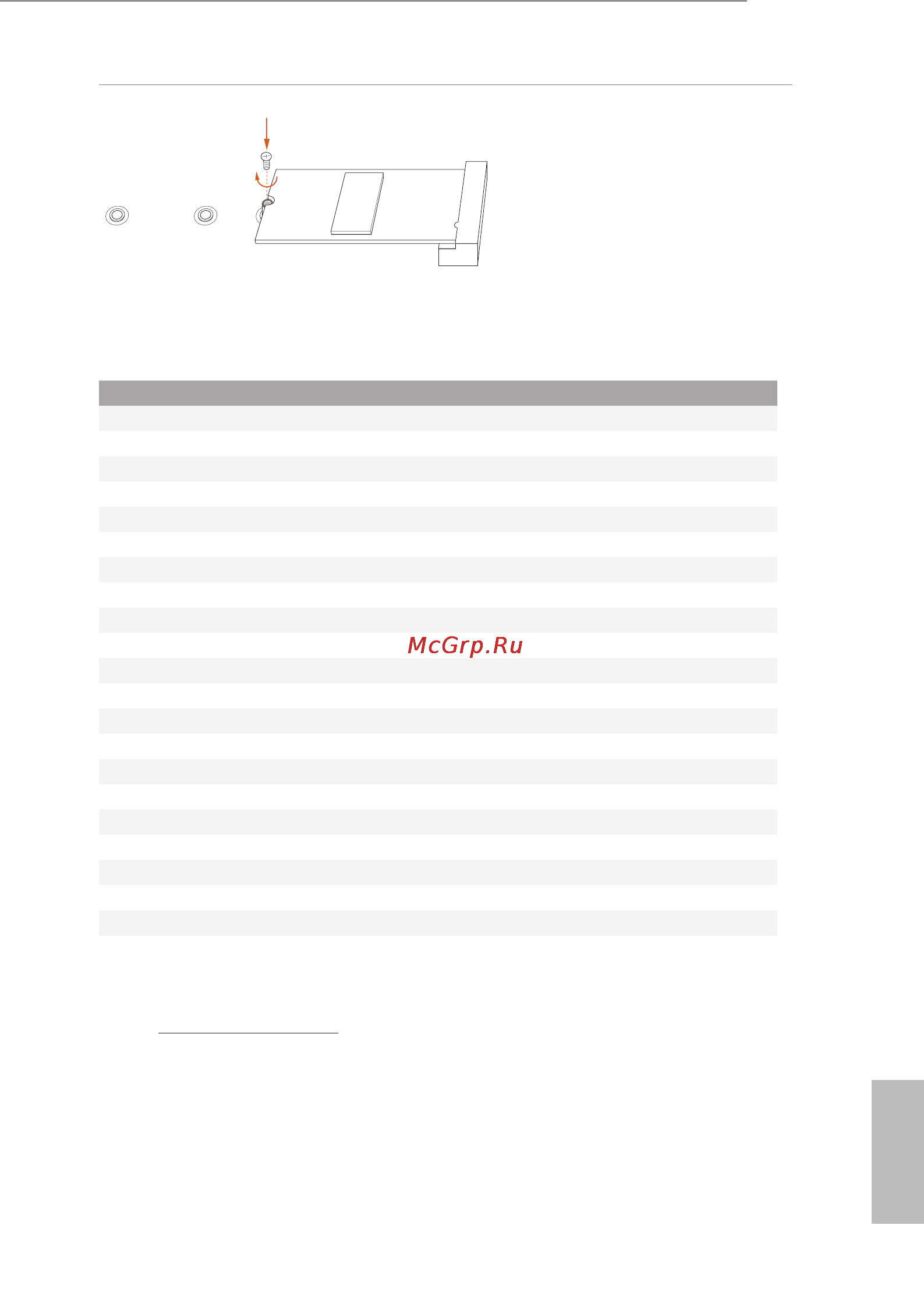

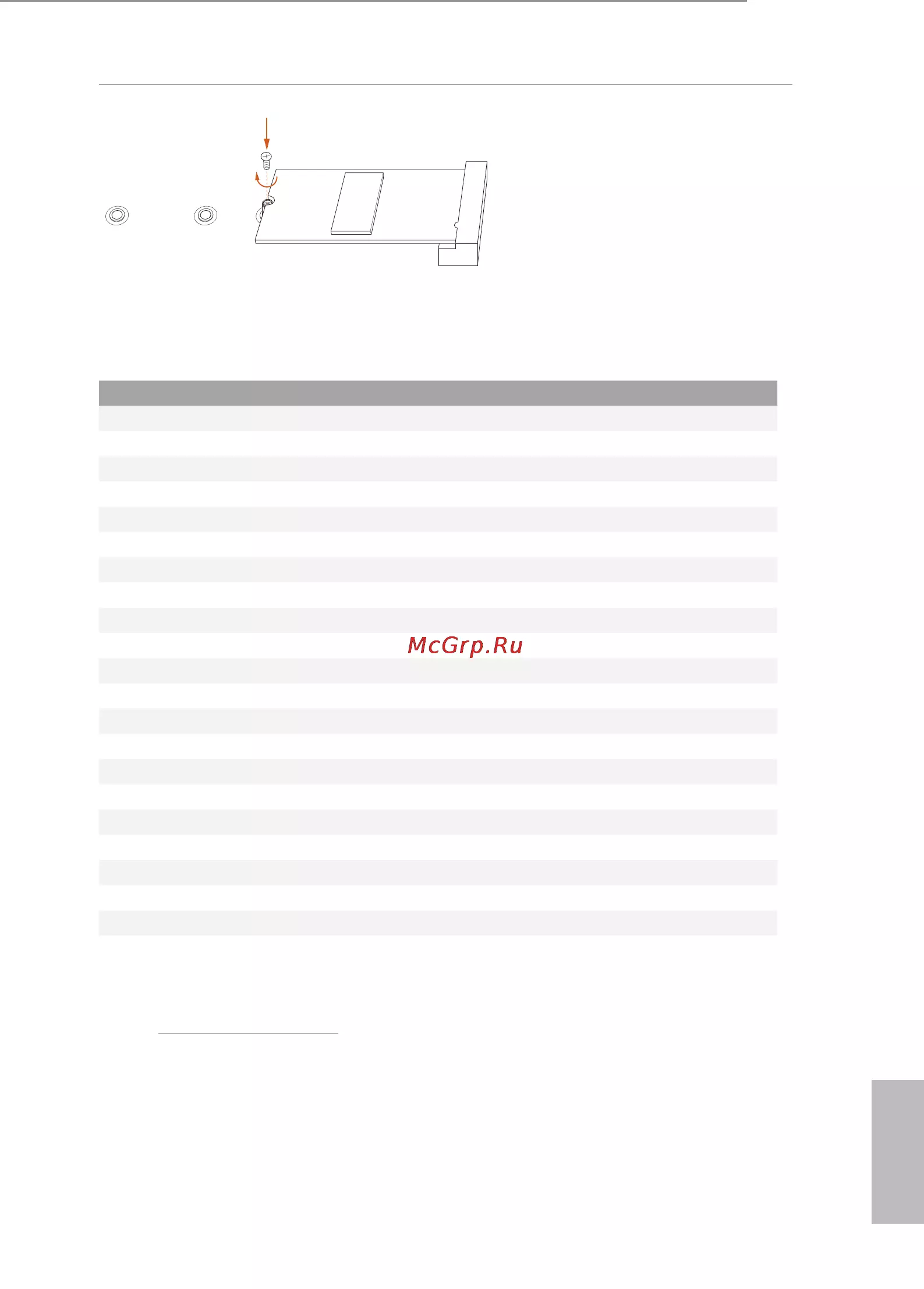

Step 5
Align and gently insert the M.2
(NGFF) SSD module into the M.2
slot. Please be aware that the M.2
(NGFF) SSD module only ts in one
orientation.
