48
English

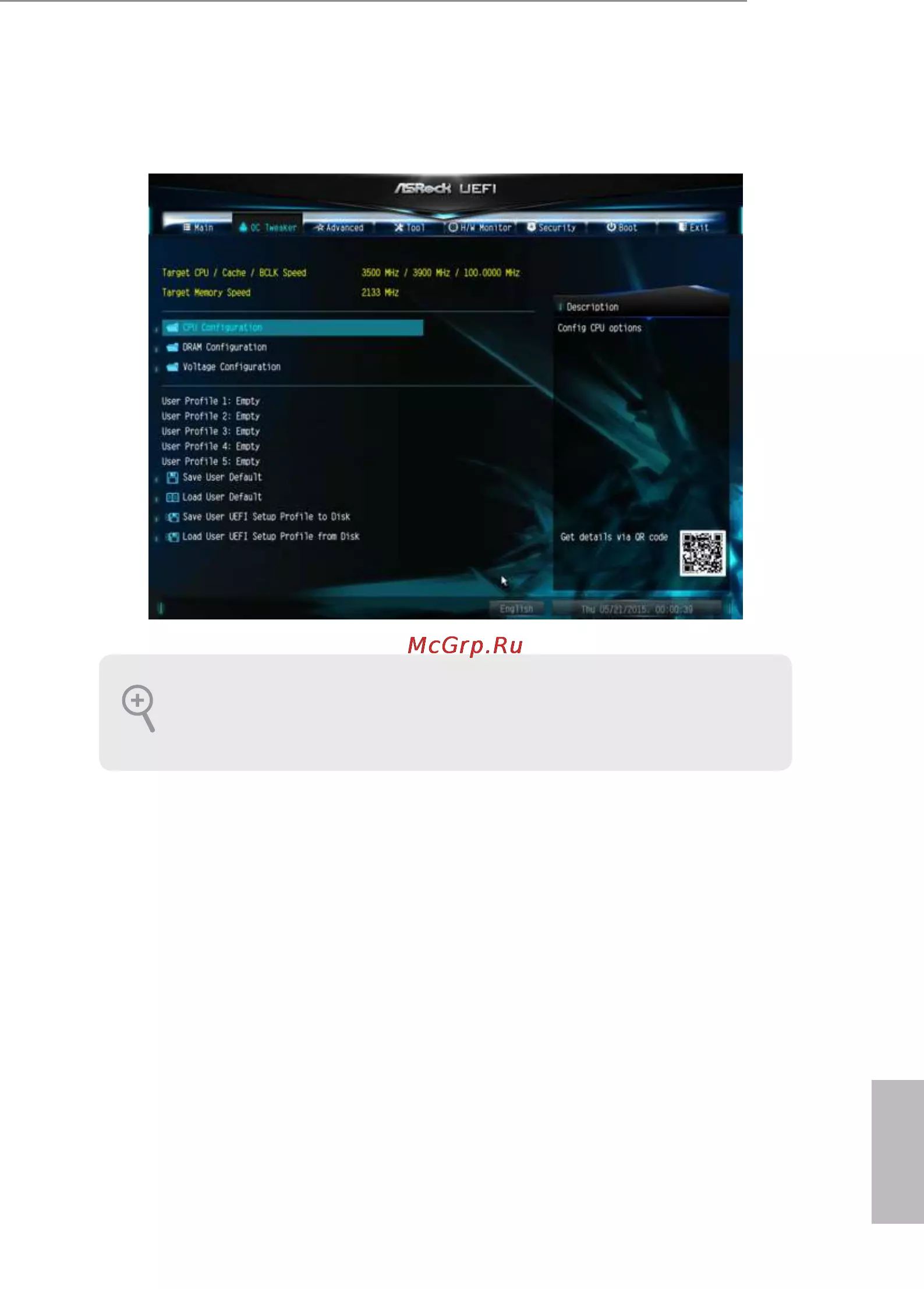

CPU Conguration
Multi Core Enhancement
Improve the system's performance by forcing the CPU to perform the highest
frequency on all CPU cores simultaneously. Disable to reduce power consumption .
CPU Ratio
e CPU speed is determined by the CPU Ratio multiplied with the BCLK.
Increasing the CPU Ratio will increase the internal CPU clock speed without
aecting the clock speed of other components.
CPU Cache Ratio
e CPU Internal Bus Speed Ratio. e maximum should be the same as the CPU
Ratio.
Minimum CPU Cache Ratio
Set the minimum CPU Internal Bus Speed Ratio.
BCLK Frequency
e CPU speed is determined by the CPU Ratio multiplied with the BCLK.
Increasing the BCLK will increase the internal CPU clock speed but also aect the
clock speed of other components.
BCLK Step
Congure the BCLK Step Value.
BCLK Reset Range
Congure the BCLK Reset Range.
Spread Spectrum
Enable Spread Spectrum to reduce electromagnetic interference for passing EMI
tests. Disable to achieve higher clock speeds when overclocking.
CPU Amplitude
Congure the CPU Amplitude.
Boot Performance Mode
Select the performance state that the BIOS will set before OS hando.
Reliability Stress Restrictor
Disable or Enable Reliability Stress Restrictor feature.
