ASRock n3150dc-itx [12/56] I o panel
![ASRock n3150dc-itx [12/56] I o panel](/views2/1159590/page12/bgc.png)
7
English
1 2 3
101114 13
89
5
4
7
6
15 12

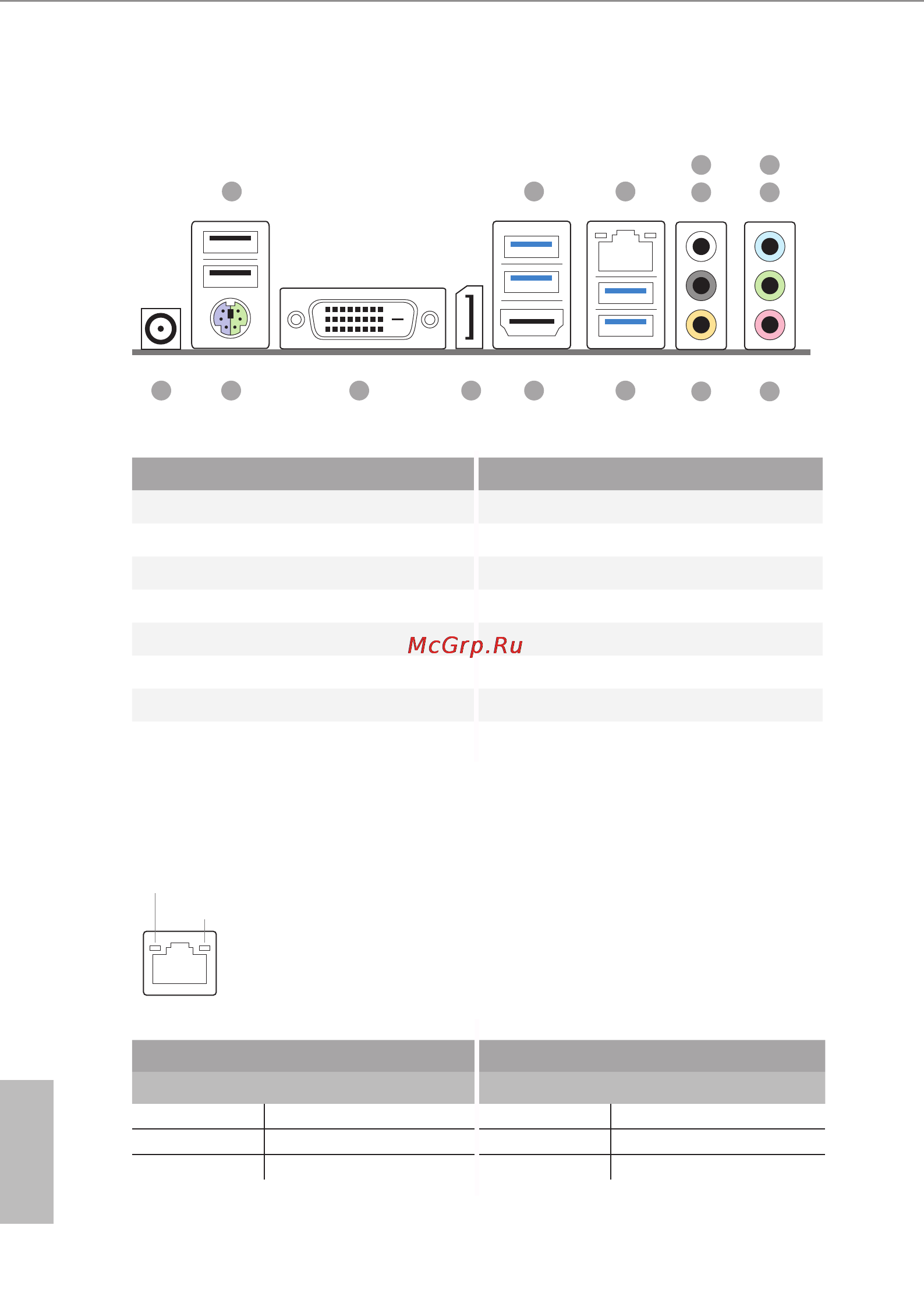

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB01) 9 Central / Bass (Orange)
2 USB 3.0 Ports (USB3_5_6) 10 USB 3.0 Ports (USB3_1_2)
3 LAN RJ-45 Port* 11 HDMI Port
4 Side Speaker (Gray) 12 DisplayPort 1.1a
5 Rear Speaker (Black) 13 DVI-D Port
6 Line In (Light Blue) 14 PS/2 Mouse/Keyboard Port
7 Front Speaker (Lime)** 15 DC Jack***
8 Microphone (Pink)
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
Of No Link Of 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
