ASUS Z9PE-D16 Series 6-21

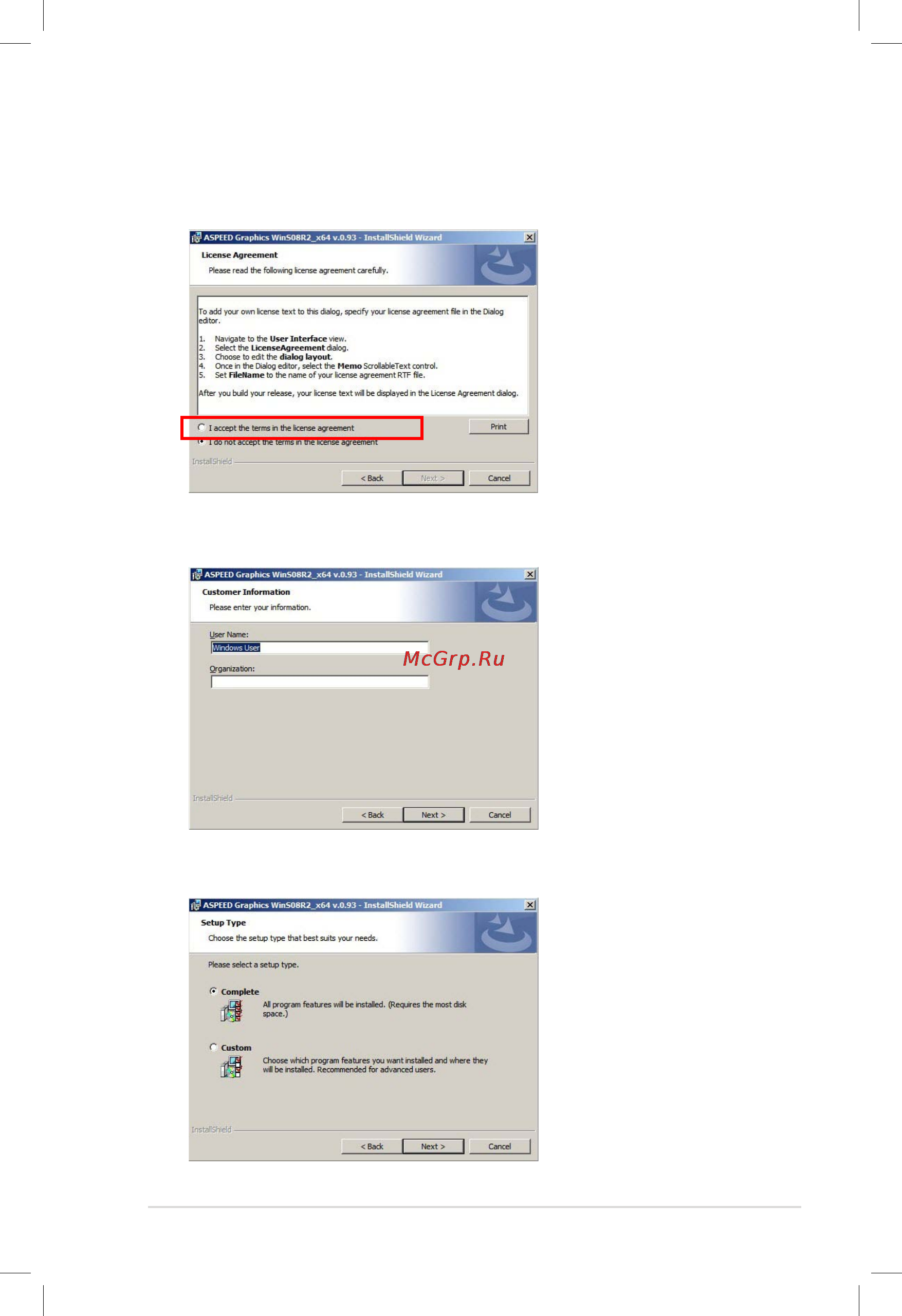

6. Enter the user information and click

to continue.

7. Select a setup type and click

to continue.

5. Toggle

I accept the terms in the license agreement

and click

continue.
