ASUS B75M-A
1-5
1.3.2 Screw holes

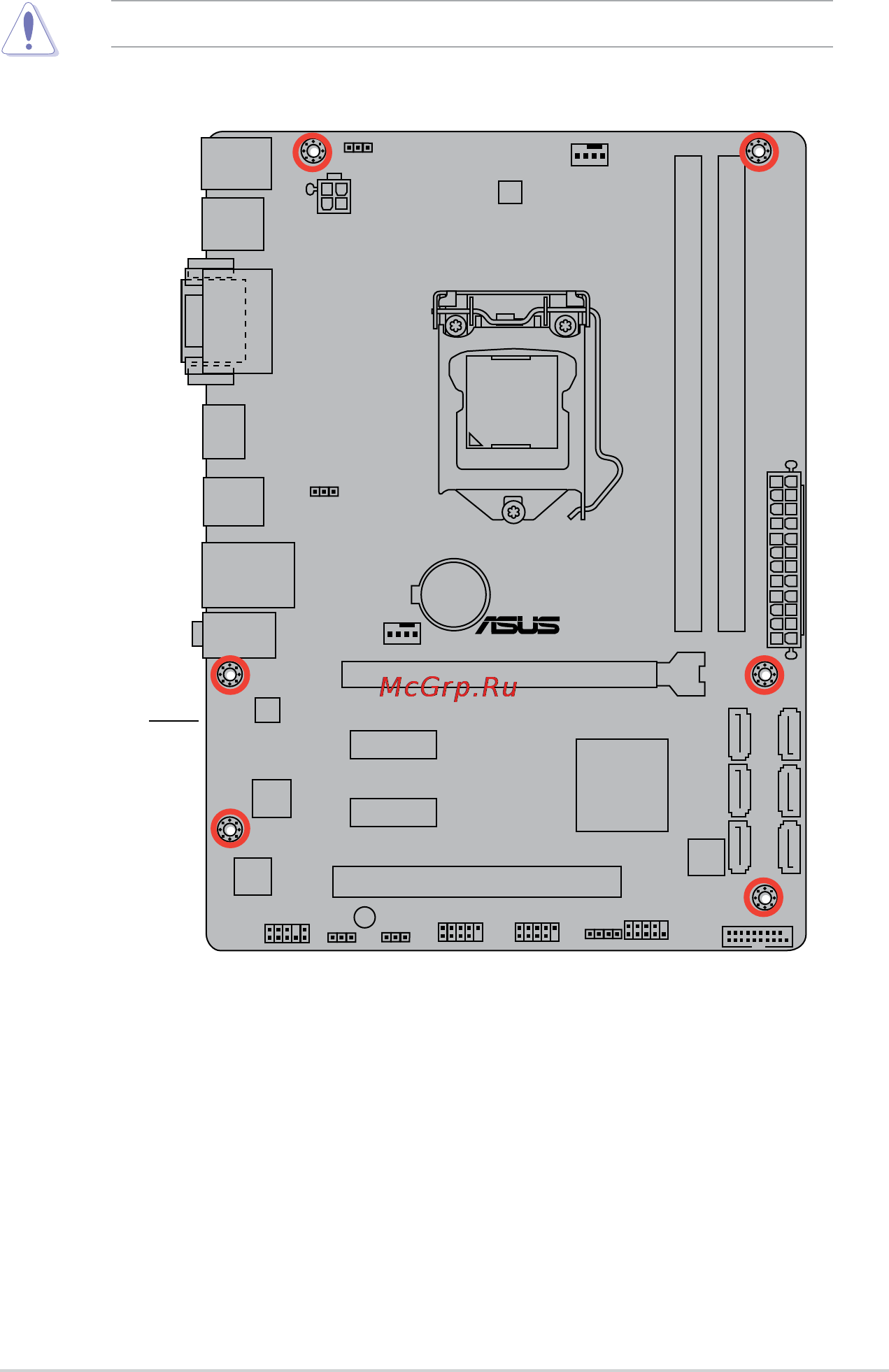

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
B75M-A
Place this side
towards the rear
of the chassis
