ASUS Z97M-PLUS
3-9
Chapter 3

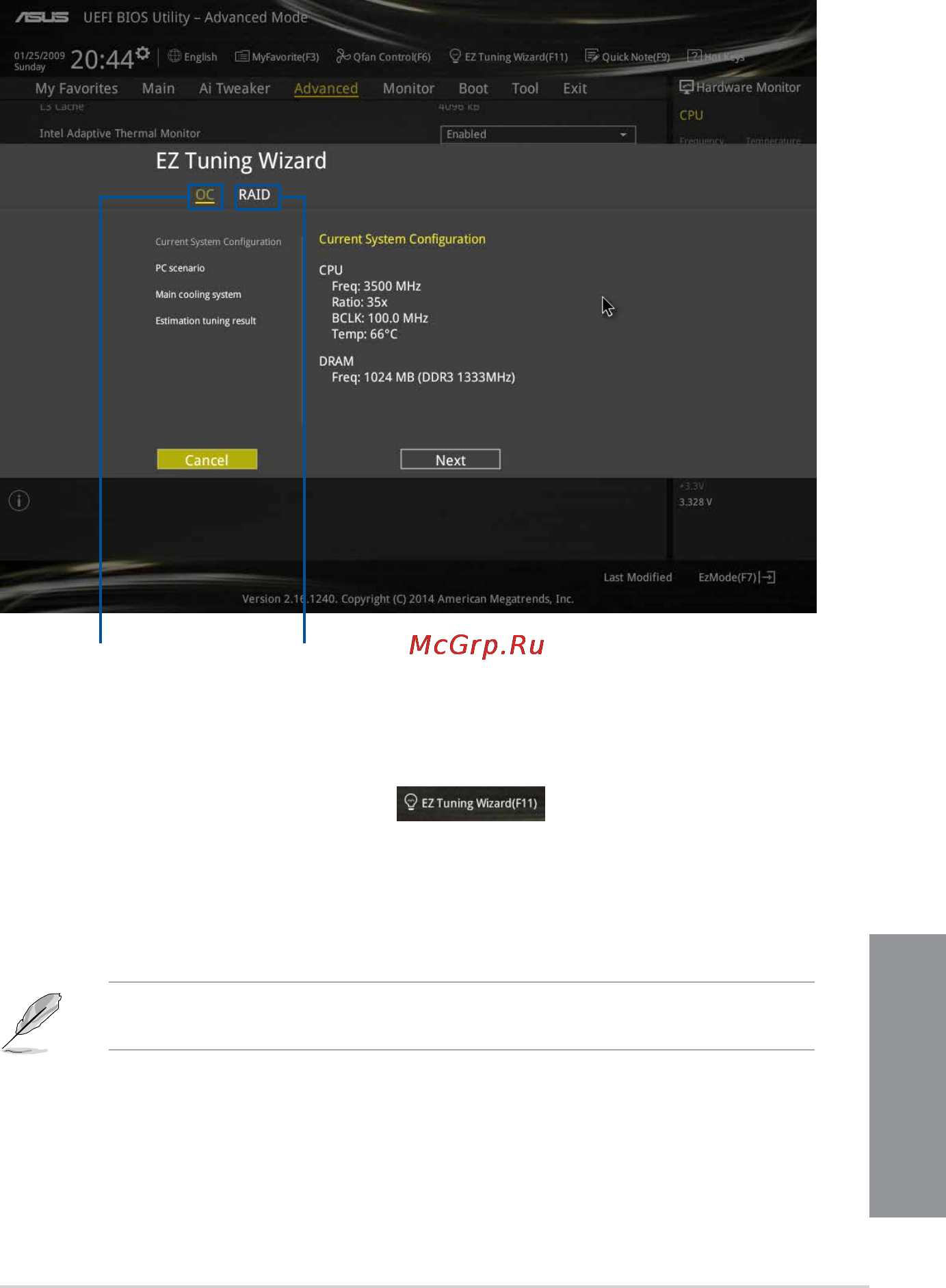

3.2.4 EZ Tuning Wizard
EZ Tuning Wizard allows you to overclock your CPU and DRAM, computer usage, and CPU
fan to their best settings. You can also easily set RAID in your system using this feature.
Tuning your system settings
To tune your settings:
1. Press <F11> on your keyboard or click
from the BIOS screen to open
EZ Tuning Wizard screen, then click Next.
2. Select a PC scenario Daily Computing or Gaming/Media Editing, then click Next.
3. Select the CPU fan type (Box cooler, Tower cooler, or Water cooler) that you
installed then click Next.
If you are not sure of the CPU fan type, click I’m not sure. The system automatically
detects the CPU fan type.
4. Click Next then click Yes to conrm auto-tuning.
System OC setup RAID setup
