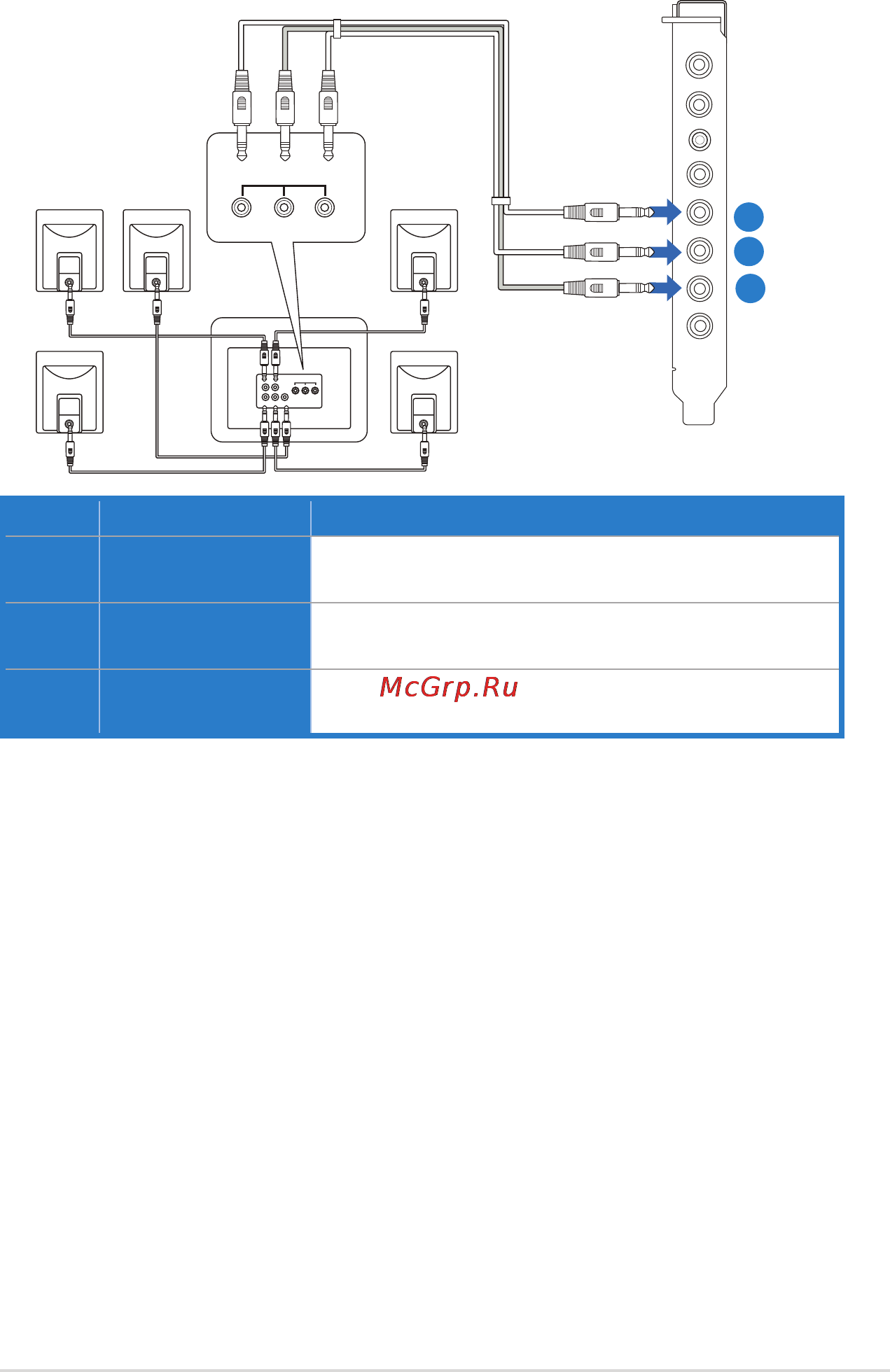

ASUS Xonar Phoebus
5.1 Speakers
Mic in
HP out
Box link
Line in
Front
Ctr / Sbw
Rear
Side /
SPDIF out
Side
Front
Center/
Subwoofer
AUDIO
INPUTS
No Item Description
1 Front Out
Connects to the Front input port of the 5.1 speakers with
the mini-jack cable.
2 Back Surround Out
Connects to the Back Surround input port with the mini-
jack cable.
3 Center/Subwoofer
Connects to the Center/Subwoofer input port of the 5.1
speakers with the mini-jack cable..
1
2
3
