ASUS A58M-E
2-13

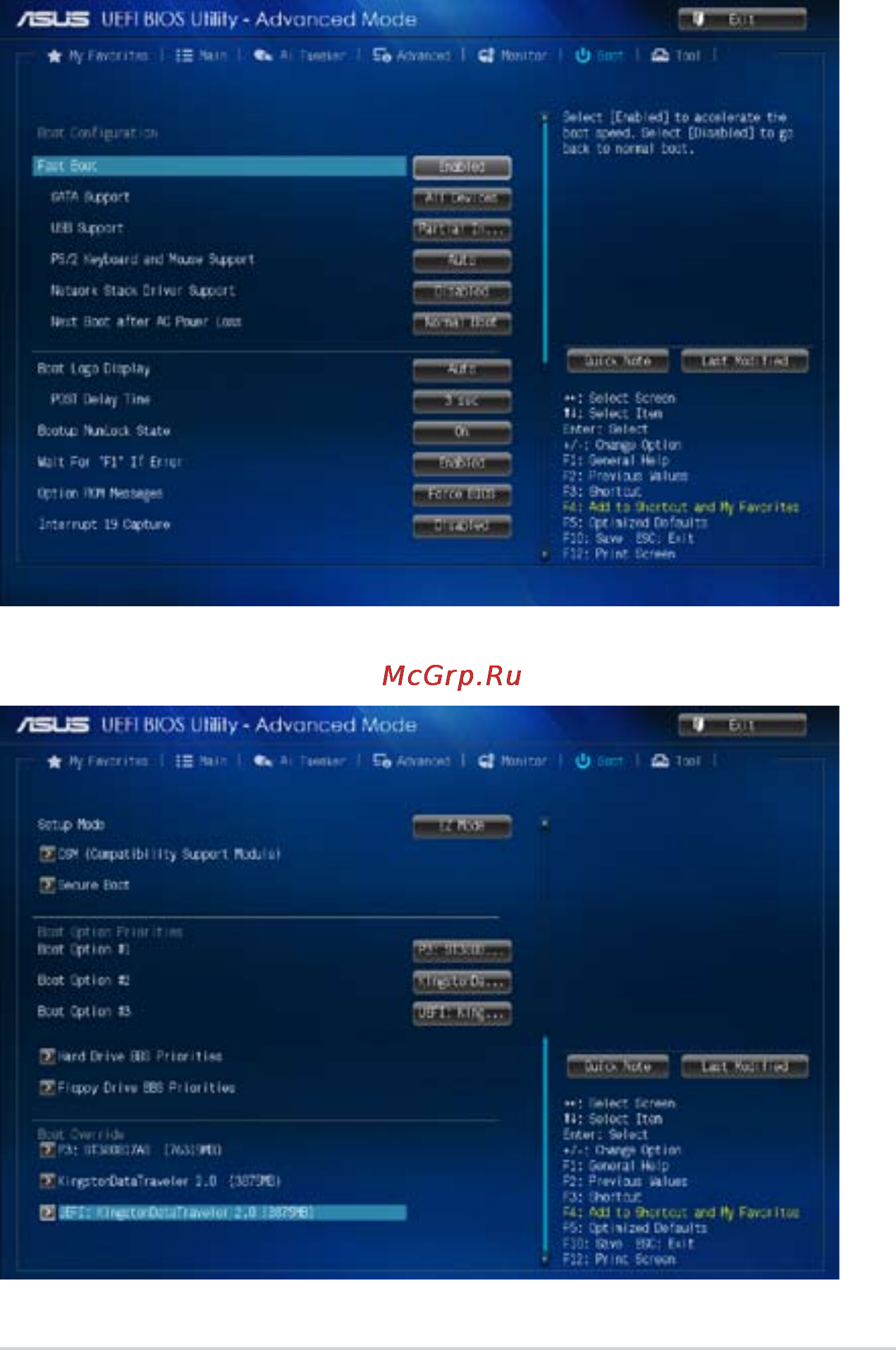

2.8 Boot menu
The Boot menu items allow you to change the system boot options.
Scroll down to display the other items.
