7-10

Chapter 7: Driver installation

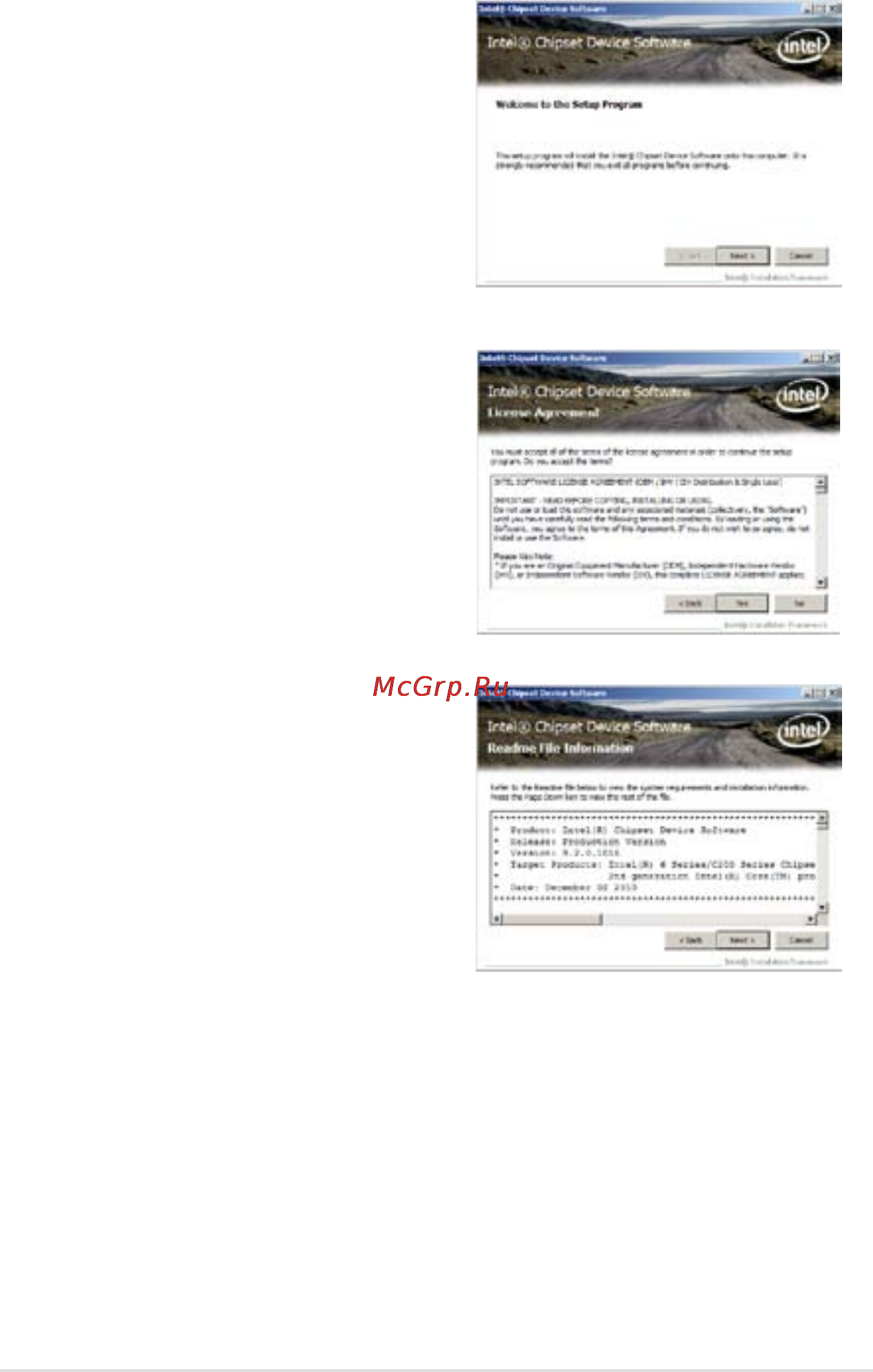

5. The Intel

Chipset Device Software

appears. Click Next to start the

installation.

Select

Yes

to accept the terms in

the

License Agreement

window to

continue the process

7. Read the Readme File information and

click Next to continue.
