Asus k555ld, 90nb0627-m05080 [33/130] One finger gestures

Notebook PC E-Manual

One-nger gestures

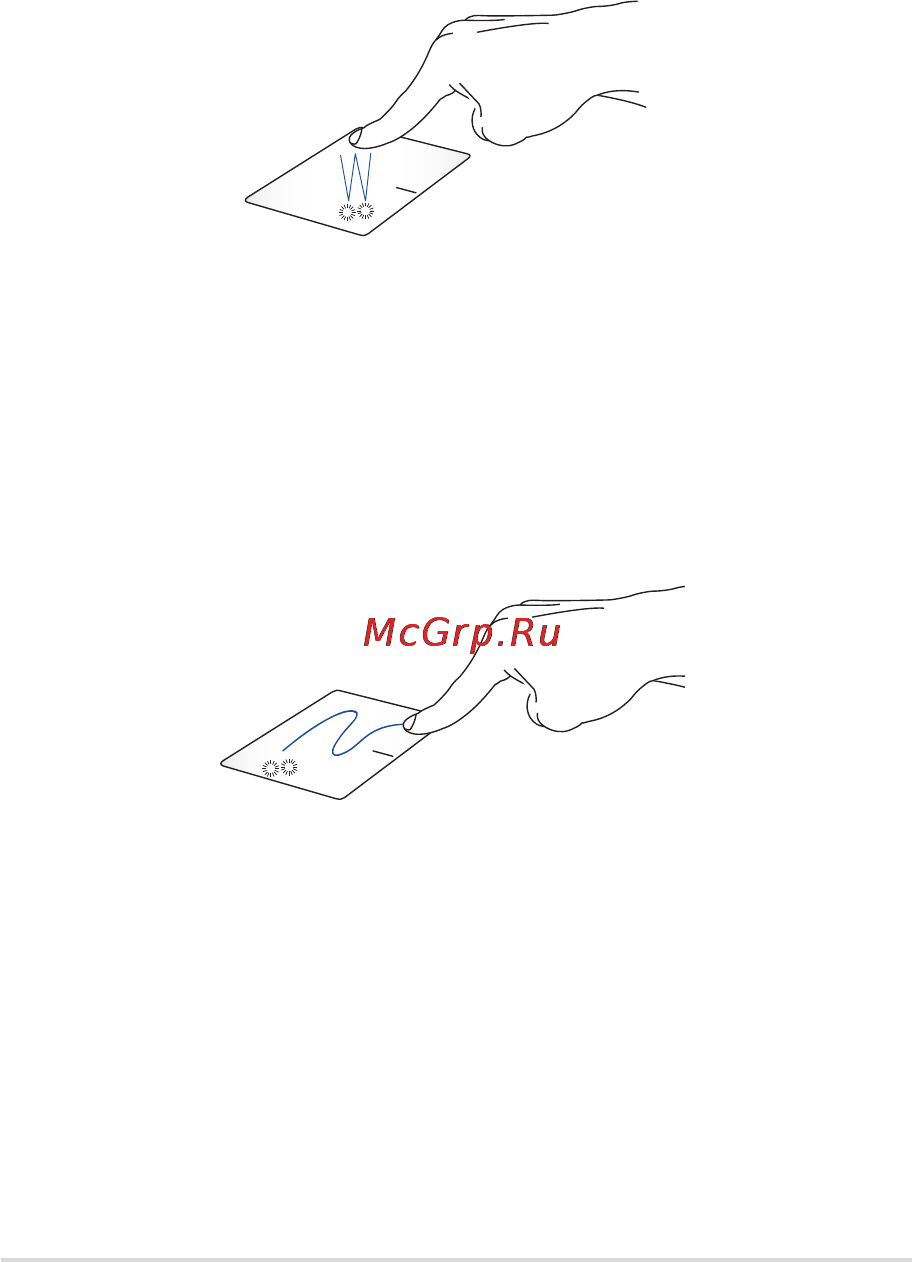

Tap/Double-tap

• IntheStartscreen,tapanapptolaunchit.

• InDesktopmode,double-tapanapplicationtolaunchit.

Drag and drop

Double-tap an item, then slide the same nger without lifting it o the

touchpad. To drop the item to its new location, lift your nger from the

touchpad.
