Asus k555ld, 90nb0627-m05080 [96/130] C align and insert the ram module into the ram module slot

Notebook PC E-Manual

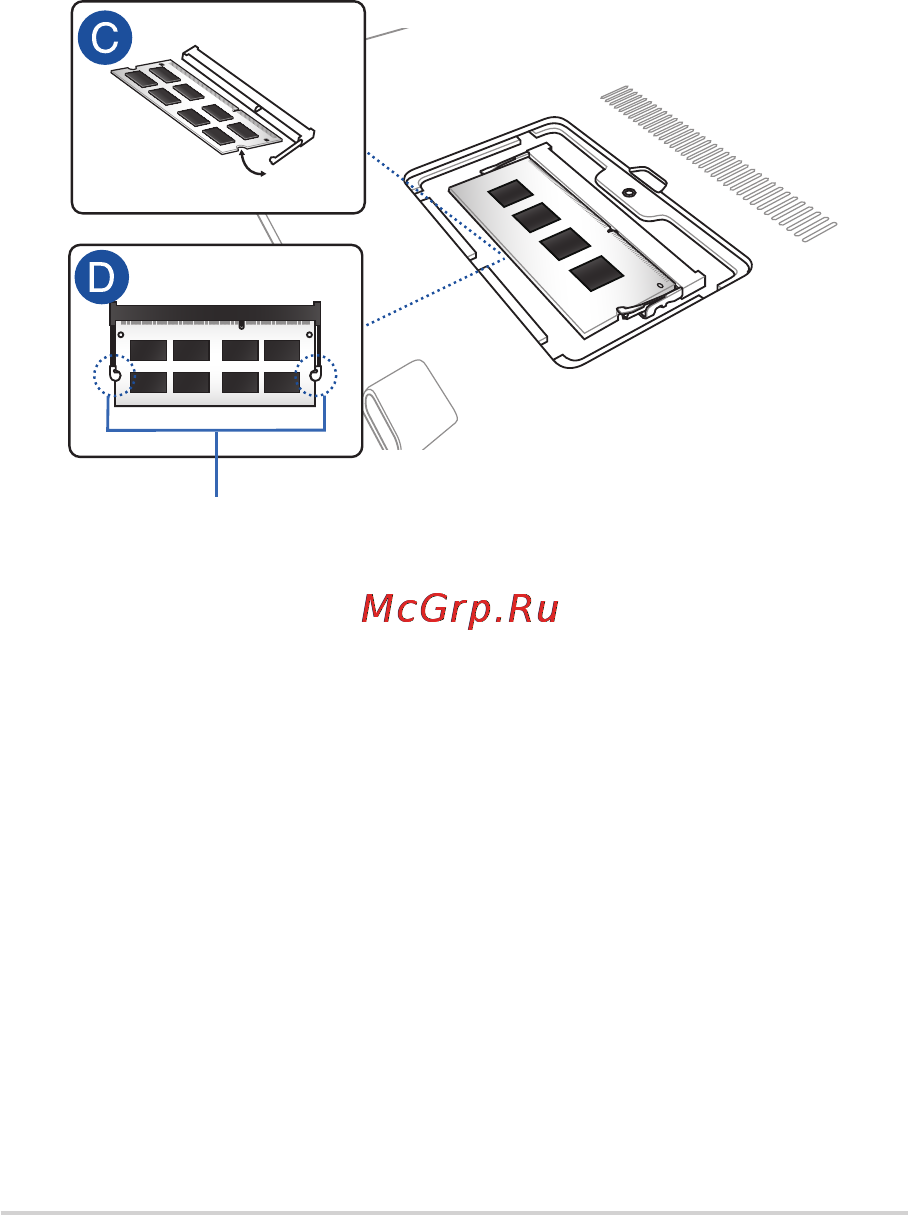

C. Align and insert the RAM module into the RAM module slot.

D. Push down the RAM module until it clicks in place

angle

notches
