Notebook PC E-Manual

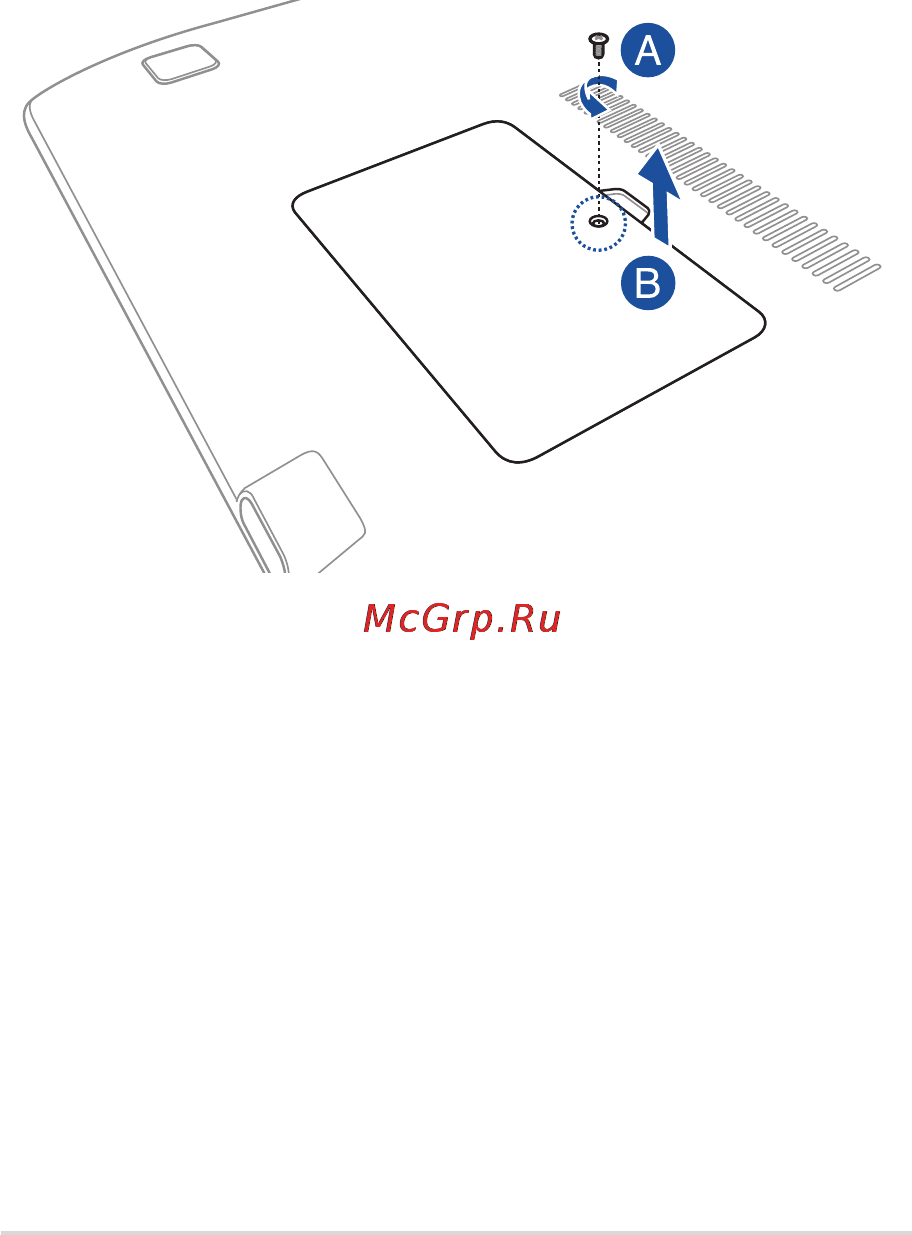

A. Loosen the screw of the Notebook PC’s compartment cover.

B. Pull out the compartment cover and remove it completely from

your Notebook PC.
