Notebook PC E-Manual

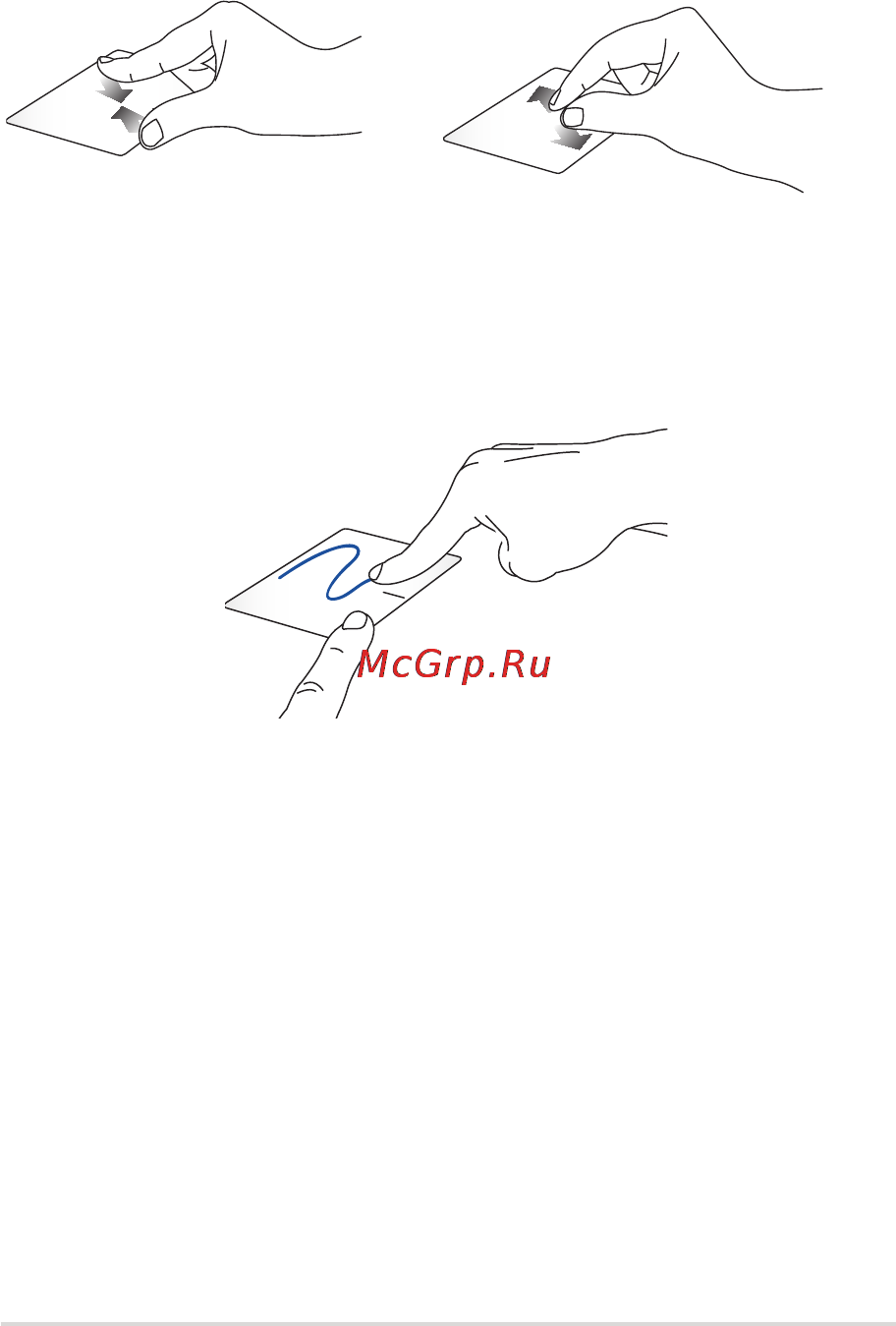

Zoom out Zoom in

Bring together your two ngers

on the touchpad.

Spread apart your two ngers on

the touchpad.

Drag and drop

Select an item then press and hold the left button. Using your other

nger, slide on the touchpad to drag the item, lift your nger o the

button to drop the item.
