Notebook PC E-Manual

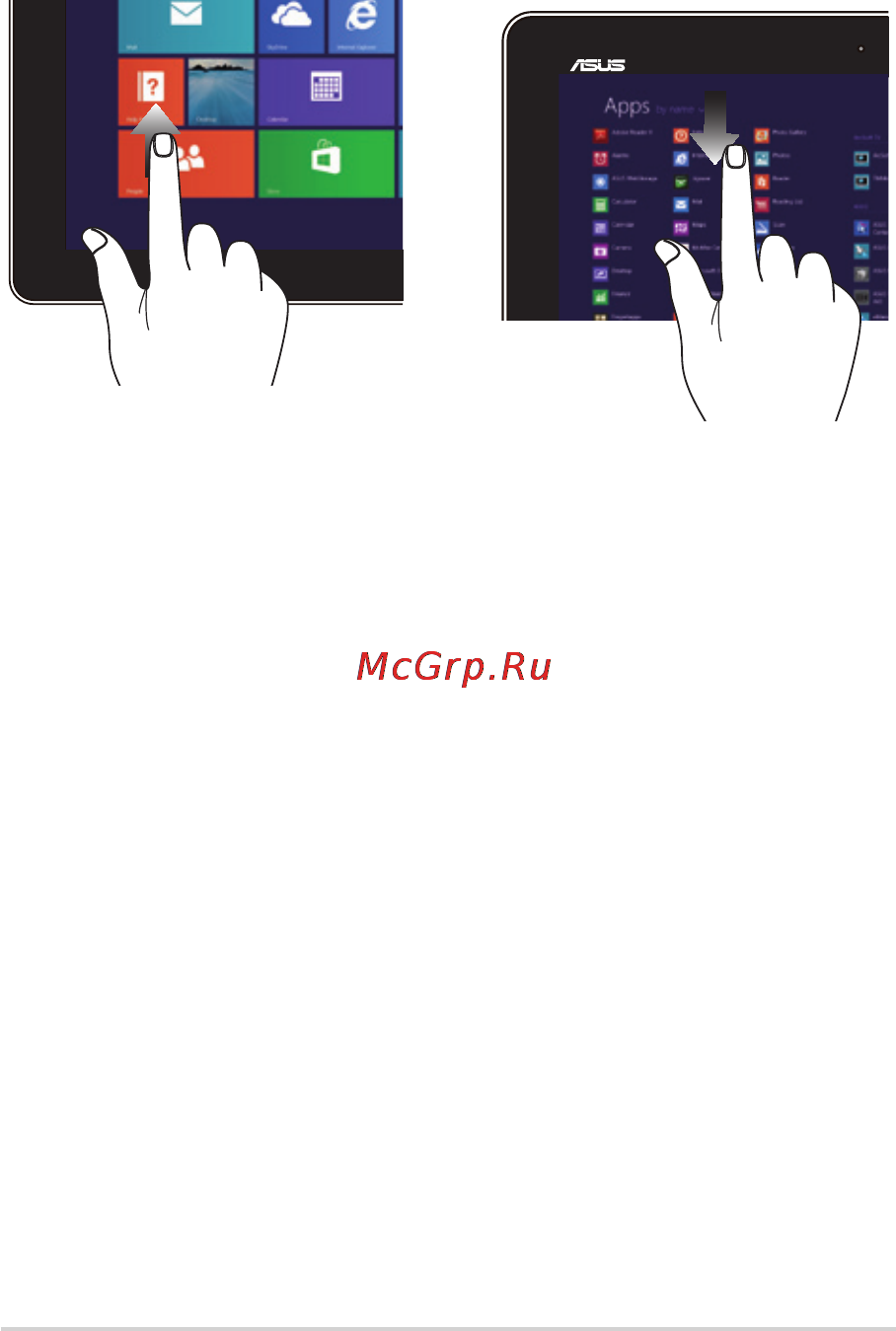

Swipe up Swipe down

Swipe up from the Start screen to

launch the Apps screen.

Swipe down from the Apps

screen to return to the Start

screen.
