Asus transformer book flip tp300ld, 90nb06t1-m02050 [43/124] Using the touch screen panel as a tablet

Notebook PC E-Manual

Using the touch screen panel as a

tablet

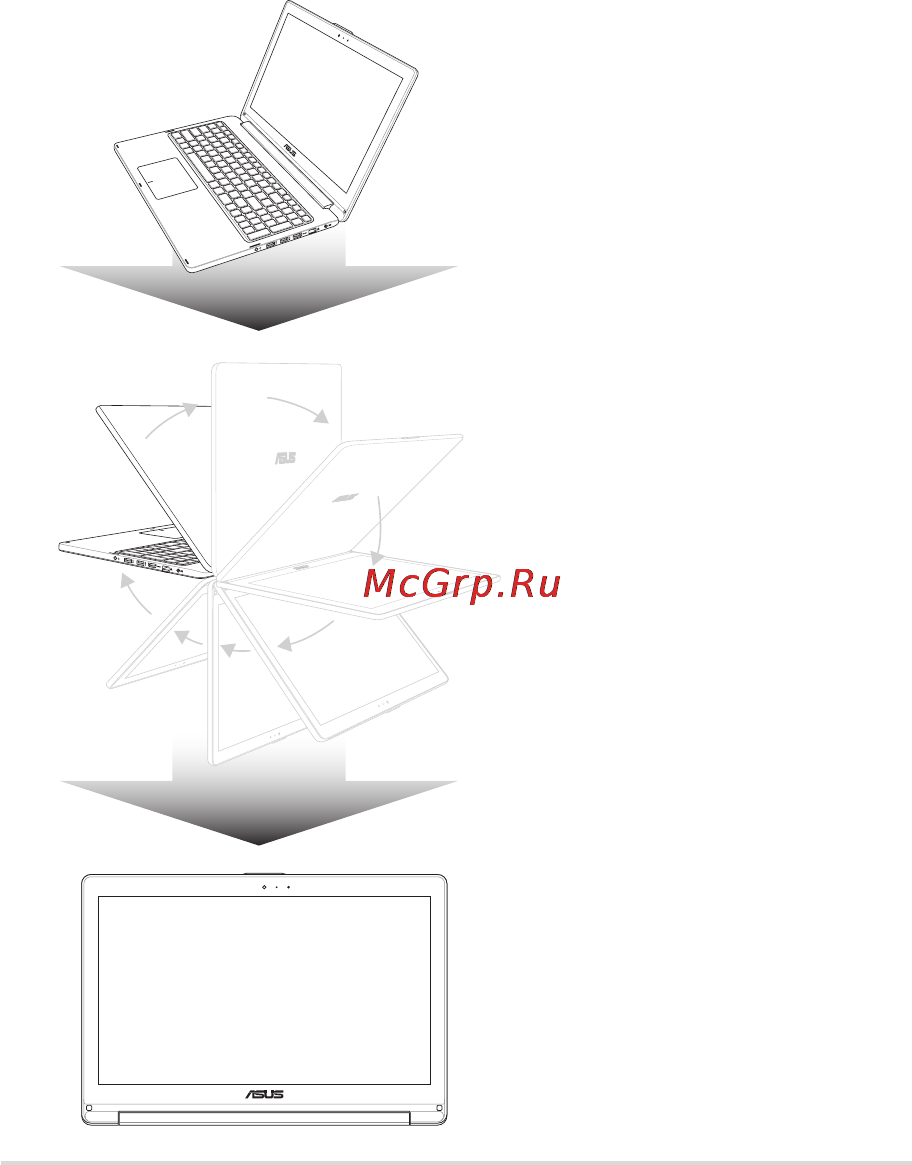

To use your Notebook PC’s touch screen panel as a tablet device, you

may adjust it all the way into a 360º angle as shown below.

Notebook PC mode

adjust to a 360º angle

tablet mode
