Notebook PC E-Manual

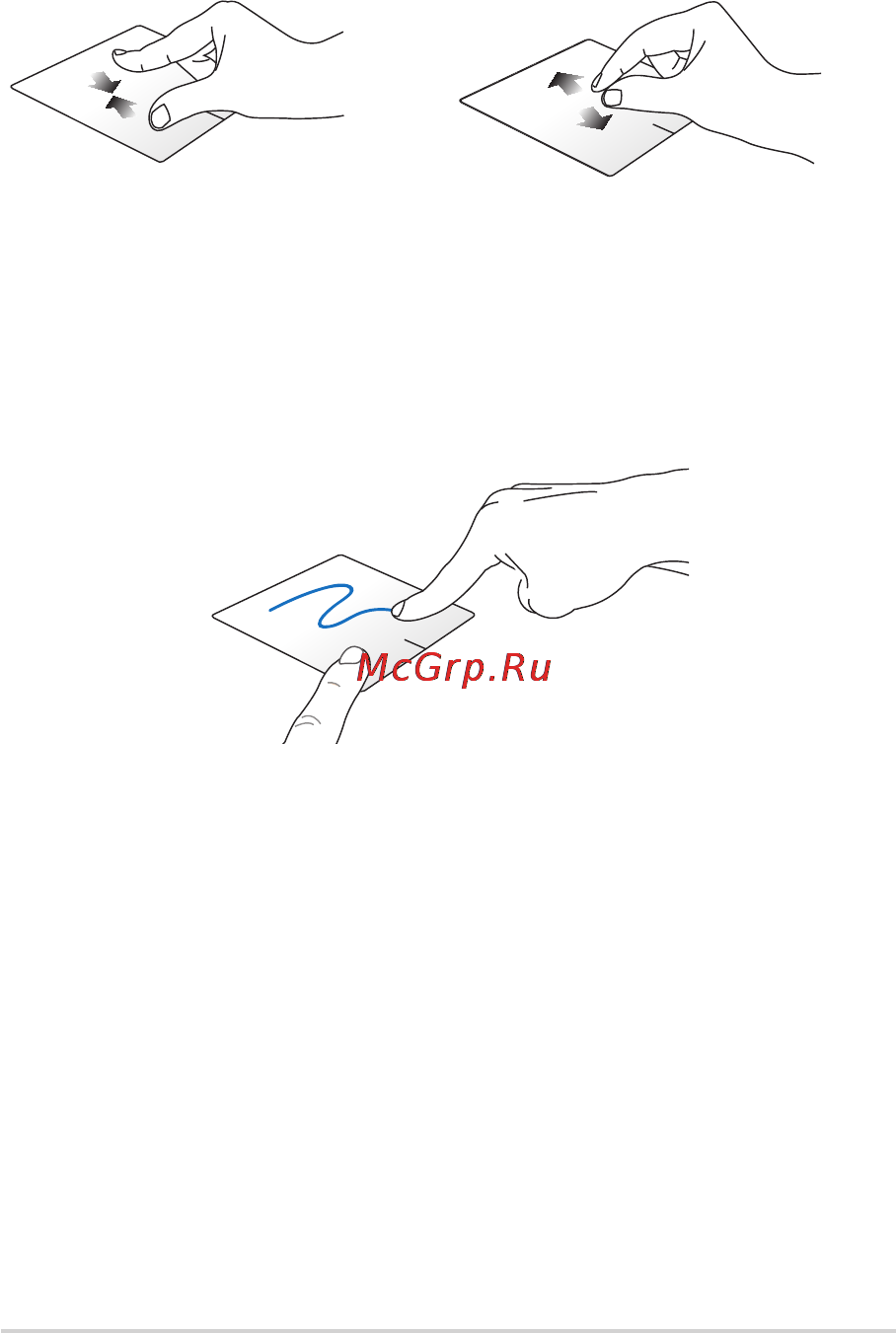

Zoom out Zoom in

Bring together your two ngers on

the touchpad.

Spread apart your two ngers on

the touchpad.

Drag and drop

Select an item then press and hold the left button. Using your other

nger, slide down the touchpad to drag and drop the item to a new

location.
